Sandvik Coromant
6427828
Sandvik Coromant 6427828
Specifications
| Center to Cutting Edge (Inch) | 1.72 |
|---|---|
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 2.56 |
| Size | 32 |
| Series | CoroCut QD |
| Bore Diameter (Metric) | 65 |
| Center to Cutting Edge (Metric) | 43.6 |

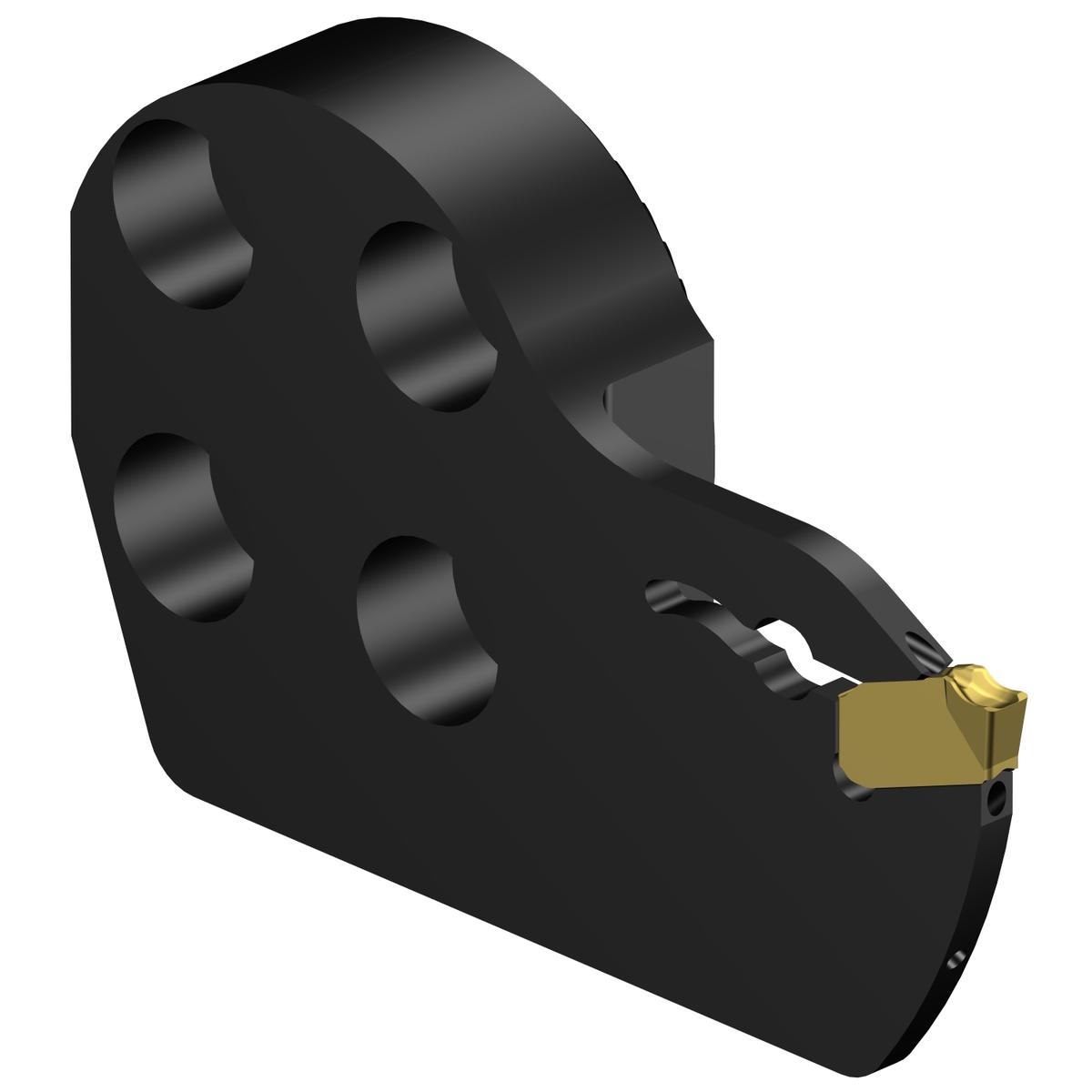

| Short Description | CoroCut® QD head for grooving |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 43.6 mm |
| Insert Style | QD-NF-0250-0002-CM |
| ANSI Code | SL-QD-RGF26C32 |
| Connection Diameter (Decimal) | 1.26 |
| Connection Diameter (Metric) | 32 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 1160.3 lbf/in2 |
| Workpiece Side Body Angle | 90 degrees |
| Overall Height (Decimal) | 0.004 |
| Overall Height (Metric) | 0.1 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Insert Seat Size Code | F |
| Country of Origin | Sweden |
| Base Item Number | 2061 |
| Max. Cutting Depth (Decimal) | 1.02 |
| Max. Cutting Depth (Metric) | 26 |
| Max. Hole Depth | 11 mm |
| Max. Hole Depth (Decimal) | 0.43 |
| Max. Hole Depth (Metric) | 11 |
| Max. Overhang (Decimal) | 0.43 |
| Max. Overhang (Metric) | 11 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.15 LB |
| Height Packed Product Metric | 40 mm |
| Height Packed Product Imperial | 1.575 inch |
| ISO Code (packed) | SL-QD-RGF26C32 |
| Length Packed Product Metric | 90 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | SL-QD-RGF26C32 |
| Length Packed Product Imperial | 3.543 inch |
