Sandvik Coromant
6428123

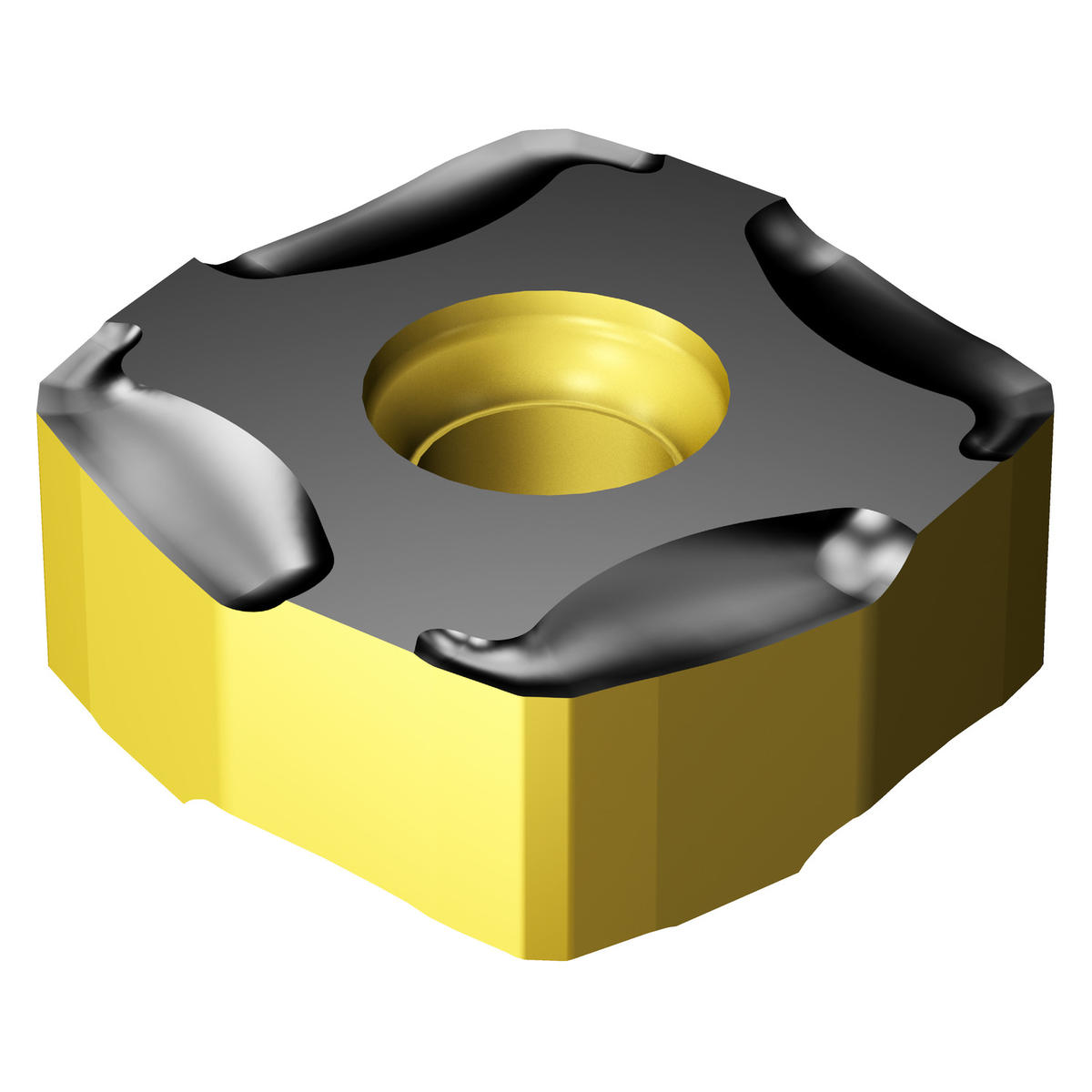

Sandvik Coromant 6428123
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | TiCN+Al2O3+TiN |
| Thickness (Metric) | 5.66 |
| Thickness (Inch) | 0.22 |
| Short Description | CoroMill® 365 insert for milling |
| Style | R365 |
| Unit Of Measure | Metric |
| Country of Origin | United States |
| Series | CoroMill 365 |
| Size | 1505 |
| Grade | 3330 |
| Inscribed Circle Diameter | 15 mm |
| Thickness | 5.66 mm |
| Chip Breaker Type | KM |
| Length (Decimal) | 0.25 |
| Inscribed Circle Diameter (Decimal) | 0.59 |
| Inscribed Circle Diameter (Metric) | 15 |
| ANSI Code | R365-1505ZNE-KM 3330 |
| ISO Code | R365-1505ZNE-KM 3330 |
| Hand of Insert | Right |
| Coner Radius (Inch) | 0.01 |
| Coner Radius (Metric) | 0.3 |
| Fixing Hole Diameter (Decimal) | 0.18 |
| Fixing Hole Diameter (Metric) | 4.6 |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.06 |
| Wiper Edge Length (Metric) | 1.5 |
| Major Cutting Edge Angle | 65 degrees |
| Rake Angle | 1 degrees |
| Corner Chamfer | 35 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 8 |
| Wiper Edge Radius (Decimal) | 5.91 |
| Wiper Edge Radius (Metric) | 150 |
| Corner Chamfer Width (Decimal) | 0.028 |
| Corner Chamfer Width (Metric) | 0.71 |
| Application | Milling, General |
| ISO Material Classification | K |
| Base Item Number | 1014 |
| Insert Size | 1505 |
| Length | 6.4 mm |
| Max. Depth Of Cut (Decimal) | 0.24 |
| Max. Depth Of Cut (Metric) | 6 |
| Maximum Depth Of Cut (Inch) | 0.24 |
| Maximum Depth Of Cut (Metric) | 6 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.031 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | R365 |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | R365-1505ZNE-KM3330 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | R365-1505ZNE-KM 3330 |
| Length Packed Product Imperial | 5.079 inch |
| EAN Code | 26428123 |
