Sandvik Coromant
6428132

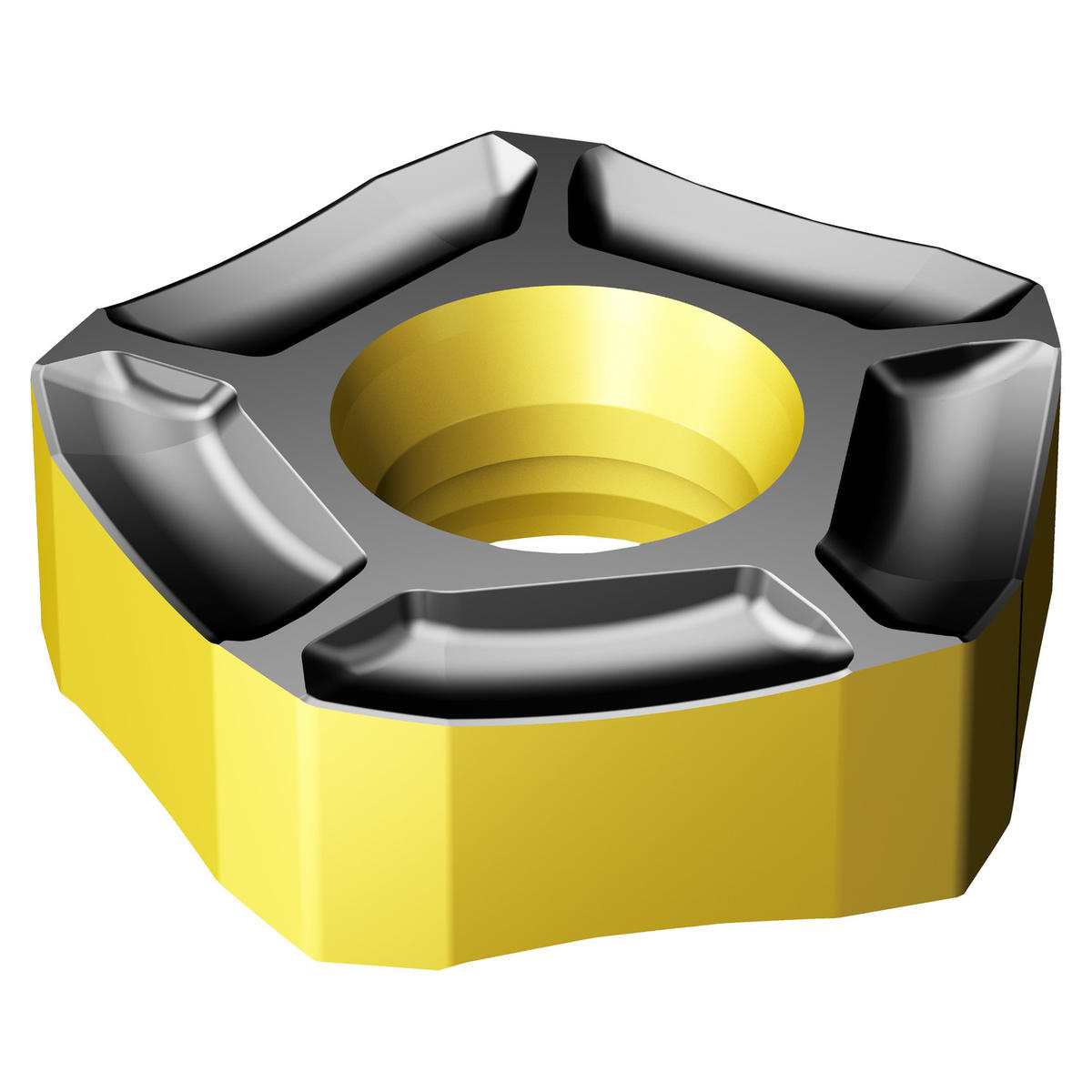

Sandvik Coromant 6428132
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | TiCN+Al2O3+TiN |
| Thickness (Metric) | 7.94 |
| Thickness (Inch) | 0.31 |
| Short Description | CoroMill® 357 insert for milling |
| Shape | Pentagon |
| Style | 357R |
| Unit Of Measure | Metric |
| Country of Origin | Sweden |
| Series | CoroMill 357 |
| Size | 2408 |
| Grade | 3330 |
| Inscribed Circle Diameter | 24.4 mm |
| Thickness | 7.94 mm |
| Chip Breaker Type | PM |
| Length (Decimal) | 0.51 |
| Inscribed Circle Diameter (Decimal) | 0.96 |
| Inscribed Circle Diameter (Metric) | 24.4 |
| ANSI Code | 357R-2408M-PM 3330 |
| ISO Code | 357R-2408M-PM 3330 |
| Hand of Insert | Right |
| Coner Radius (Inch) | 0.04 |
| Coner Radius (Metric) | 1 |
| Fixing Hole Diameter (Decimal) | 0.39 |
| Fixing Hole Diameter (Metric) | 10 |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.12 |
| Wiper Edge Length (Metric) | 3 |
| Major Cutting Edge Angle | 57 degrees |
| Rake Angle | 15 degrees |
| Corner Chamfer | 14.9 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 10 |
| Wiper Edge Radius (Decimal) | 3.15 |
| Wiper Edge Radius (Metric) | 80 |
| Corner Chamfer Width (Decimal) | 0.102 |
| Corner Chamfer Width (Metric) | 2.6 |
| Application | Milling, General |
| ISO Material Classification | K |
| Base Item Number | 2053 |
| Insert Size | 2408 |
| Length | 13 mm |
| Max. Depth Of Cut (Decimal) | 0.39 |
| Max. Depth Of Cut (Metric) | 10 |
| Maximum Depth Of Cut (Inch) | 0.39 |
| Maximum Depth Of Cut (Metric) | 10 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.095 LB |
| Height Packed Product Metric | 18 mm |
| Insert Style | 357R |
| Height Packed Product Imperial | 0.709 inch |
| ISO Code (packed) | 357R-2408M-PM3330 |
| Length Packed Product Metric | 148 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 357R-2408M-PM 3330 |
| Length Packed Product Imperial | 5.827 inch |
