Sandvik Coromant
6448853
Sandvik Coromant 6448853
Specifications
| Overall Length (Inch) | 2.48 |
|---|---|
| Overall Length (Metric) | 62.99 |
| Cutting Diameter (Metric) | 203.20 |

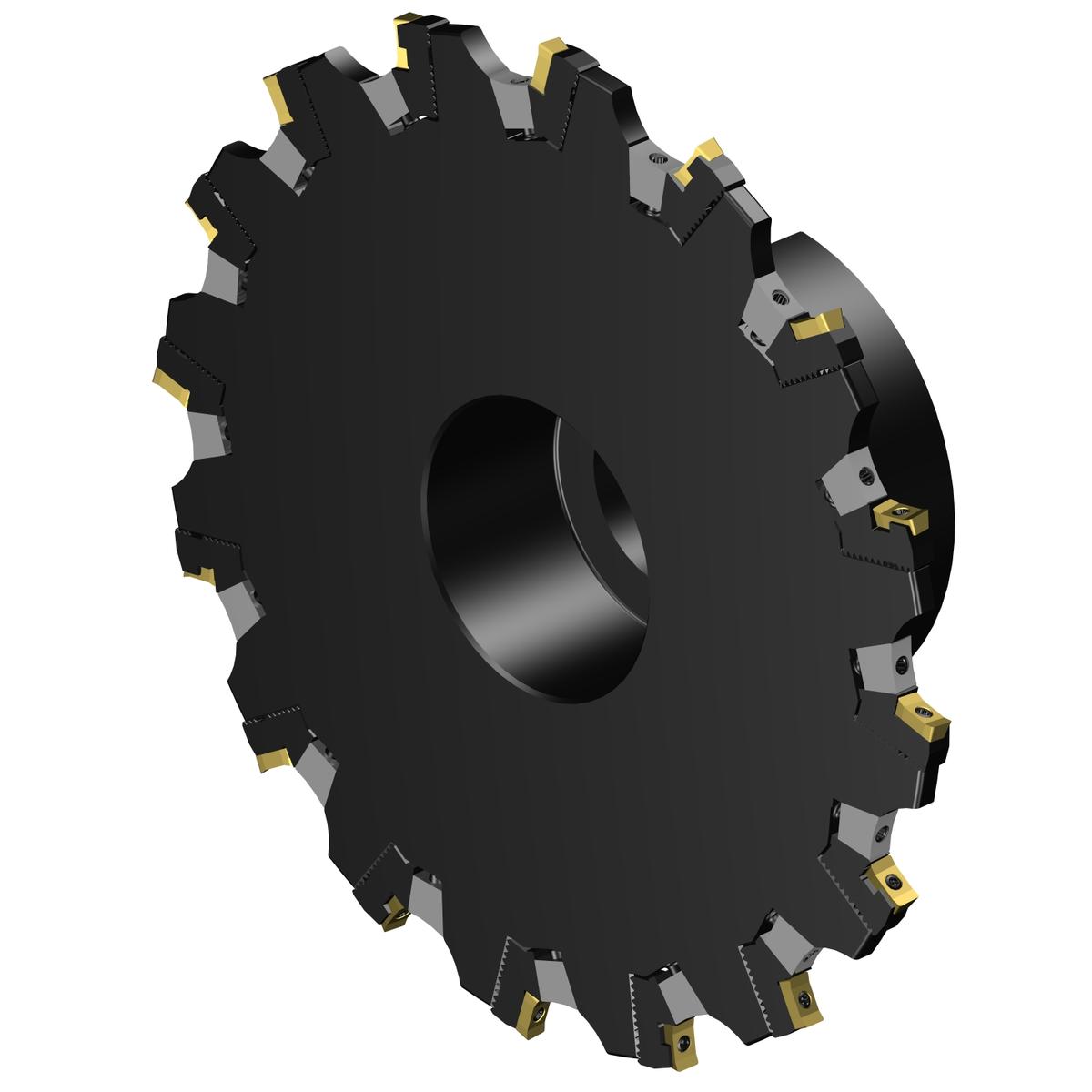

| Short Description | CoroMill® 331 adjustable full side and face disc milling cutter |
| Number Of Inserts | 16 |
| Hole Diameter | 1.5 Inch |
| Max. Cutting Depth (Metric) | 52.60 |
| Torque (NM) | 0.8 |
| Coolant Through | No |
| Cutting Edge Count | 8 |
| Standard Letter | B |
| Standard Number | ISO6462 |
| ANSI Code | R331.32-203R38CM0.236 |
| Min. Overall Length (Decimal) | 2.48 |
| Max. Cutting Width (Metric) | 8 |
| Min. Cutting Width (Decimal) | 0.24 |
| Min. Cutting Width (Metric) | 6 |
| Min. Overall Length (Metric) | 62.99 |
| Height Packed Product Metric | 150 mm |
| Height Packed Product Imperial | 5.906 inch |
| ISO Code (packed) | R331.32-203R38CM0.236 |
| Type | Slot |
| Direction Of Hand | Right |
| Cutting Width (Decimal) | 0.24 |
| Cutting Diameter (Decimal) | 8 |
| Length Packed Product Metric | 420 mm |
| Max. Cutting Depth | 2.07 Inch |
| Series | CoroMill 331 |
| Cutting Diameter | 8 Inch |
| Coolant Entry Style Code | 0: Without Coolant |
| Life Cycle State | 20 |
| Cutting Width (Metric) | 6 |
| Hole Diameter (Decimal) | 1.50 |
| Max. Cutting Width (Decimal) | 0.32 |
| Cutting Width | 0.24 Inch |
| ISO Code (unpacked) | R331.32-203R38CM0.236 |
| Hub Diameter (Metric) | 96.01 |
| Max. Rotational Speed | 11700 1/min |
| Torque (ft lbf) | 0.59 |
| Max. Cutting Depth (Decimal) | 2.07 |
| Hole Diameter (Metric) | 38.10 |
| Length Packed Product Imperial | 16.535 inch |
| Hub Diameter (Decimal) | 3.78 |
