Sandvik Coromant
6448875
Sandvik Coromant 6448875
Specifications
| Overall Length (Inch) | 0.47 |
|---|---|
| Overall Length (Metric) | 12 |
| Cutting Diameter (Metric) | 203.20 |

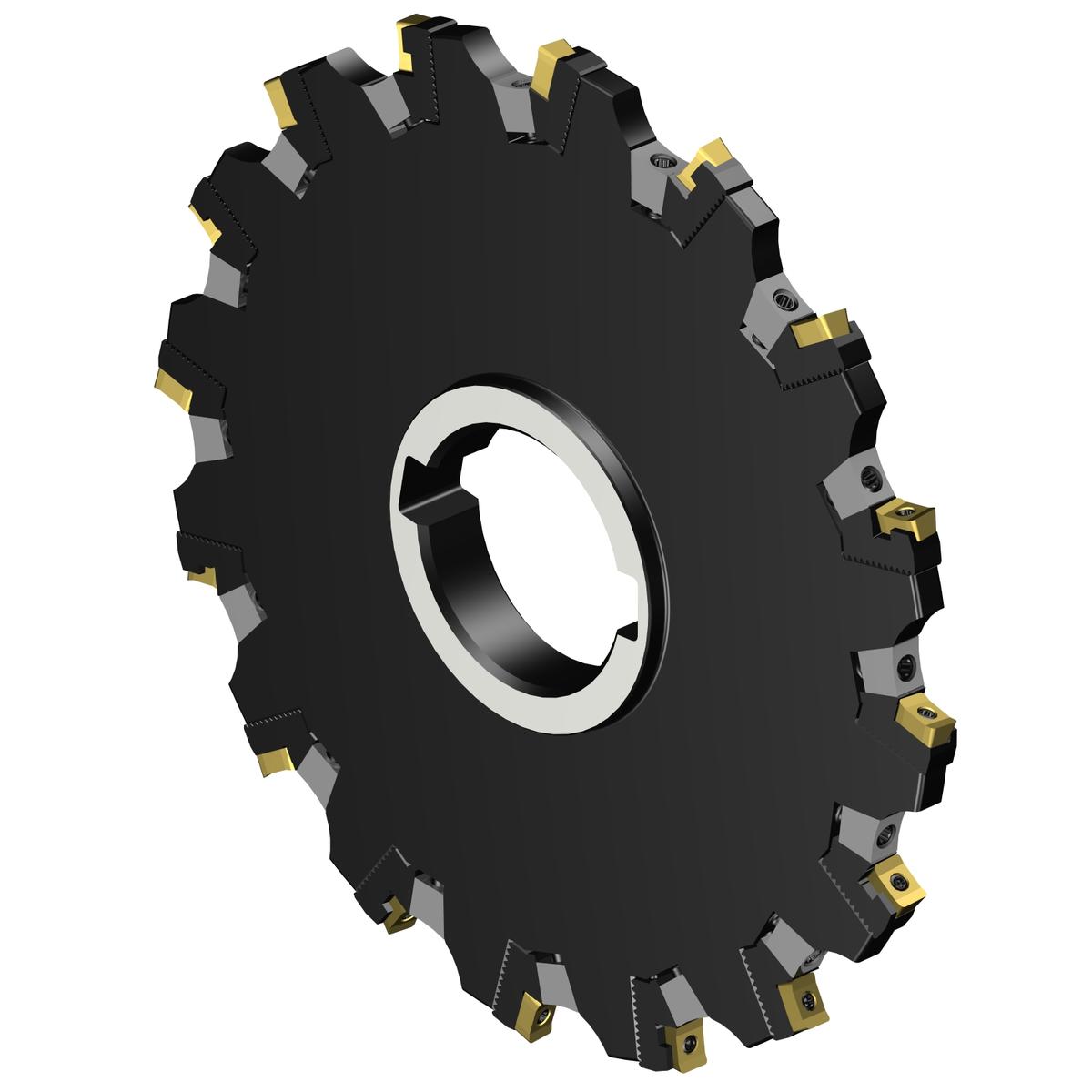

| Short Description | CoroMill® 331 adjustable full side and face disc milling cutter |
| Number Of Inserts | 16 |
| Hole Diameter | 2 Inch |
| Max. Cutting Depth (Metric) | 66.50 |
| Torque (NM) | 1.2 |
| Coolant Through | No |
| Cutting Edge Count | 8 |
| Hub Thickness (Metric) | 16 |
| ANSI Code | N331.32-203T51DM0.315 |
| Min. Overall Length (Decimal) | 0.47 |
| Max. Cutting Width (Metric) | 10 |
| Min. Cutting Width (Decimal) | 0.32 |
| Min. Cutting Width (Metric) | 8 |
| Min. Overall Length (Metric) | 12 |
| Height Packed Product Metric | 58 mm |
| Height Packed Product Imperial | 2.283 inch |
| ISO Code (packed) | N331.32-203T51DM0.315 |
| Type | Slot |
| Direction Of Hand | Neutral |
| Hub Thickness (Decimal) | 0.63 |
| Cutting Width (Decimal) | 0.32 |
| Cutting Diameter (Decimal) | 8 |
| Length Packed Product Metric | 215 mm |
| Max. Cutting Depth | 2.62 Inch |
| Series | CoroMill 331 |
| Cutting Diameter | 8 Inch |
| Coolant Entry Style Code | 0: Without Coolant |
| Life Cycle State | 20 |
| Cutting Width (Metric) | 8 |
| Hole Diameter (Decimal) | 2 |
| Max. Cutting Width (Decimal) | 0.39 |
| Cutting Width | 0.32 Inch |
| ISO Code (unpacked) | N331.32-203T51DM0.315 |
| Hub Diameter (Metric) | 68 |
| Max. Rotational Speed | 9100 1/min |
| Torque (ft lbf) | 0.885 |
| Max. Cutting Depth (Decimal) | 2.62 |
| Hole Diameter (Metric) | 50.80 |
| Drive Count | 2 |
| Length Packed Product Imperial | 8.465 inch |
| Hub Diameter (Decimal) | 2.68 |
