Sandvik Coromant
6448881
Sandvik Coromant 6448881
Specifications
| Overall Length (Inch) | 0.77 |
|---|---|
| Overall Length (Metric) | 19.51 |
| Cutting Diameter (Metric) | 254 |

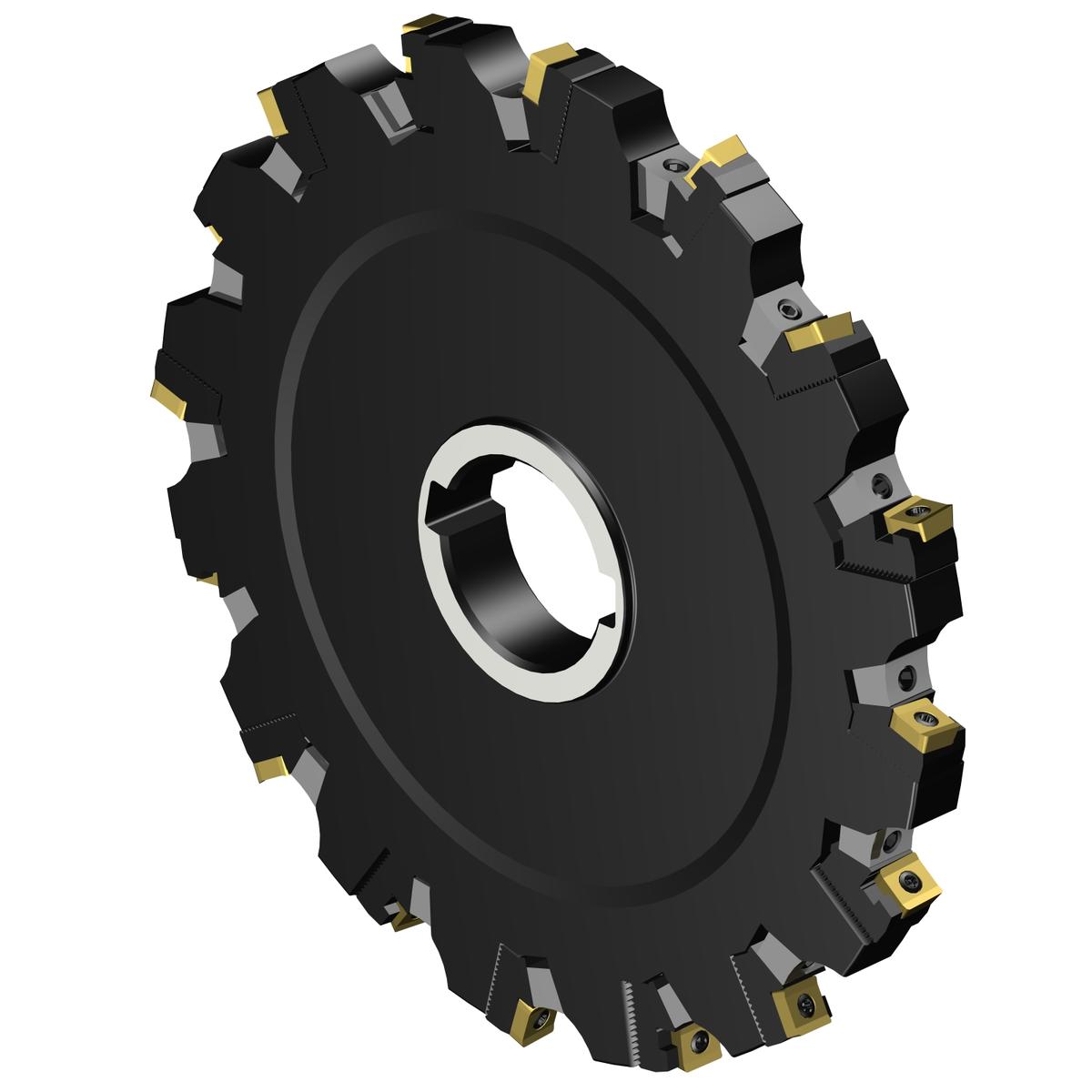

| Short Description | CoroMill® 331 adjustable full side and face disc milling cutter |
| Number Of Inserts | 16 |
| Hole Diameter | 2 Inch |
| Max. Cutting Depth (Metric) | 92 |
| Torque (NM) | 3 |
| Coolant Through | No |
| Cutting Edge Count | 8 |
| Hub Thickness (Metric) | 21.51 |
| ANSI Code | N331.32-254T51LM0.689 |
| Min. Overall Length (Decimal) | 0.77 |
| Max. Cutting Width (Metric) | 20.50 |
| Min. Cutting Width (Decimal) | 0.69 |
| Min. Cutting Width (Metric) | 17.50 |
| Min. Overall Length (Metric) | 19.51 |
| Height Packed Product Metric | 90 mm |
| Height Packed Product Imperial | 3.543 inch |
| ISO Code (packed) | N331.32-254T51LM0.689 |
| Type | Slot |
| Direction Of Hand | Neutral |
| Hub Thickness (Decimal) | 0.85 |
| Cutting Width (Decimal) | 0.69 |
| Cutting Diameter (Decimal) | 10 |
| Length Packed Product Metric | 300 mm |
| Max. Cutting Depth | 3.62 Inch |
| Series | CoroMill 331 |
| Cutting Diameter | 10 Inch |
| Coolant Entry Style Code | 0: Without Coolant |
| Life Cycle State | 20 |
| Cutting Width (Metric) | 17.50 |
| Hole Diameter (Decimal) | 2 |
| Max. Cutting Width (Decimal) | 0.81 |
| Cutting Width | 0.69 Inch |
| ISO Code (unpacked) | N331.32-254T51LM0.689 |
| Hub Diameter (Metric) | 68 |
| Max. Rotational Speed | 8500 1/min |
| Torque (ft lbf) | 2.213 |
| Max. Cutting Depth (Decimal) | 3.62 |
| Hole Diameter (Metric) | 50.80 |
| Drive Count | 2 |
| Length Packed Product Imperial | 11.811 inch |
| Hub Diameter (Decimal) | 2.68 |
