Sandvik Coromant
6532066

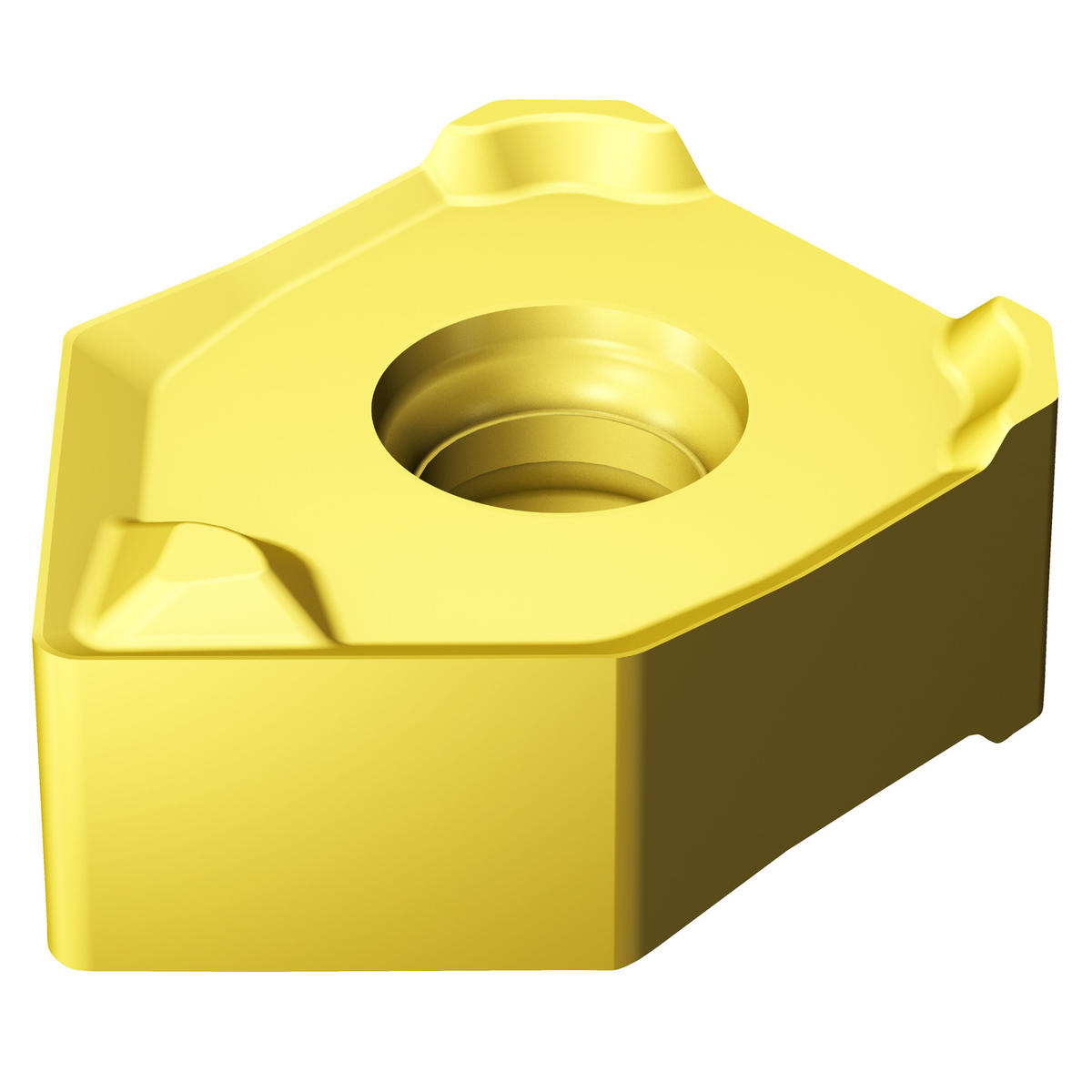

Sandvik Coromant 6532066
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | TiCrN+Al2O3+TiN |
| Thickness (Metric) | 5.45 |
| Thickness (Inch) | 0.22 |
| Short Description | CoroMill® 345 insert for milling |
| Shape | Square |
| Style | 345N |
| Unit Of Measure | Metric |
| Country of Origin | Sweden |
| Series | CoroMill 345 |
| Size | 13T5 |
| Grade | S40T |
| Inscribed Circle Diameter | 13 mm |
| Thickness | 5.45 mm |
| Chip Breaker Type | MW8 |
| Length (Decimal) | 0.35 |
| Inscribed Circle Diameter (Decimal) | 0.51 |
| Inscribed Circle Diameter (Metric) | 13 |
| ANSI Code | 345N-13T5E-MW8 S40T |
| ISO Code | 345N-13T5E-MW8 S40T |
| Hand of Insert | Neutral |
| Coner Radius (Inch) | 0.04 |
| Coner Radius (Metric) | 1 |
| Fixing Hole Diameter (Decimal) | 0.19 |
| Fixing Hole Diameter (Metric) | 4.8 |
| Coating Process Type | CVD |
| Operation Type | Light |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.32 |
| Wiper Edge Length (Metric) | 8 |
| Major Cutting Edge Angle | 45 degrees |
| Rake Angle | 30 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Wiper Edge Radius (Decimal) | 19.69 |
| Wiper Edge Radius (Metric) | 500 |
| ISO Material Classification | MS |
| Base Item Number | 2006 |
| Insert Size | 13T5 |
| Length | 8.8 mm |
| Max. Depth Of Cut (Decimal) | 0.24 |
| Max. Depth Of Cut (Metric) | 6 |
| Maximum Depth Of Cut (Inch) | 0.24 |
| Maximum Depth Of Cut (Metric) | 6 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.025 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | 345N |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | 345N-13T5E-MW8S40T |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 345N-13T5E-MW8 S40T |
| Length Packed Product Imperial | 5.079 inch |
| EAN Code | 26532066 |
