Sandvik Coromant

6532089

Sandvik Coromant 6532089

Specifications

SizeE2
Chip Breaker TypeGM
Coating/FinishTiCN+Al2O3+TiN
MaterialWC or Cermet
Base Item Number1073
Cutting Width (Inch)0.08
Max. Depth Of Cut (Decimal)0.74
Max. Depth Of Cut (Metric)18.8
Maximum Depth Of Cut (Inch)0.74
Maximum Depth Of Cut (Metric)18.8
Product TypeIndustrial Supplies
Unit of MeasureMetric
Weight0.006 LB
Unit Of MeasureMetric

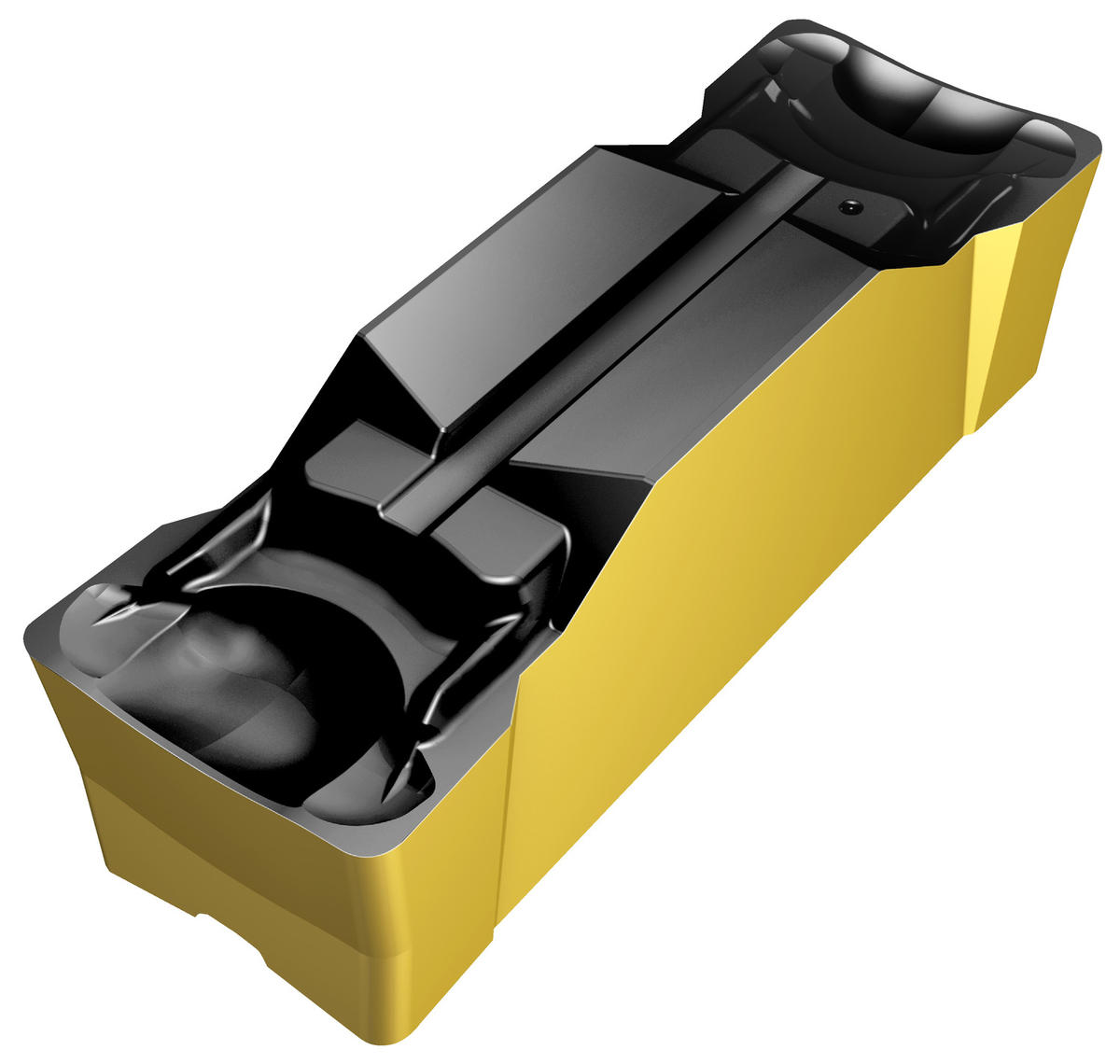

Short DescriptionCoroCutĀ® 1-2 insert for grooving
SeriesCoroCut 1-2
StyleN123
Grade4325
Cutting Width2 mm
Cutting Width (Decimal)0.08
Cutting Width (Metric)2
ANSI CodeN123E2-0200-0002-GM 4325
ISO CodeN123E2-0200-0002-GM 4325
Insert Seat Size CodeE
Hand of InsertNeutral
Coating Process TypeCVD
Operation TypeMedium
Mounting StyleClamp
Substrate TypeCarbide
Number of Cutting Edges2
Clearance Angle Major7 degrees
Machine Side Body Angle0 degrees
Insert Gauge Length (Decimal)0.77
Insert Gauge Length (Metric)19.58
Corner Radius Left (Decimal)0.01
Corner Radius Left (Metric)0.2
Corner Radius Right (Decimal)0.01
Corner Radius Right (Metric)0.2
Corner Radius Lower Tolerance (Decimal)-0.003937
Corner Radius Lower Tolerance (Metric)-0.1
Corner Radius Upper Tolerance (Decimal)0.003937
Corner Radius Upper Tolerance (Metric)0.1
Cutting Width Upper Tolerance (Decimal)0.003937
Cutting Width Upper Tolerance (Metric)0.1
ApplicationTurning, Parting/Grooving
ISO Material ClassificationPK
Country of OriginSweden
Height Packed Product Metric13.5 mm
Insert StyleN123
Height Packed Product Imperial0.531 inch
ISO Code (packed)N123E2-0200-0002-GM4325
Insert SizeE2
Length Packed Product Metric129 mm
Life Cycle State20
ISO Code (unpacked)N123E2-0200-0002-GM 4325
Length Packed Product Imperial5.079 inch
