Sandvik Coromant
6532098
Sandvik Coromant 6532098
Specifications
| Size | M1 |
|---|---|
| Chip Breaker Type | GM |
| Coating/Finish | TiCN+Al2O3+TiN |
| Material | WC or Cermet |
| Base Item Number | 1073 |
| Cutting Width (Inch) | 0.35 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.063 LB |
| Unit Of Measure | Metric |

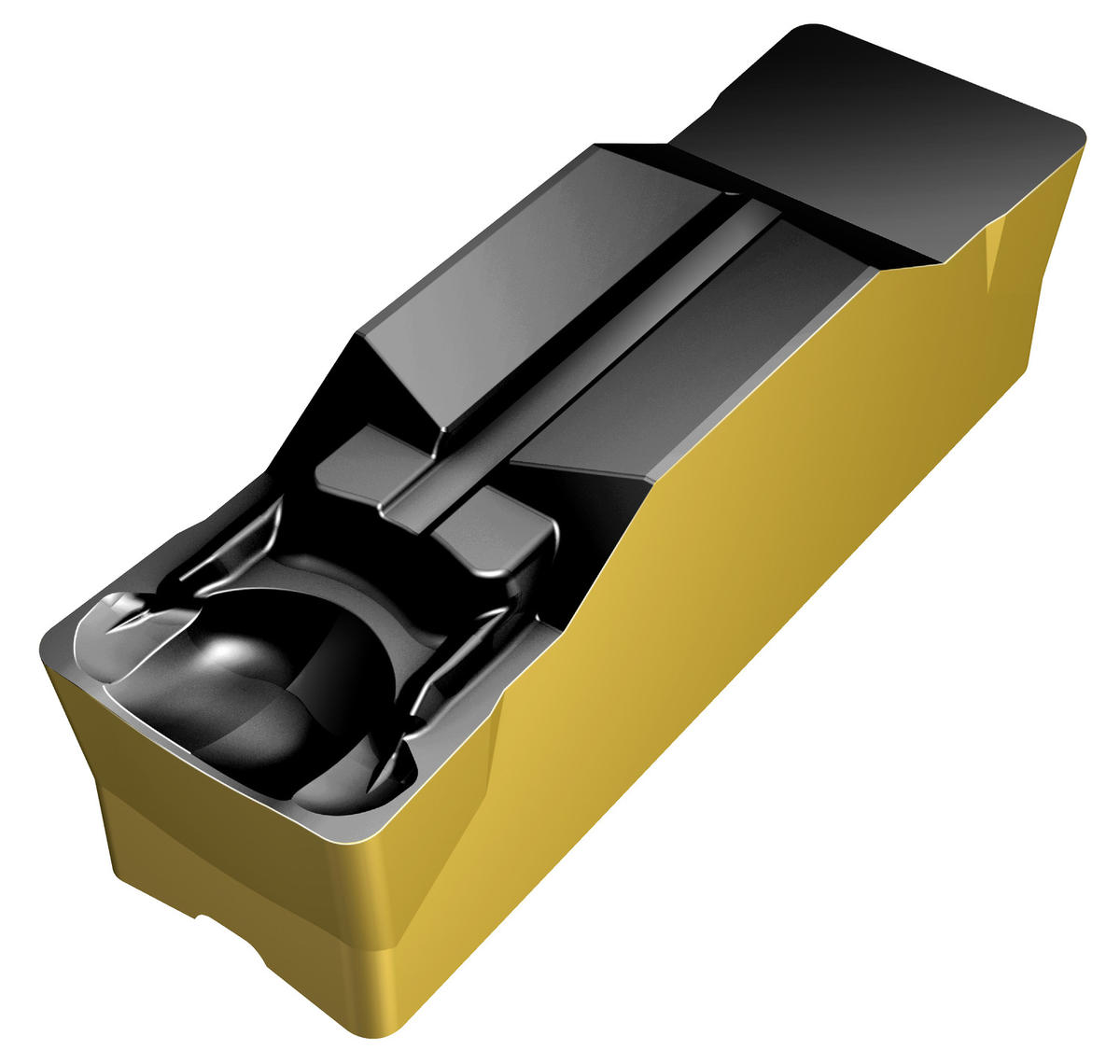

| Short Description | CoroCutĀ® 1-2 insert for grooving |
| Series | CoroCut 1-2 |
| Style | N123 |
| Grade | 4325 |
| Cutting Width | 9 mm |
| Cutting Width (Decimal) | 0.35 |
| Cutting Width (Metric) | 9 |
| ANSI Code | N123M1-0900-0008-GM 4325 |
| ISO Code | N123M1-0900-0008-GM 4325 |
| Insert Seat Size Code | M |
| Hand of Insert | Neutral |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 1 |
| Clearance Angle Major | 7 degrees |
| Machine Side Body Angle | 0 degrees |
| Corner Radius Left (Decimal) | 0.03 |
| Corner Radius Left (Metric) | 0.8 |
| Corner Radius Right (Decimal) | 0.03 |
| Corner Radius Right (Metric) | 0.8 |
| Corner Radius Lower Tolerance (Decimal) | -0.001969 |
| Corner Radius Lower Tolerance (Metric) | -0.05 |
| Corner Radius Upper Tolerance (Decimal) | 0.001969 |
| Corner Radius Upper Tolerance (Metric) | 0.05 |
| Cutting Width Lower Tolerance (Decimal) | -0.001181 |
| Cutting Width Lower Tolerance (Metric) | -0.03 |
| Cutting Width Upper Tolerance (Decimal) | 0.001181 |
| Cutting Width Upper Tolerance (Metric) | 0.03 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | PK |
| Country of Origin | Sweden |
| Height Packed Product Metric | 18 mm |
| Insert Style | N123 |
| Height Packed Product Imperial | 0.709 inch |
| ISO Code (packed) | N123M1-0900-0008-GM4325 |
| Insert Size | M1 |
| Length Packed Product Metric | 148 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | N123M1-0900-0008-GM 4325 |
| Length Packed Product Imperial | 5.827 inch |
