Sandvik Coromant
6532145
Sandvik Coromant 6532145
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 9.53 |
| Corner Radius (Metric) | 3.18 |
| Material | WC or Cermet |
| Size | 3809 |
| Corner Radius (Inch) | 0.13 |
| Style | SCMT |
| Thickness (Inch) | 0.38 |

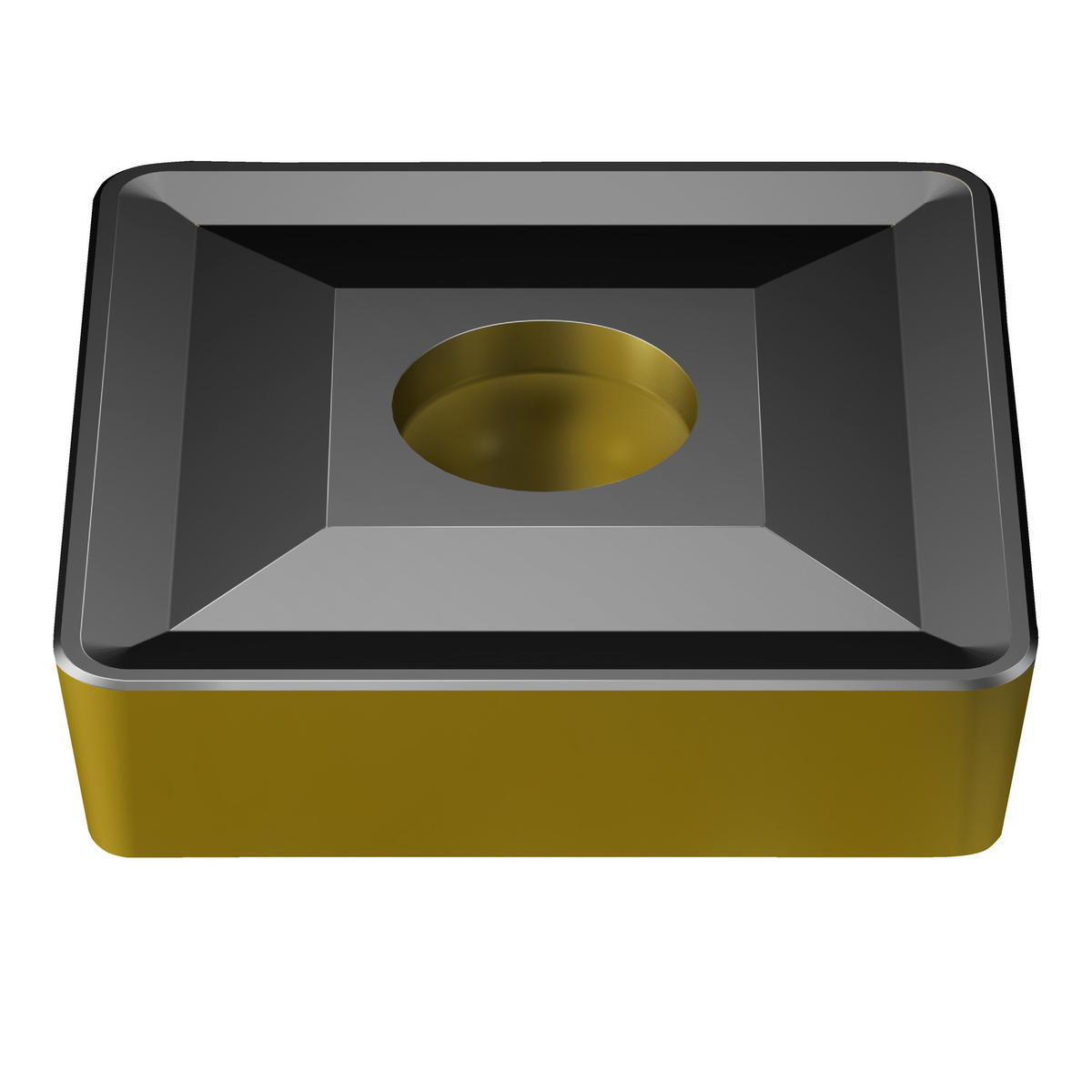

| Short Description | CoroTurn® 107 insert for turning |
| Grade | 4325 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 38.1 mm |
| Inscribed Circle Diameter (Decimal) | 1.5 |
| Inscribed Circle Diameter (Metric) | 38.1 |
| Clearance Angle Major | 7 degrees |
| Face Land Width (Metric) | 0.45 |
| Face Land Width (Decimal) | 0.018 |
| Length (Decimal) | 1.37 |
| Length (Metric) | 34.9 |
| Face Land Angle | 20 degrees |
| Shape | Square |
| Country of Origin | Sweden |
| Series | CoroTurn 107 |
| Chip Breaker Type | XH |
| ANSI Code | SCMT 38 09 32-XH 4325 |
| ISO Code | SCMT 38 09 32-XH 4325 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.35 |
| Fixing Hole Diameter (Metric) | 9 |
| Coating Process Type | CVD |
| Operation Type | Roughing |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Wiper Edge Property | No |
| ISO Material Classification | PK |
| Base Item Number | 1053 |
| Length | 34.9 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.366 LB |
| Height Packed Product Metric | 45 mm |
| Insert Style | SCMT |
| Height Packed Product Imperial | 1.772 inch |
| ISO Code (packed) | SCMT380932-XH4325 |
| Insert Size | 3809 |
| Length Packed Product Metric | 130 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | SCMT 38 09 32-XH 4325 |
| Length Packed Product Imperial | 5.118 inch |
