Sandvik Coromant
6532328

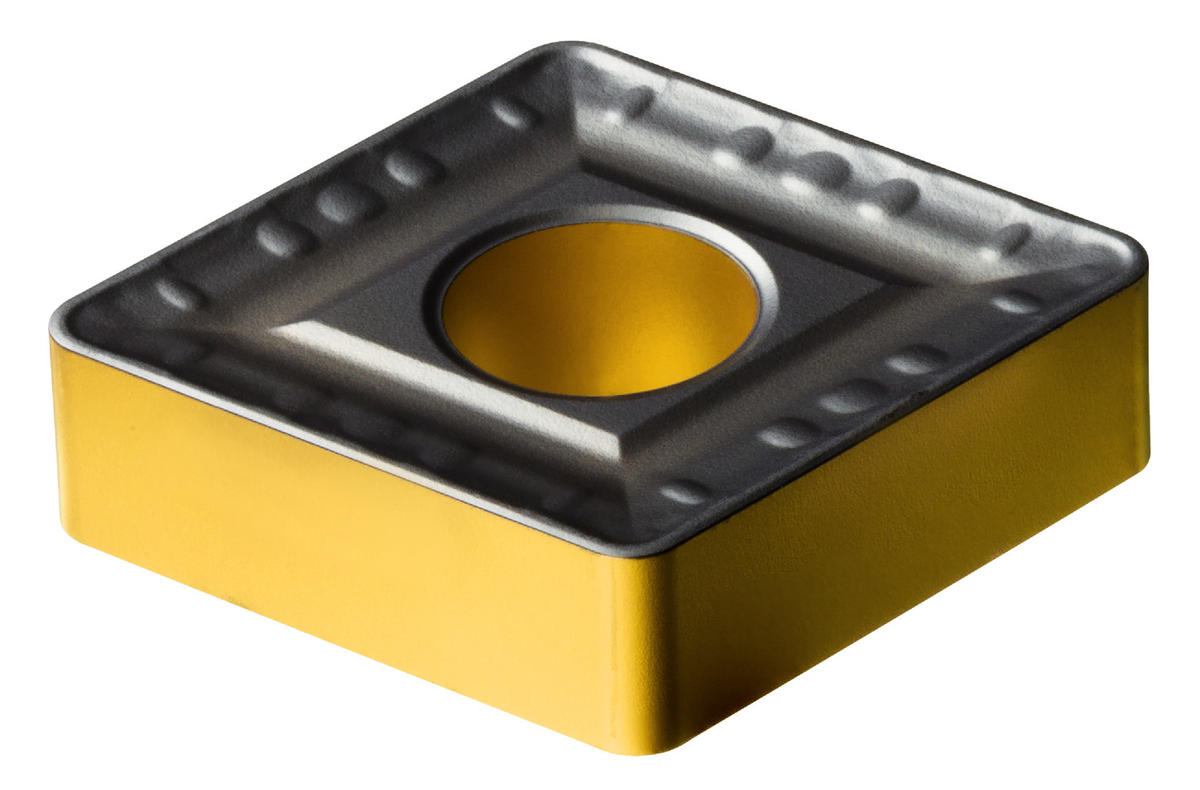

Sandvik Coromant 6532328
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 9.53 |
| Corner Radius (Metric) | 2.38 |
| Material | WC or Cermet |
| Size | 866 |
| Corner Radius (Inch) | 0.09 |
| Style | CNMM |
| Thickness (Inch) | 0.38 |
| Short Description | T-Max® P insert for turning |
| Grade | 4325 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 25.4 mm |
| Inscribed Circle Diameter (Decimal) | 1 |
| Inscribed Circle Diameter (Metric) | 25.4 |
| Clearance Angle Major | 0 degrees |
| Length (Decimal) | 0.92 |
| Length (Metric) | 23.4 |
| Shape | Diamond |
| Country of Origin | Sweden |
| Series | T-Max P |
| Chip Breaker Type | HR |
| ANSI Code | CNMM 866-HR 4325 |
| ISO Code | CNMM 25 09 24-HR 4325 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.36 |
| Fixing Hole Diameter (Metric) | 9.12 |
| Coating Process Type | CVD |
| Operation Type | Roughing |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | PK |
| Base Item Number | 1049 |
| Length | 23.4 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.161 LB |
| Height Packed Product Metric | 46 mm |
| Insert Style | CNMM |
| Height Packed Product Imperial | 1.811 inch |
| ISO Code (packed) | CNMM250924-HR4325 |
| Insert Size | 866 |
| Length Packed Product Metric | 77 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | CNMM 25 09 24-HR 4325 |
| Length Packed Product Imperial | 3.031 inch |
