Sandvik Coromant
6536147

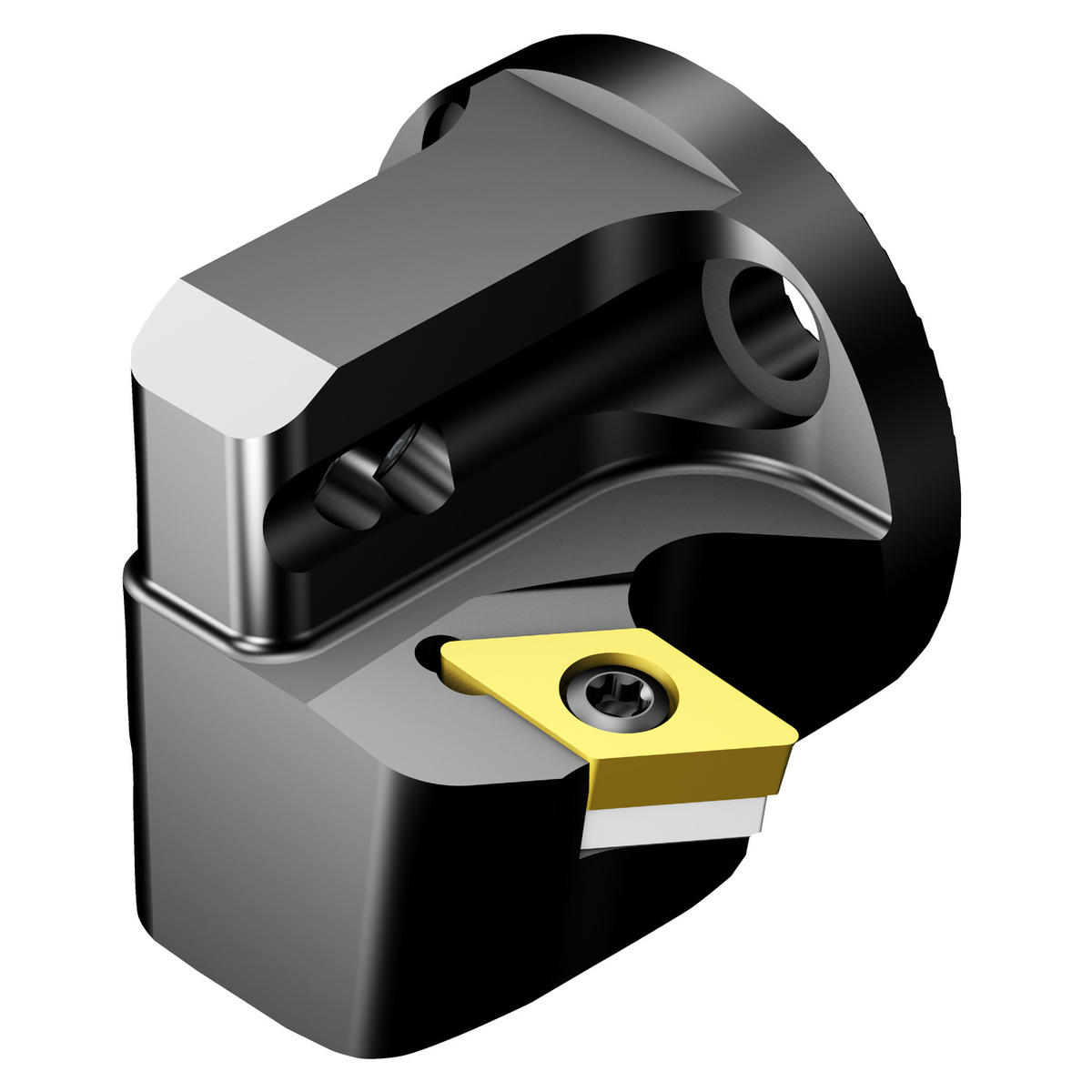

Sandvik Coromant 6536147
Specifications
| Center to Cutting Edge (Inch) | 0.71 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 1.3 |
| Size | 25 |
| Series | CoroTurn 107 |
| Bore Diameter (Metric) | 33 |
| Center to Cutting Edge (Metric) | 18 |
| Short Description | CoroTurn® 107 head for back boring |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 18 mm |
| Insert Style | DCMT 070204 |
| ANSI Code | SL-SDUCR-25-07-DXHP |
| Connection Diameter (Decimal) | 0.98 |
| Connection Diameter (Metric) | 25 |
| Clamping Type Code | Screw/Clamp |
| Coolant Pressure | 1160.3 lbf/in2 |
| Torque | 0.9 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | -2 degrees |
| Orthogonal Rake Angle | 0 degrees |
| Tool Cutting Edge Angle | 93 degrees |
| Tool Lead Angle | -3 degrees |
| Protruding Length (Decimal) | 1.1 |
| Protruding Length (Metric) | 27.9 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 7: Axial Inclined Focused Exit With Nozzle |
| Country of Origin | Norway |
| Base Item Number | 1053 |
| Max. Hole Depth | 15 mm |
| Max. Hole Depth (Decimal) | 0.59 |
| Max. Hole Depth (Metric) | 15 |
| Max. Overhang (Decimal) | 0.59 |
| Max. Overhang (Metric) | 15 |
| Maximum Ramping Angle | 27 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.198 LB |
