Sandvik Coromant
6537307
Sandvik Coromant 6537307
Specifications
| Overall Length (Metric) | 106.7 |
|---|---|
| Overall Length (Inch) | 4.2 |
| Shank Width (Inch) | 0.79 |
| Shank Width (Metric) | 20 |
| Insert Style | QS-R/LF123..C..F |
| Base Item Number | 1073 |
| Max. Cutting Depth | 20 mm |
| Max. Cutting Depth (Decimal) | 0.79 |
| Max. Cutting Depth (Metric) | 20 |
| Max. Overhang (Decimal) | 2.47 |
| Max. Overhang (Metric) | 62.7 |
| Max. Work Piece Parting Diameter (Decimal) | 1.58 |
| Max. Work Piece Parting Diameter (Metric) | 40 |
| Min. Overhang (Decimal) | 1.48 |
| Min. Overhang (Metric) | 37.7 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.619 LB |

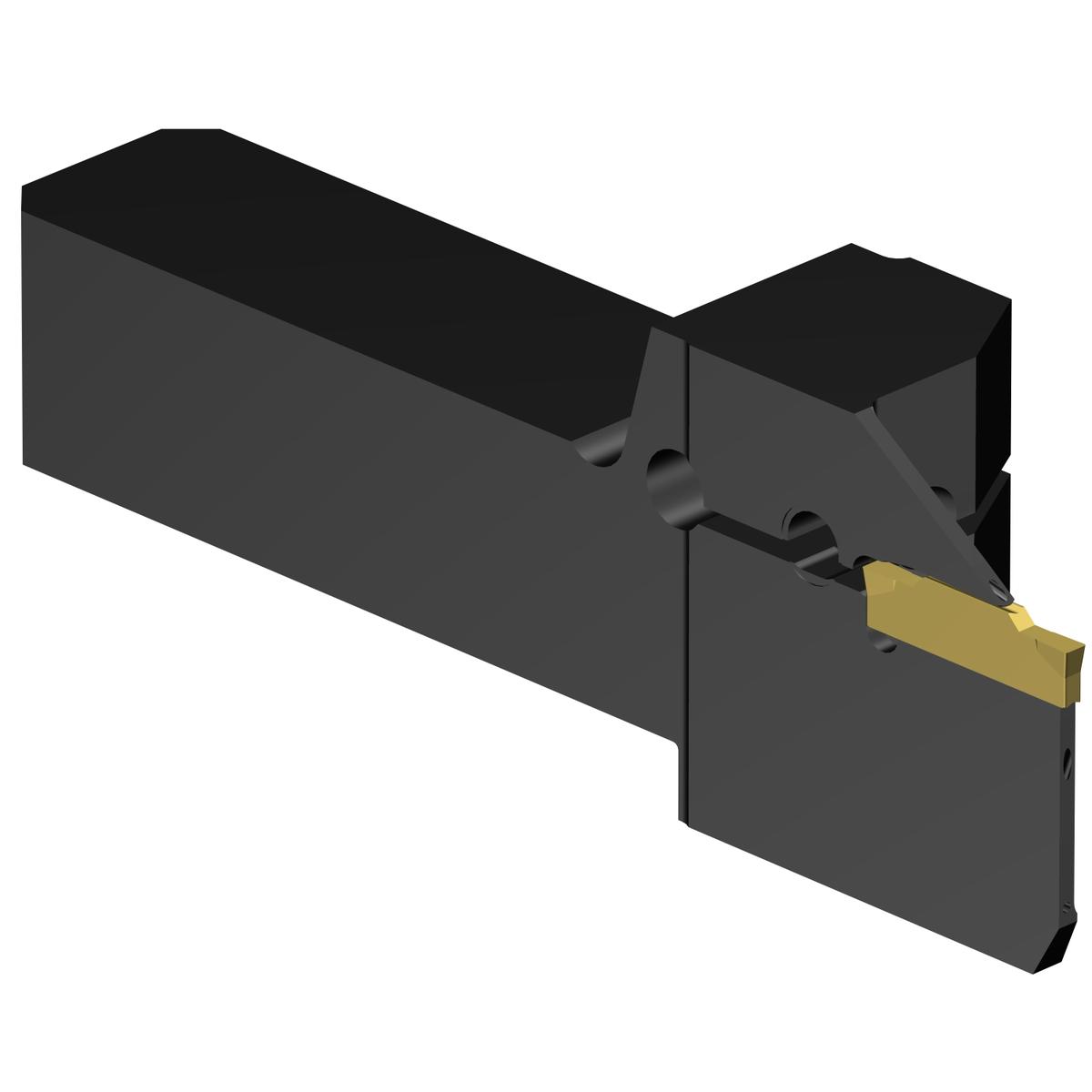

| Short Description | CoroCut® 1-2 QS shank tool for parting and grooving |
| Series | CoroCut 1-2 |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Insert Compatibility | N123E2-0200-0002-CM |
| Shank Height | 20 mm |
| Shank Width | 20 mm |
| Shank Height (Decimal) | 0.79 |
| Shank Height (Metric) | 20 |
| ANSI Code | QS-LF123E20C2020F |
| Coolant Through | Yes |
| Overall Width (Decimal) | 0.81 |
| Overall Width (Metric) | 20.5 |
| Overall Height (Decimal) | 0.79 |
| Overall Height (Metric) | 20 |
| Insert Seat Size Code | E |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Thread Size | G1/8-28 |
| Coolant Pressure | 2175.57 lbf/in2 |
| Clamping Type Code | Clamp |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
