Sandvik Coromant
6537341

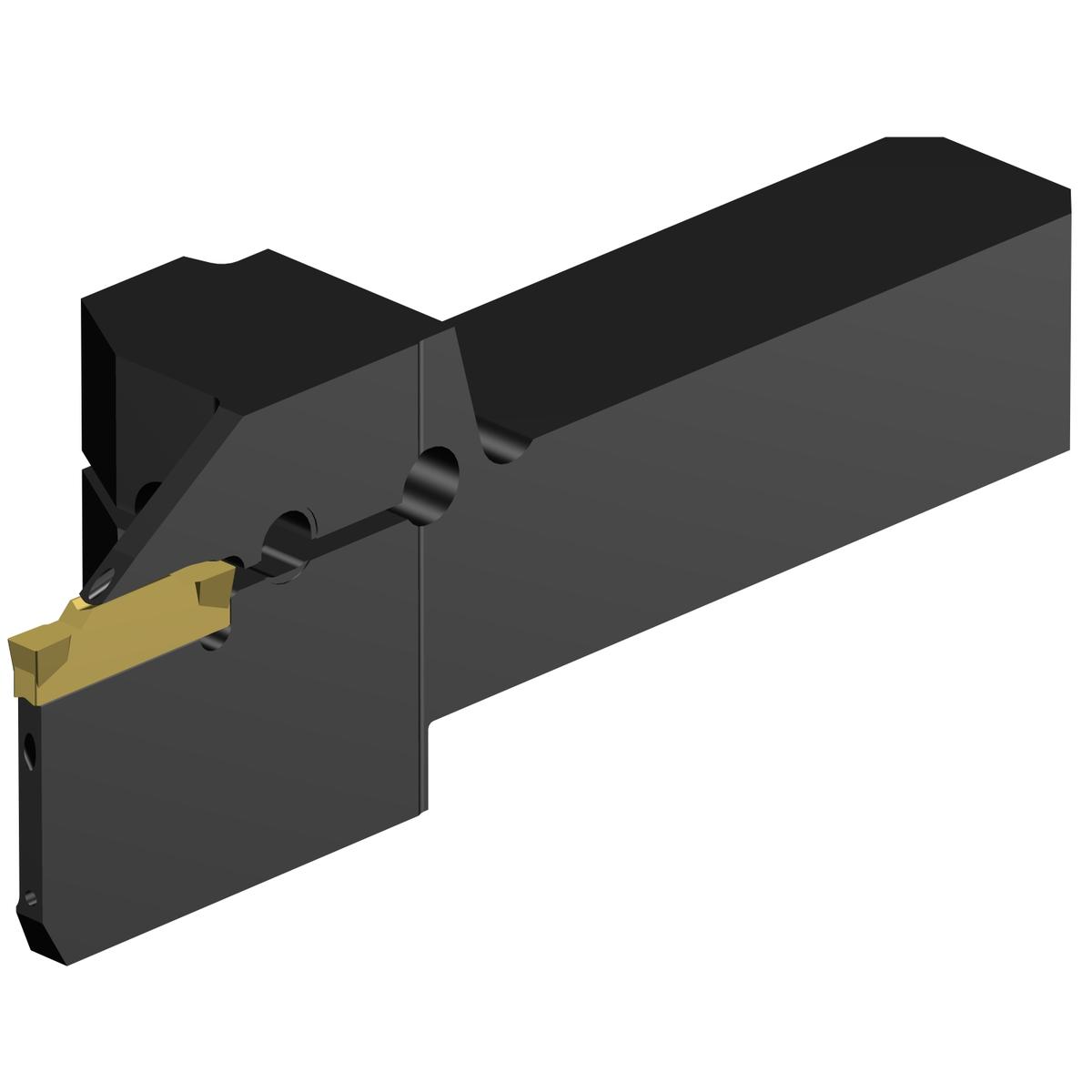

Sandvik Coromant 6537341
Specifications
| Overall Length (Metric) | 107.92 |
|---|---|
| Overall Length (Inch) | 4.25 |
| Shank Width (Inch) | 0.75 |
| Shank Width (Metric) | 19.05 |
| Insert Style | QS-R/LF123..C..F (INCH) |
| Base Item Number | 1073 |
| Max. Cutting Depth | 0.8 Inch |
| Max. Cutting Depth (Decimal) | 0.8 |
| Max. Cutting Depth (Metric) | 20.32 |
| Max. Overhang (Decimal) | 2.52 |
| Max. Overhang (Metric) | 63.92 |
| Max. Work Piece Parting Diameter (Decimal) | 1.6 |
| Max. Work Piece Parting Diameter (Metric) | 40.64 |
| Min. Overhang (Decimal) | 1.53 |
| Min. Overhang (Metric) | 38.92 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.606 LB |
| Short Description | CoroCut® 1-2 QS shank tool for parting and grooving |
| Series | CoroCut 1-2 |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Insert Compatibility | N123G2-0300-0003-TF |
| Shank Height | 0.75 Inch |
| Shank Width | 0.75 Inch |
| Shank Height (Decimal) | 0.75 |
| Shank Height (Metric) | 19.05 |
| ANSI Code | QS-RF123G080C12F |
| Coolant Through | Yes |
| Overall Width (Decimal) | 0.77 |
| Overall Width (Metric) | 19.55 |
| Overall Height (Decimal) | 0.75 |
| Overall Height (Metric) | 19.05 |
| Insert Seat Size Code | G |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Thread Size | G1/8-28 |
| Coolant Pressure | 2175.57 lbf/in2 |
| Clamping Type Code | Clamp |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
