Sandvik Coromant
6537380

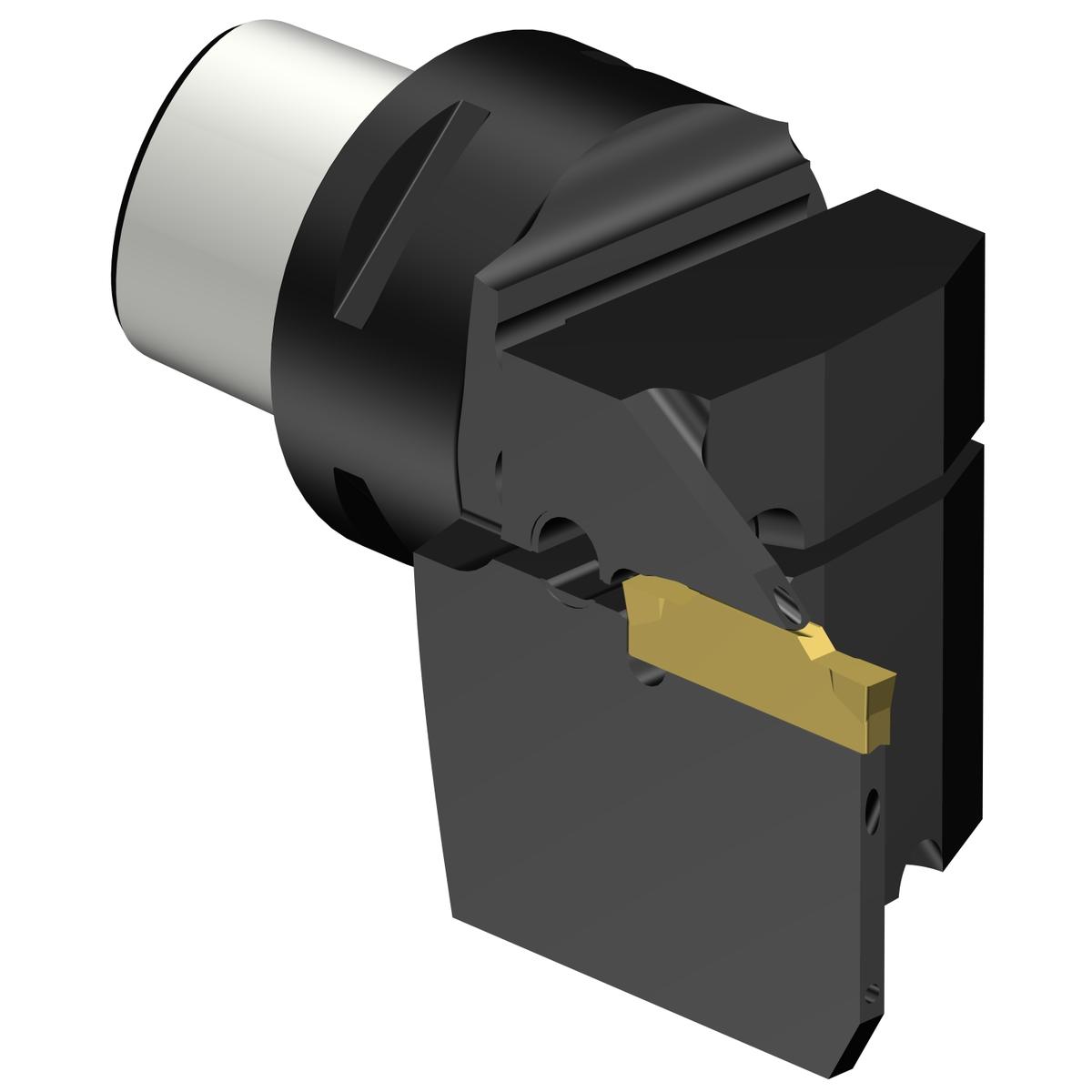

Sandvik Coromant 6537380
Specifications
| Center to Cutting Edge (Inch) | 0.87 |
|---|---|
| Coolant Fed | Yes |
| Size | C3 |
| Series | CoroCut 1-2 |
| Center to Cutting Edge (Metric) | 22 |
| Short Description | CoroCut® 1-2 cutting unit for parting and grooving |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 22 mm |
| Insert Style | N123F2-0250-0002-CM |
| ANSI Code | C3-LF123F15C22055E |
| Connection Diameter (Decimal) | 1.26 |
| Connection Diameter (Metric) | 32 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 2175.57 lbf/in2 |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Insert Seat Size Code | F |
| Country of Origin | Sweden |
| Base Item Number | 1073 |
| Max. Cutting Depth (Decimal) | 0.59 |
| Max. Cutting Depth (Metric) | 15 |
| Max. Hole Depth | 55 mm |
| Max. Hole Depth (Decimal) | 2.17 |
| Max. Hole Depth (Metric) | 55 |
| Max. Overhang (Decimal) | 2.17 |
| Max. Overhang (Metric) | 55 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.584 LB |
| Height Packed Product Metric | 60 mm |
| Height Packed Product Imperial | 2.362 inch |
| ISO Code (packed) | C3-LF123F15C22055E |
| Length Packed Product Metric | 98 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | C3-LF123F15C22055E |
| Length Packed Product Imperial | 3.858 inch |
