Sandvik Coromant
6537526
Sandvik Coromant 6537526
Specifications
| Overall Length (Metric) | 127.22 |
|---|---|
| Series | CoroCut 1-2 |
| Overall Length (Inch) | 5.01 |
| Insert Style | QS-R/LF123..C..E..B |

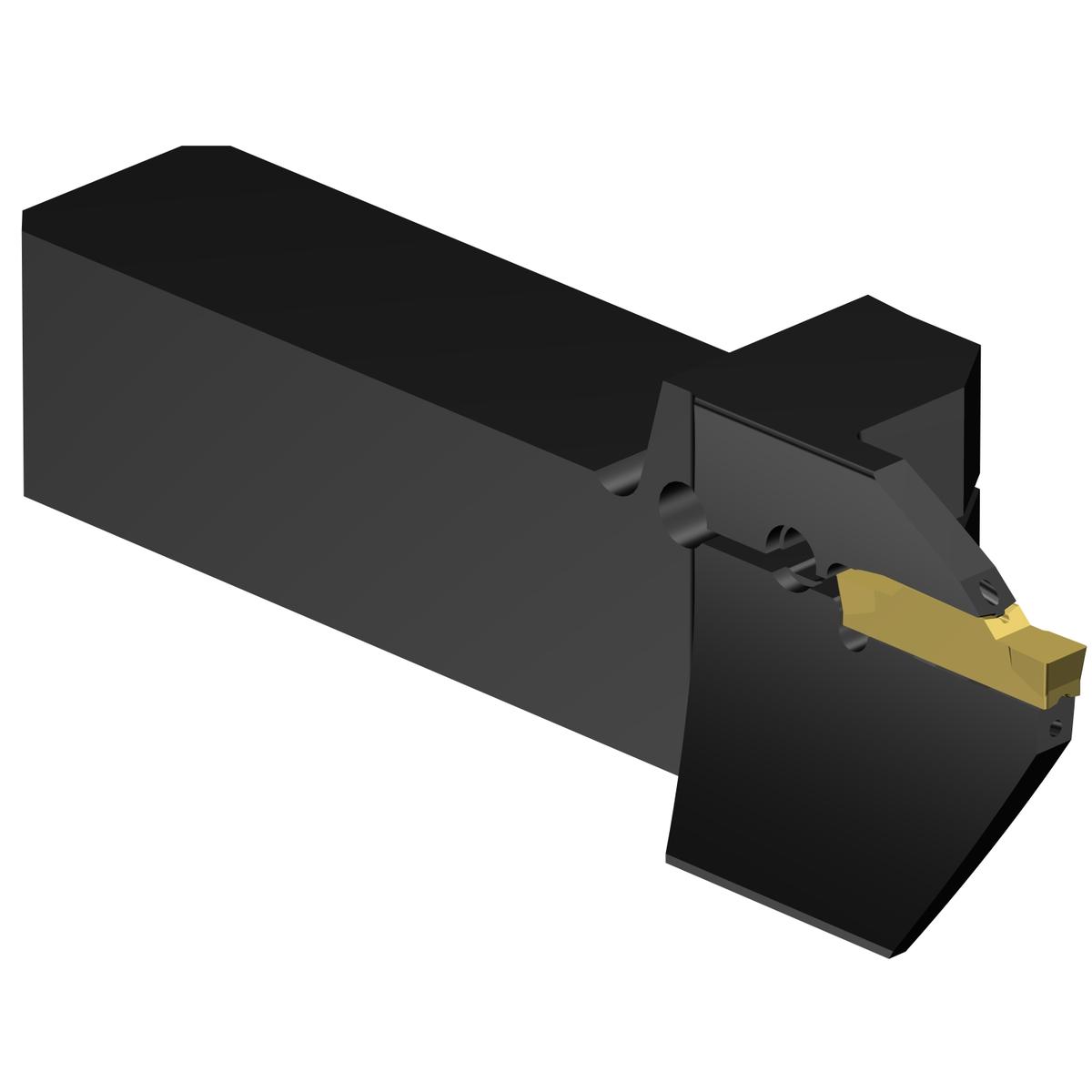

| Short Description | CoroCut® 1-2 QS shank tool for face grooving |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Shank Width | 1 Inch |
| Shank Width (Decimal) | 0.01 |
| Shank Width (Metric) | 25.4 |
| Shank Height (Metric) | 25.4 |
| Coolant Entry Thread Size | G1/8-28 |
| Overall Height (Metric) | 25.4 |
| Overall Height (Decimal) | 1 |
| Overall Length | 5.01 Inch |
| Insert Compatibility | N123J2-0500-0004-TF |
| ANSI Code | QS-LF123J100C16E-120B |
| Coolant Through | Yes |
| Overall Width (Decimal) | 1.02 |
| Overall Width (Metric) | 25.9 |
| Shank Height (Decimal) | 1 |
| Coolant Pressure | 2175.57 lbf/in2 |
| Clamping Type Code | Clamp |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 1073 |
| Max. Axial Groove Outside Diameter (Decimal) | 7.09 |
| Max. Axial Groove Outside Diameter (Metric) | 180 |
| Max. Cutting Depth (Decimal) | 1 |
| Max. Cutting Depth (Metric) | 25.4 |
| Max. Overhang (Decimal) | 2.7 |
| Max. Overhang (Metric) | 68.62 |
| Min. Axial Groove Inside Diameter (Decimal) | 4.72 |
| Min. Axial Groove Inside Diameter (Metric) | 120 |
| Min. Overhang (Decimal) | 1.7 |
| Min. Overhang (Metric) | 43.22 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.129 LB |
