Sandvik Coromant
6537535

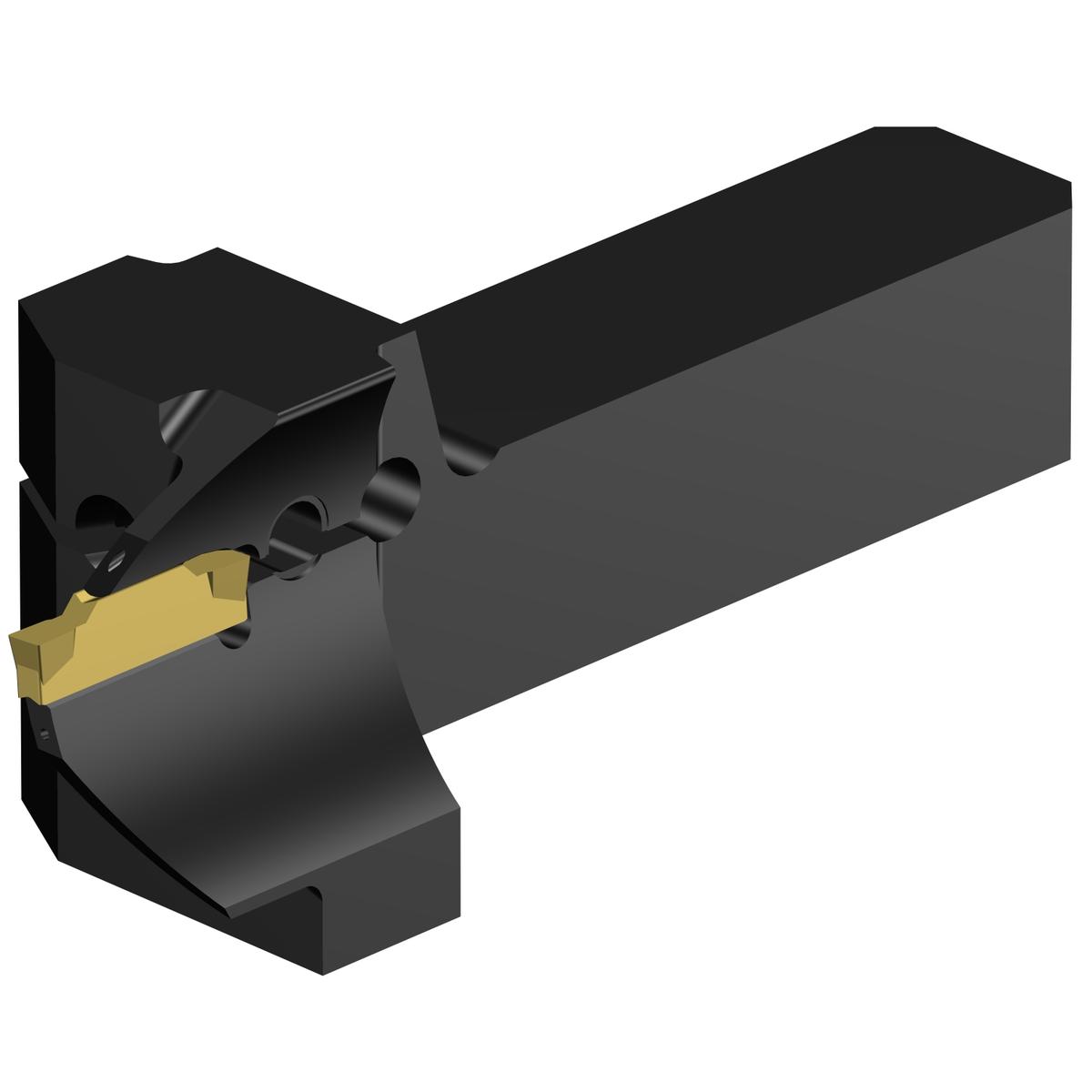

Sandvik Coromant 6537535
Specifications
| Overall Length (Metric) | 100.87 |
|---|---|
| Series | CoroCut 1-2 |
| Overall Length (Inch) | 3.97 |
| Insert Style | QS-R/LF123..C..E..B |
| Short Description | CoroCut® 1-2 QS shank tool for face grooving |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Shank Width | 0.75 Inch |
| Shank Width (Decimal) | 0.87 |
| Shank Width (Metric) | 19.05 |
| Shank Height (Metric) | 19.05 |
| Coolant Entry Thread Size | G1/8-28 |
| Overall Height (Metric) | 19.05 |
| Overall Height (Decimal) | 0.75 |
| Overall Length | 3.97 Inch |
| Insert Compatibility | N123G2-0300-0003-TF |
| ANSI Code | QS-RF123G055C12E-034B |
| Coolant Through | Yes |
| Overall Width (Decimal) | 0.77 |
| Overall Width (Metric) | 19.55 |
| Shank Height (Decimal) | 0.75 |
| Coolant Pressure | 2175.57 lbf/in2 |
| Clamping Type Code | Clamp |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 1073 |
| Max. Axial Groove Outside Diameter (Decimal) | 1.73 |
| Max. Axial Groove Outside Diameter (Metric) | 44 |
| Max. Cutting Depth (Decimal) | 0.55 |
| Max. Cutting Depth (Metric) | 13.97 |
| Max. Overhang (Decimal) | 2.21 |
| Max. Overhang (Metric) | 56.23 |
| Min. Axial Groove Inside Diameter (Decimal) | 1.34 |
| Min. Axial Groove Inside Diameter (Metric) | 34 |
| Min. Overhang (Decimal) | 1.46 |
| Min. Overhang (Metric) | 37.18 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.608 LB |
