Sandvik Coromant
6537565
Sandvik Coromant 6537565
Specifications
| Overall Length (Metric) | 126.82 |
|---|---|
| Series | CoroCut 1-2 |
| Overall Length (Inch) | 4.99 |
| Insert Style | QS-R/LF123..C..E..-B |

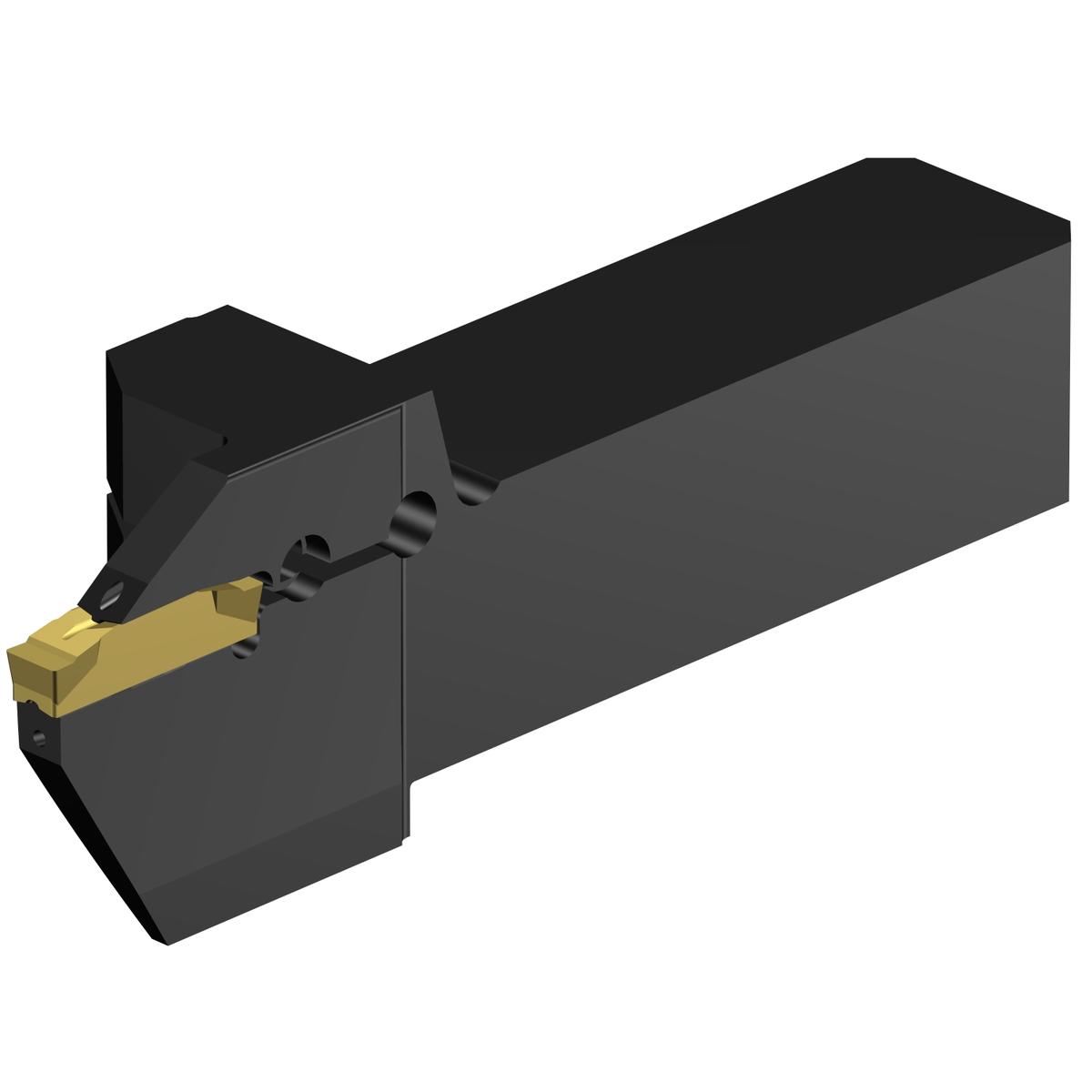

| Short Description | CoroCut® 1-2 QS shank tool for face grooving |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Shank Width | 25 mm |
| Shank Width (Decimal) | 0.87 |
| Shank Width (Metric) | 25 |
| Shank Height (Metric) | 25 |
| Coolant Entry Thread Size | G1/8-28 |
| Overall Height (Metric) | 25 |
| Overall Height (Decimal) | 0.98 |
| Overall Length | 126.82 mm |
| Insert Compatibility | N123K2-0600-0004-TF |
| ANSI Code | QS-RF123K25C2525E-220B |
| Coolant Through | Yes |
| Overall Width (Decimal) | 1 |
| Overall Width (Metric) | 25.5 |
| Shank Height (Decimal) | 0.98 |
| Coolant Pressure | 2175.57 lbf/in2 |
| Clamping Type Code | Clamp |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 1073 |
| Max. Axial Groove Outside Diameter (Decimal) | 19.69 |
| Max. Axial Groove Outside Diameter (Metric) | 500 |
| Max. Cutting Depth (Decimal) | 0.98 |
| Max. Cutting Depth (Metric) | 25 |
| Max. Overhang (Decimal) | 2.67 |
| Max. Overhang (Metric) | 67.82 |
| Min. Axial Groove Inside Diameter (Decimal) | 8.66 |
| Min. Axial Groove Inside Diameter (Metric) | 220 |
| Min. Overhang (Decimal) | 1.69 |
| Min. Overhang (Metric) | 42.82 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 1.105 LB |
