Sandvik Coromant
6537639
Sandvik Coromant 6537639
Specifications
| Shank Diameter (Metric) | 33 |
|---|---|
| Material | Steel |
| Shank Diameter (Inch) | 1.3 |
| Series | Coromant EH |

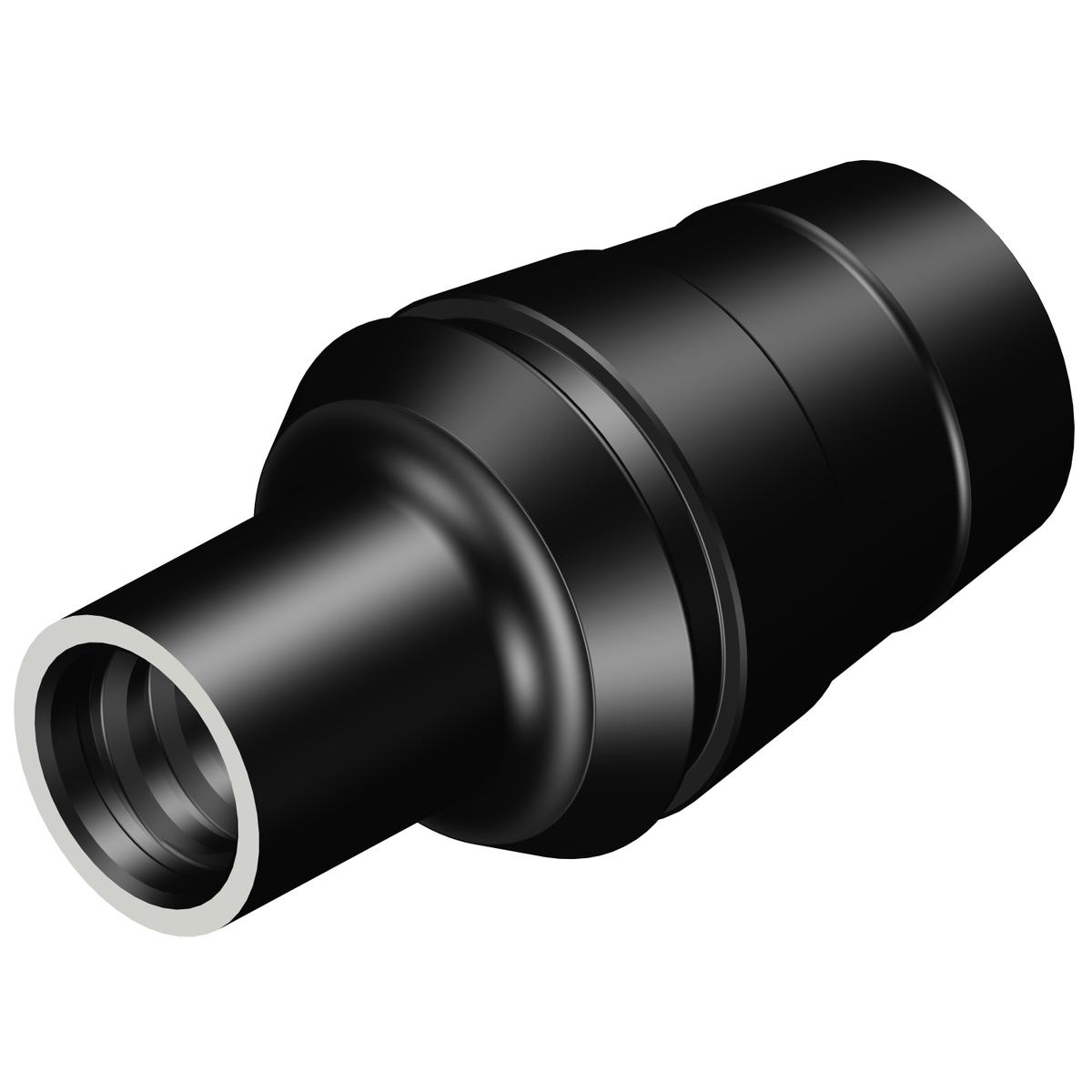

| Short Description | ER to Coromant EH adaptor |
| Unit Of Measure | Metric |
| Shank Diameter | 33 mm |
| Overall Length | 31.5 mm |
| Overall Length (Decimal) | 1.24 |
| Overall Length (Metric) | 31.5 |
| ANSI Code | EH-ER32-20-022 |
| Coolant Through | Yes |
| Body Diameter (Decimal) | 0.76 |
| Body Diameter (Metric) | 19.2 |
| Body Length (Decimal) | 0.74 |
| Body Length (Metric) | 18.9 |
| Functional Diameter (Decimal) | 1.26 |
| Functional Diameter (Metric) | 32 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 36.878 |
| Torque (NM) | 50 |
| Coolant Pressure (Bar) | 80 |
| Coolant Entry Style Code | 1: axial concentric entry |
| Coolant Exit Style Code | 1: axial concentric exit |
| Balanced by Design | Yes |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 2018 |
| Body Length (Inch) | 0.74 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 25000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.745 LB |
