Sandvik Coromant
6537652

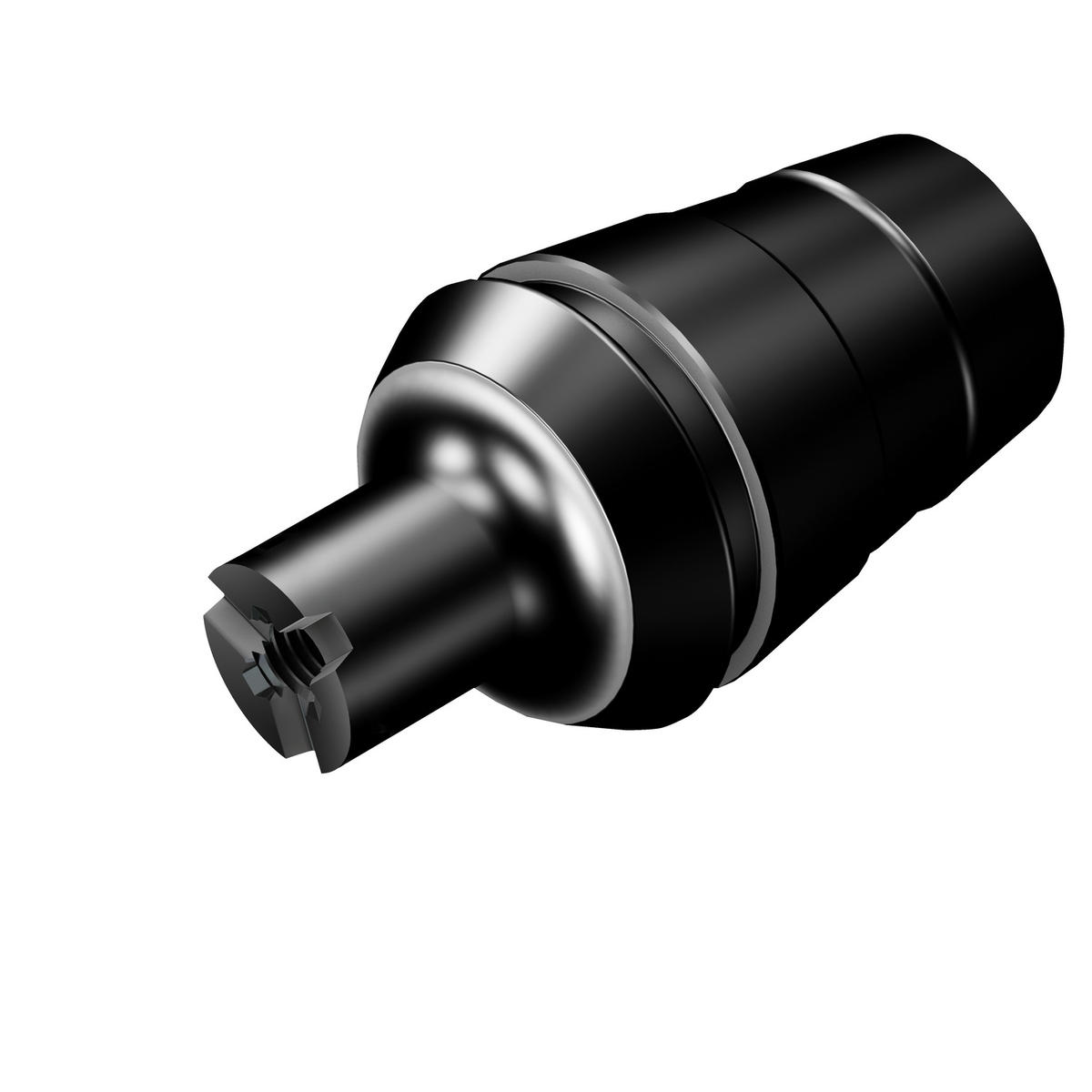

Sandvik Coromant 6537652
Specifications
| Shank Diameter (Metric) | 33 |
|---|---|
| Material | Steel |
| Shank Diameter (Inch) | 1.3 |
| Series | CoroMill 327 |
| Short Description | ER to CoroMill® 327 adaptor |
| Unit Of Measure | Metric |
| Shank Diameter | 33 mm |
| Overall Length | 34.2 mm |
| Overall Length (Decimal) | 1.35 |
| Overall Length (Metric) | 34.2 |
| ANSI Code | 327-ER32-12-030 |
| Coolant Through | No |
| Body Diameter (Decimal) | 0.47 |
| Body Diameter (Metric) | 12 |
| Body Length (Decimal) | 0.97 |
| Body Length (Metric) | 24.6 |
| Functional Diameter (Decimal) | 1.26 |
| Functional Diameter (Metric) | 32 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 4.794 |
| Torque (NM) | 6.5 |
| Coolant Entry Style Code | 0: without coolant |
| Coolant Exit Style Code | 0: no coolant exit |
| Balanced by Design | Yes |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Turkey |
| Base Item Number | 1018 |
| Body Length (Inch) | 0.97 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 25000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.677 LB |
