Sandvik Coromant
6537713

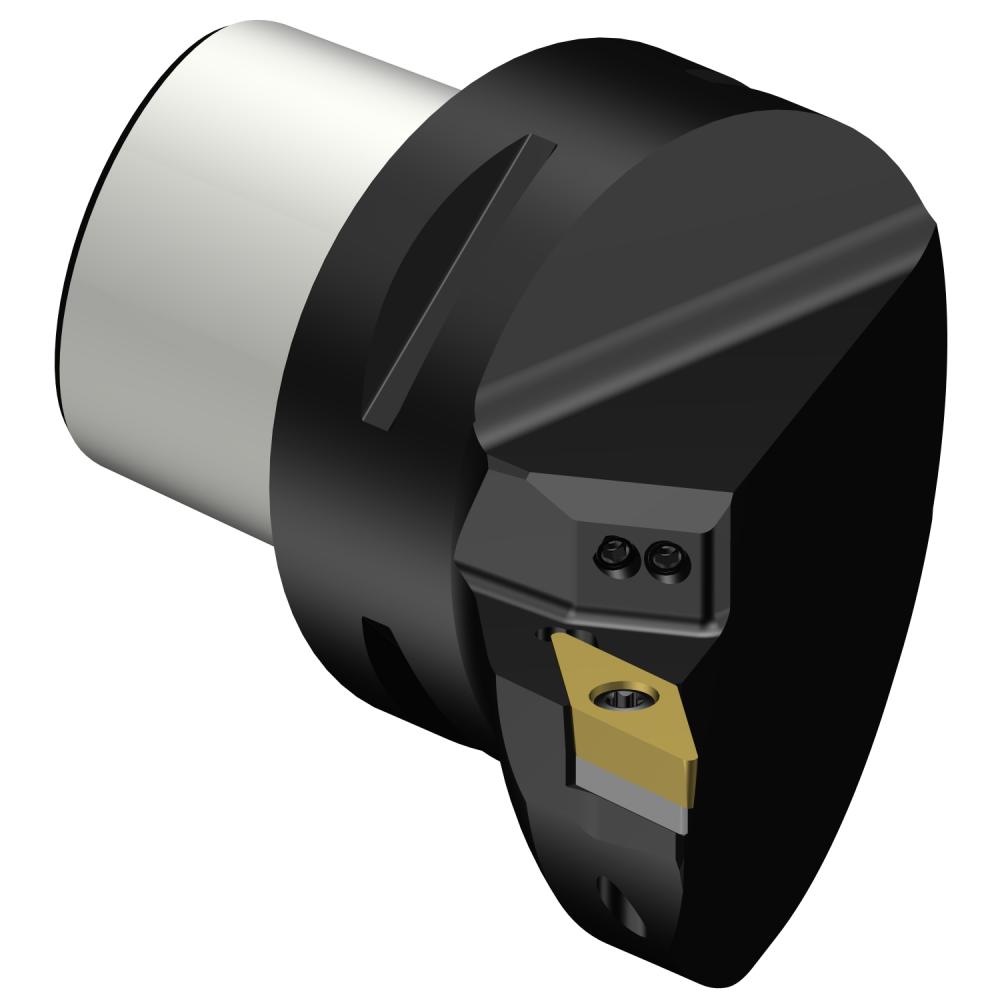

Sandvik Coromant 6537713
Specifications
| Center to Cutting Edge (Inch) | 1.77 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 7.48 |
| Size | C6 |
| Series | CoroTurn 107 |
| Bore Diameter (Metric) | 190 |
| Center to Cutting Edge (Metric) | 45 |
| Short Description | CoroTurn® 107 cutting unit for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 45 mm |
| Insert Style | VBMT 160408/VCMT 160408 |
| ANSI Code | C6-SVJBL-45065-16HPA |
| Connection Diameter (Decimal) | 2.48 |
| Connection Diameter (Metric) | 63 |
| Clamping Type Code | Screw/Clamp |
| Coolant Pressure | 2175.57 lbf/in2 |
| Torque | 3 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | 0 degrees |
| Orthogonal Rake Angle | 0 degrees |
| Tool Cutting Edge Angle | 93 degrees |
| Tool Lead Angle | -3 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 8: Decentral Focused Exit With Nozzles |
| Country of Origin | India |
| Base Item Number | 1053 |
| Max. Hole Depth | 65 mm |
| Max. Hole Depth (Decimal) | 2.56 |
| Max. Hole Depth (Metric) | 65 |
| Max. Overhang (Decimal) | 2.56 |
| Max. Overhang (Metric) | 65 |
| Maximum Ramping Angle | 50 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.306 LB |
| Height Packed Product Metric | 106 mm |
| Height Packed Product Imperial | 4.173 inch |
| ISO Code (packed) | C6-SVJBL-45065-16HPA |
| Length Packed Product Metric | 115 mm |
| Life Cycle State | 30 |
| ISO Code (unpacked) | C6-SVJBL-45065-16HPA |
| Length Packed Product Imperial | 4.528 inch |
