Sandvik Coromant
6571215

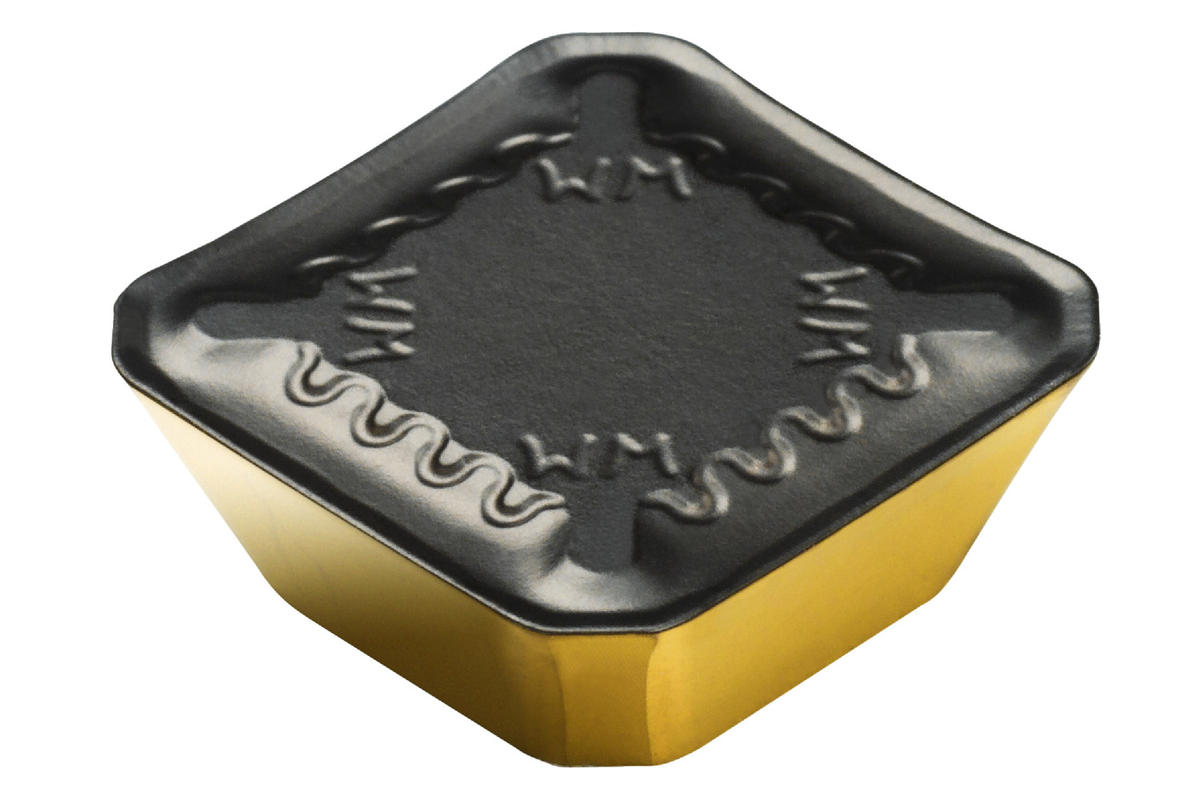

Sandvik Coromant 6571215
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | TiCN+Al2O3+TiN |
| Thickness (Metric) | 4.76 |
| Thickness (Inch) | 0.19 |
| Short Description | Insert for milling |
| Shape | Square |
| Style | SEKR |
| Unit Of Measure | Metric |
| Country of Origin | Brazil |
| Series | ModulMill |
| Size | 1504 |
| Grade | 4230 |
| Inscribed Circle Diameter | 15.88 mm |
| Thickness | 4.76 mm |
| Chip Breaker Type | WM |
| Length (Decimal) | 0.5 |
| Inscribed Circle Diameter (Decimal) | 0.63 |
| Inscribed Circle Diameter (Metric) | 15.88 |
| ANSI Code | SEKR 15 04 AZ-WM 4230 |
| ISO Code | SEKR 15 04 AZ-WM 4230 |
| Hand of Insert | Neutral |
| Coner Radius (Inch) | 0.06 |
| Coner Radius (Metric) | 1.5 |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Clamp |
| Wiper Edge Length (Decimal) | 0.06 |
| Wiper Edge Length (Metric) | 1.6 |
| Major Cutting Edge Angle | 45 degrees |
| Rake Angle | 20 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| ISO Material Classification | PK |
| Base Item Number | 1019 |
| Insert Size | 1504 |
| Length | 12.7 mm |
| Max. Depth Of Cut (Decimal) | 0.34 |
| Max. Depth Of Cut (Metric) | 8.7 |
| Maximum Depth Of Cut (Inch) | 0.34 |
| Maximum Depth Of Cut (Metric) | 8.7 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.029 LB |
| Height Packed Product Metric | 11 mm |
| Insert Style | SEKR |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | SEKR1504AZ-WM4230 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | SEKR 15 04 AZ-WM 4230 |
| Length Packed Product Imperial | 3.74 inch |
