Sandvik Coromant
6583133
Sandvik Coromant 6583133
Specifications
| Material | Steel |
|---|---|
| Series | Coromant Capto |

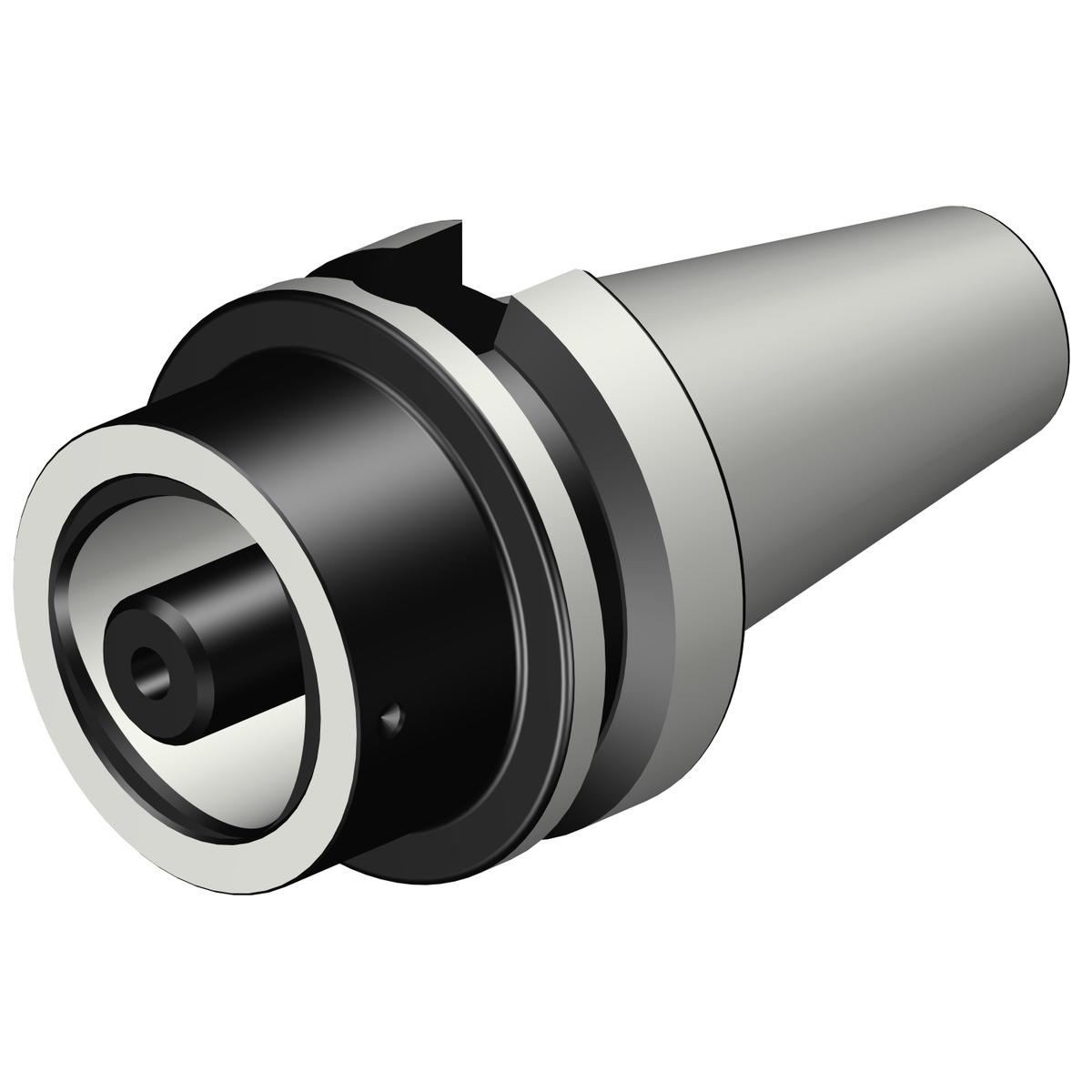

| Short Description | BIG-PLUS MAS-BT to Coromant Capto® adaptor |
| Unit Of Measure | Metric |
| Overall Length | 50 mm |
| Overall Length (Decimal) | 1.97 |
| Overall Length (Metric) | 50 |
| ANSI Code | C5-390B.555-40 050 |
| Coolant Through | Yes |
| Body Diameter (Decimal) | 2.48 |
| Body Diameter (Metric) | 63 |
| Body Length (Decimal) | 0.91 |
| Body Length (Metric) | 23 |
| Functional Diameter (Decimal) | 1.75 |
| Functional Diameter (Metric) | 44.45 |
| Connection Retention Knob Thread Size | M16 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 70.068 |
| Torque (NM) | 95 |
| Coolant Pressure (Bar) | 80 |
| Coolant Entry Style Code | 7: decentral over flange and axial |
| Coolant Exit Style Code | 1: axial concentric exit |
| Balanced by Design | Yes |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 1147 |
| Body Length (Inch) | 0.91 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.465 LB |
