Sandvik Coromant
6605252
Sandvik Coromant 6605252
Specifications
| ANSI Code | QD-LR1F26C21D |
|---|---|
| Base Item Number | 2061 |
| Blade Style | QD-LR..C..D |
| Coolant Entry Style Code | 2: Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Coolant Pressure | 1015.26 lbf/in2 |
| Coolant Through | Yes |
| Country of Origin | Sweden |
| Direction Of Hand | Right |
| Insert Seat Size Code | F |
| Insert Style | QD-NF-0250-0002-CM |
| Max. Cutting Depth (Decimal) | 1.02 |
| Max. Cutting Depth (Metric) | 26 |
| Max. Overhang (Decimal) | 1.02 |
| Max. Overhang (Metric) | 26 |
| Max. Work Piece Parting Diameter (Decimal) | 2.05 |
| Max. Work Piece Parting Diameter (Metric) | 52 |
| Min. Overhang (Decimal) | 0.67 |
| Min. Overhang (Metric) | 17 |
| Overall Height (Inch) | 0.84 |
| Overall Height (Metric) | 21.4 |
| Overall Length | 110 mm |
| Overall Length (Inch) | 4.33 |
| Overall Length (Metric) | 110 |
| Overall Width | 8.25 mm |
| Overall Width (Decimal) | 0.33 |
| Overall Width (Metric) | 8.25 |
| Product Type | Industrial Supplies |
| Series | CoroCut QD |
| Shank Height | 25.9 mm |
| Shank Height (Inch) | 1.02 |
| Shank Height (Metric) | 25.9 |

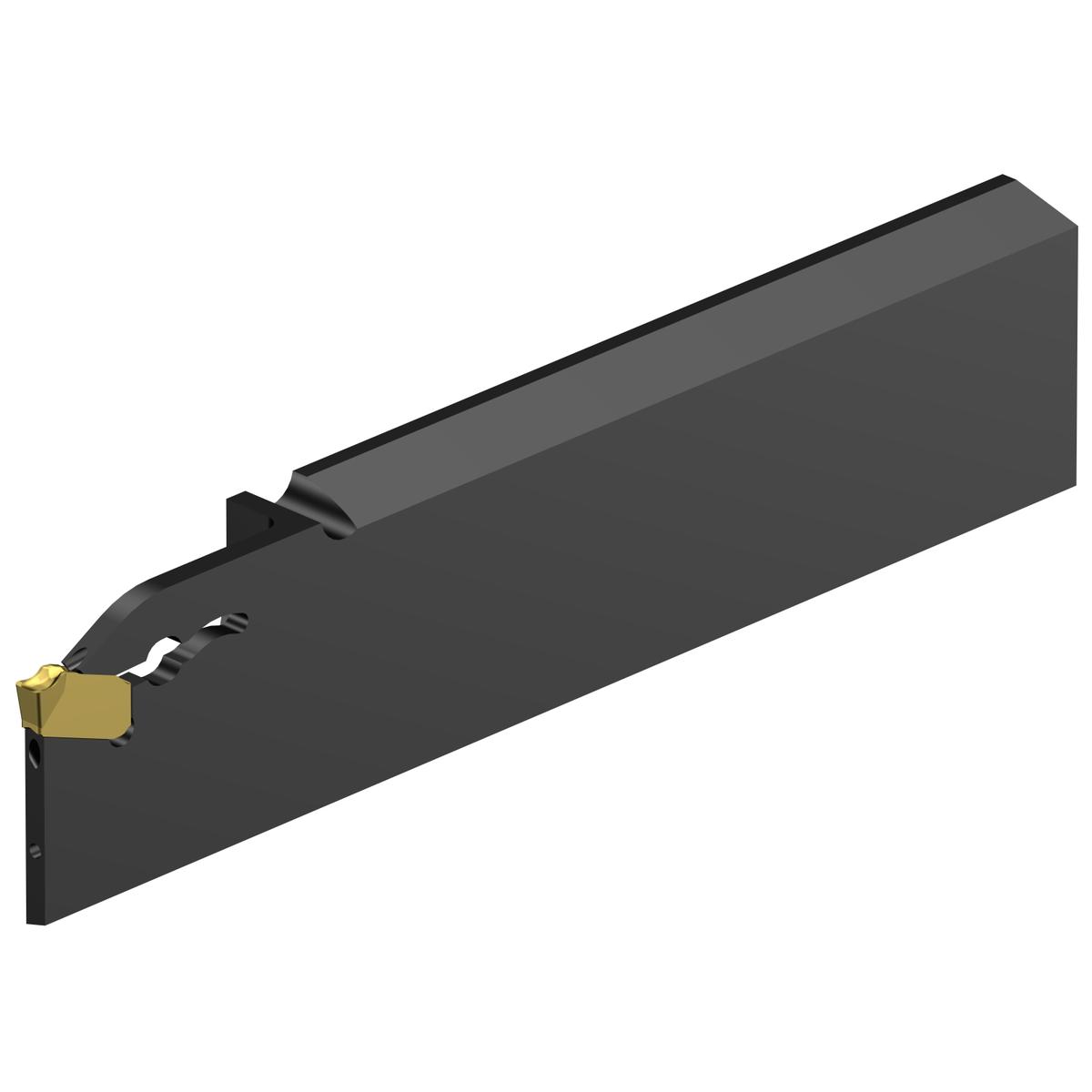

| Short Description | CoroCut® QD blade for parting |
| Unit of Measure | Metric |
| Unit Of Measure | Metric |
| Weight | 0.291 LB |
| Workpiece Side Body Angle | 0 degrees |
