Sandvik Coromant
6657068

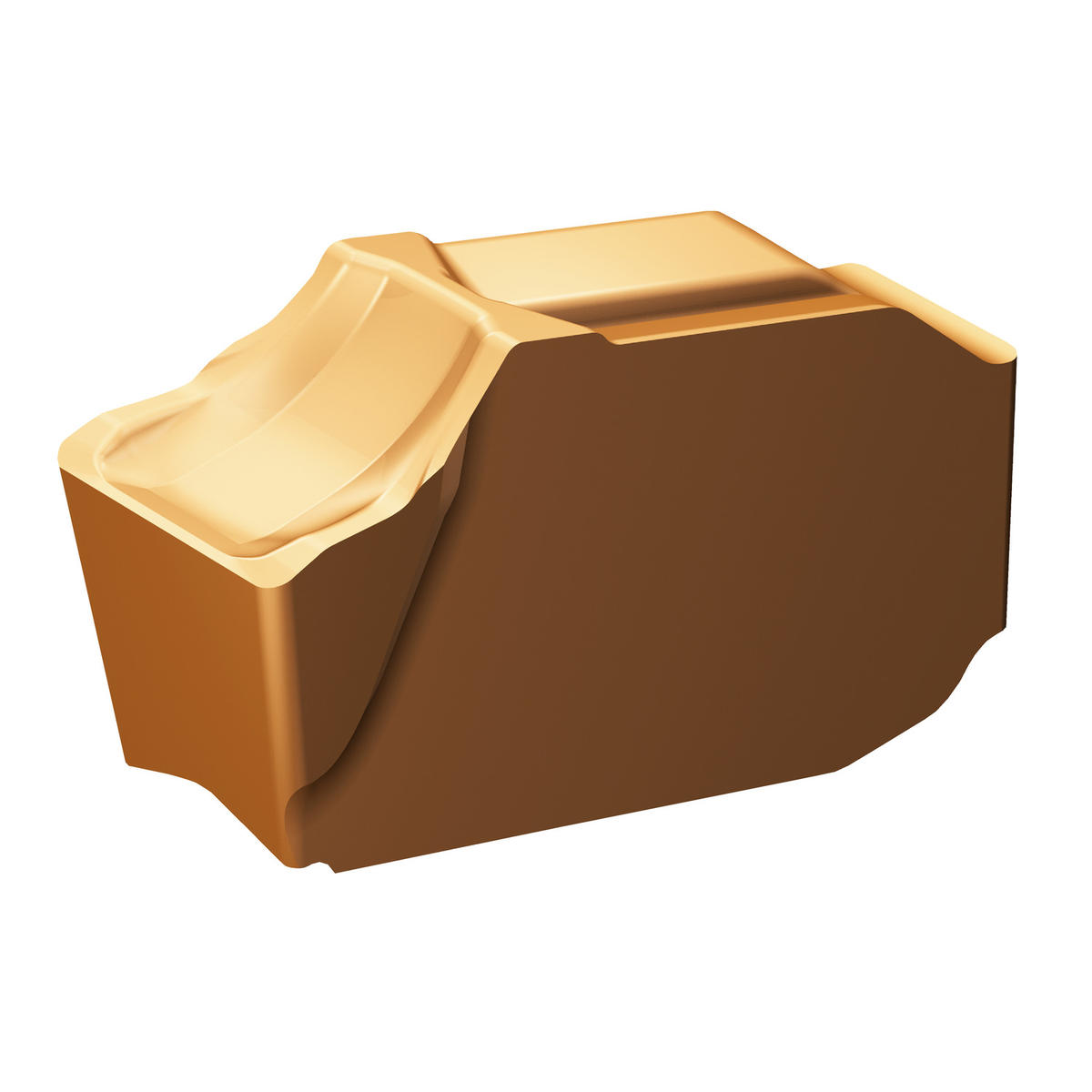

Sandvik Coromant 6657068
Specifications
| Size | H |
|---|---|
| Chip Breaker Type | KM |
| Coating/Finish | TiAlN |
| Material | WC or Cermet |
| Base Item Number | 2070 |
| Cutting Width (Inch) | 0.16 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.007 LB |
| Unit Of Measure | Metric |
| Short Description | CoroMill® QD insert for grooving |
| Series | CoroMill QD |
| Style | QD-N |
| Grade | 1020 |
| Cutting Width | 4 mm |
| Cutting Width (Decimal) | 0.16 |
| Cutting Width (Metric) | 4 |
| ANSI Code | QD-NH-0400-040M-KM 1020 |
| ISO Code | QD-NH-0400-040M-KM 1020 |
| Insert Seat Size Code | H |
| Hand of Insert | Neutral |
| Coating Process Type | PVD |
| Operation Type | Medium |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 1 |
| Clearance Angle Major | 7 degrees |
| Machine Side Body Angle | 0 degrees |
| Corner Radius Left (Decimal) | 0.02 |
| Corner Radius Left (Metric) | 0.4 |
| Corner Radius Right (Decimal) | 0.02 |
| Corner Radius Right (Metric) | 0.4 |
| Cutting Width Lower Tolerance (Decimal) | 0.000197 |
| Cutting Width Lower Tolerance (Metric) | 0.01 |
| Cutting Width Upper Tolerance (Decimal) | 0.004134 |
| Cutting Width Upper Tolerance (Metric) | 0.11 |
| Application | Turning, Parting/Grooving |
| ISO Material Classification | K |
| Country of Origin | Sweden |
| Height Packed Product Metric | 11 mm |
| Insert Style | QD-N |
| Height Packed Product Imperial | 0.433 inch |
| ISO Code (packed) | QD-NH-0400-040M-KM1020 |
| Insert Size | H |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | QD-NH-0400-040M-KM 1020 |
| Length Packed Product Imperial | 3.74 inch |
