Sandvik Coromant
6657440
Sandvik Coromant 6657440
Specifications
| Overall Length (Inch) | 0.11 |
|---|---|
| Overall Length (Metric) | 2.70 |
| Max. Cutting Depth (Decimal) | 1.22 |
| Max. Cutting Depth (Metric) | 31 |

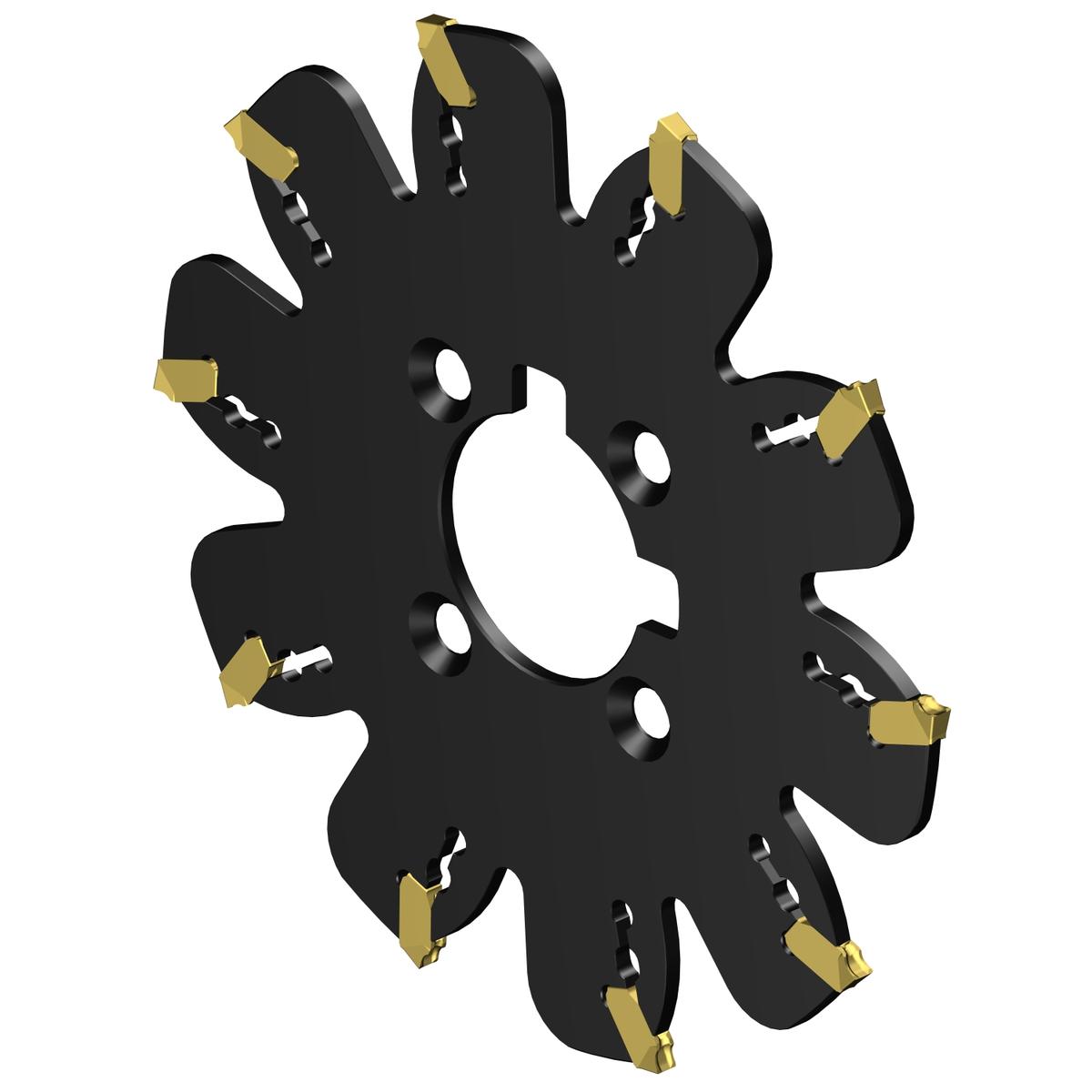

| Short Description | CoroMill® QD indexable grooving and parting off cutter |
| Coolant Through | No |
| Number Of Inserts | 10 |
| Hole Diameter | 32 mm |
| Diameter Bolt Circle (Decimal) | 1.77 |
| Cutting Edge Count | 10 |
| ANSI Code | QD-G-125X32-M |
| Height Packed Product Metric | 18 mm |
| Height Packed Product Imperial | 0.709 inch |
| ISO Code (packed) | QD-G-125X32-M |
| Direction Of Hand | Right |
| Diameter Bolt Circle (Metric) | 45 |
| Cutting Width (Decimal) | 0.12 |
| Cutting Diameter (Decimal) | 4.92 |
| Length Packed Product Metric | 182 mm |
| Max. Cutting Depth | 31 mm |
| Series | CoroMill QD |
| Cutting Diameter | 125 mm |
| Coolant Entry Style Code | 0: Without Coolant |
| Life Cycle State | 20 |
| Cutting Width (Metric) | 3 |
| Hole Diameter (Decimal) | 1.26 |
| Cutting Width | 3 mm |
| ISO Code (unpacked) | QD-G-125X32-M |
| Max. Rotational Speed | 4900 1/min |
| Hole Diameter (Metric) | 32 |
| Drive Count | 2 |
| Length Packed Product Imperial | 7.165 inch |
| Cutting Diameter (Metric) | 125 |
