Sandvik Coromant
6657443
Sandvik Coromant 6657443
Specifications
| Overall Length (Inch) | 0.11 |
|---|---|
| Overall Length (Metric) | 2.70 |
| Max. Cutting Depth (Decimal) | 3.35 |
| Max. Cutting Depth (Metric) | 85 |

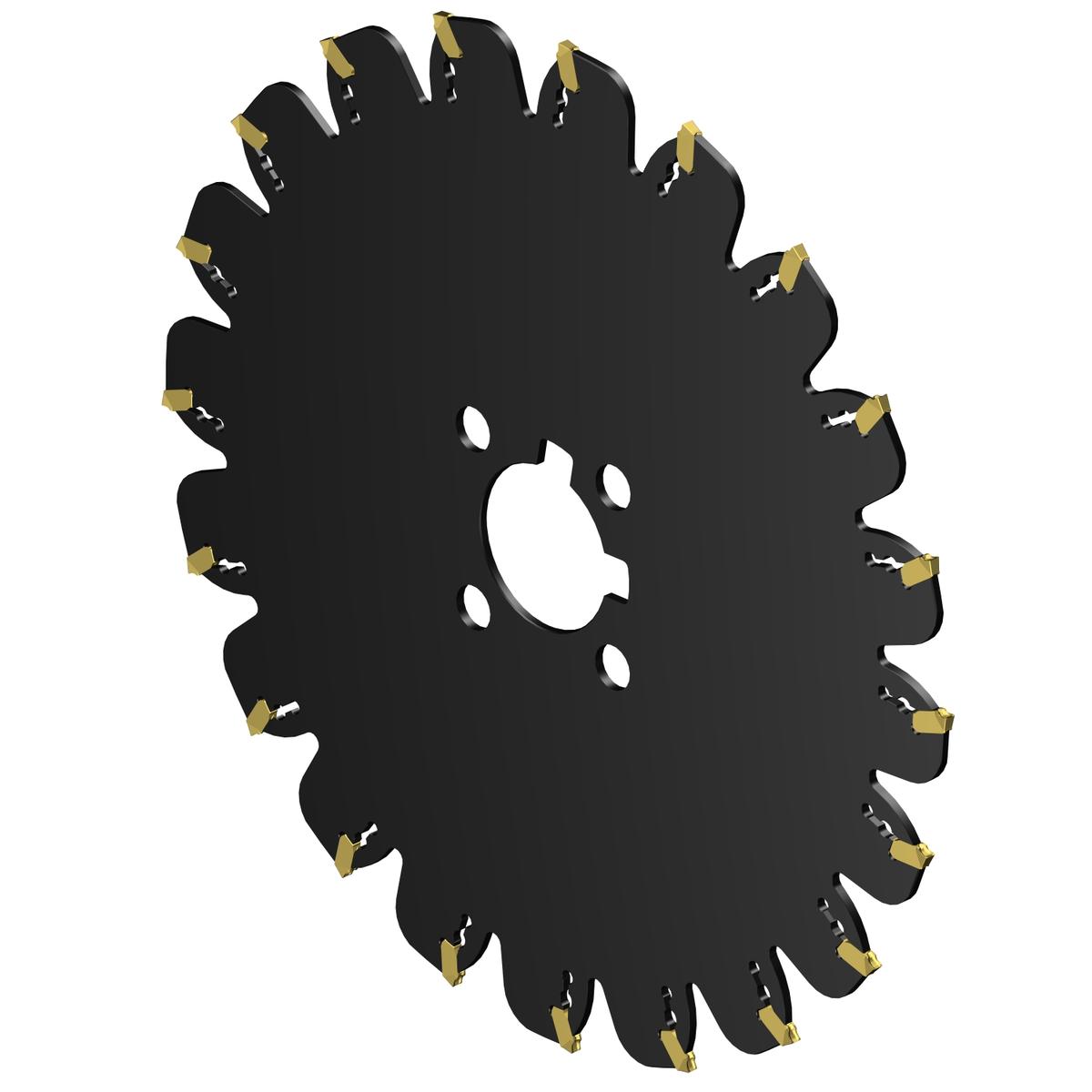

| Short Description | CoroMill® QD indexable grooving and parting off cutter |
| Coolant Through | No |
| Number Of Inserts | 20 |
| Hole Diameter | 40 mm |
| Diameter Bolt Circle (Decimal) | 2.48 |
| Cutting Edge Count | 20 |
| ANSI Code | QD-G-250X40-M |
| Height Packed Product Metric | 18 mm |
| Height Packed Product Imperial | 0.709 inch |
| ISO Code (packed) | QD-G-250X40-M |
| Direction Of Hand | Right |
| Diameter Bolt Circle (Metric) | 63 |
| Cutting Width (Decimal) | 0.12 |
| Cutting Diameter (Decimal) | 9.84 |
| Length Packed Product Metric | 280 mm |
| Max. Cutting Depth | 85 mm |
| Series | CoroMill QD |
| Cutting Diameter | 250 mm |
| Coolant Entry Style Code | 0: Without Coolant |
| Life Cycle State | 20 |
| Cutting Width (Metric) | 3 |
| Hole Diameter (Decimal) | 1.58 |
| Cutting Width | 3 mm |
| ISO Code (unpacked) | QD-G-250X40-M |
| Max. Rotational Speed | 3400 1/min |
| Hole Diameter (Metric) | 40 |
| Drive Count | 2 |
| Length Packed Product Imperial | 11.024 inch |
| Cutting Diameter (Metric) | 250 |
