Sandvik Coromant
6657479
Sandvik Coromant 6657479
Specifications
| Overall Length (Inch) | 0.11 |
|---|---|
| Overall Length (Metric) | 2.79 |
| Max. Cutting Depth (Decimal) | 2.43 |
| Max. Cutting Depth (Metric) | 61.60 |

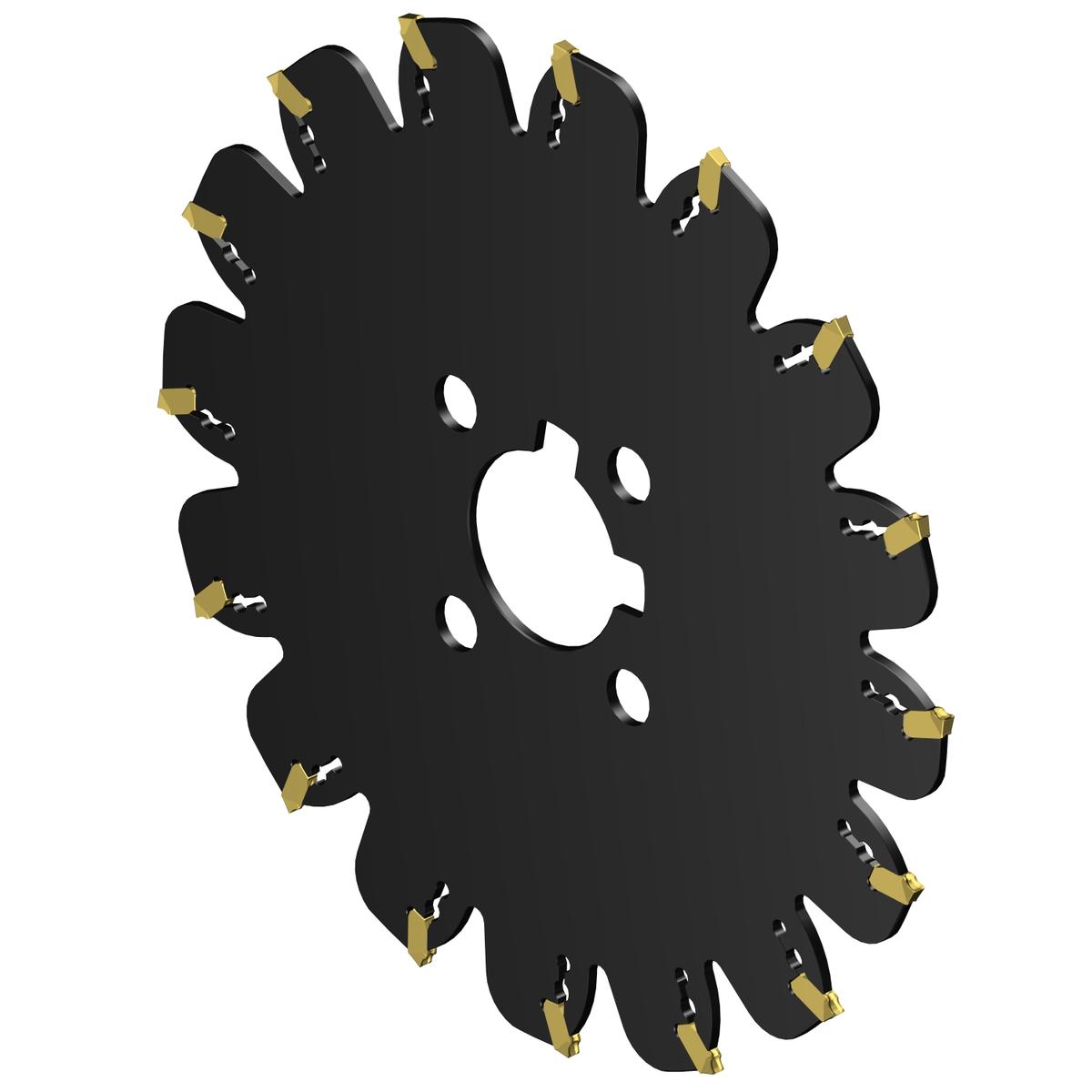

| Short Description | CoroMill® QD indexable grooving and parting off cutter |
| Coolant Through | No |
| Number Of Inserts | 16 |
| Hole Diameter | 1.5 Inch |
| Diameter Bolt Circle (Decimal) | 2.48 |
| Cutting Edge Count | 16 |
| ANSI Code | AQD-G-203Y38-M |
| Height Packed Product Metric | 16 mm |
| Height Packed Product Imperial | 0.63 inch |
| ISO Code (packed) | AQD-G-203Y38-M |
| Direction Of Hand | Right |
| Diameter Bolt Circle (Metric) | 63 |
| Cutting Width (Decimal) | 0.13 |
| Cutting Diameter (Decimal) | 8 |
| Length Packed Product Metric | 270 mm |
| Max. Cutting Depth | 2.43 Inch |
| Series | CoroMill QD |
| Cutting Diameter | 8 Inch |
| Coolant Entry Style Code | 0: Without Coolant |
| Life Cycle State | 20 |
| Cutting Width (Metric) | 3.18 |
| Hole Diameter (Decimal) | 1.50 |
| Cutting Width | 0.13 Inch |
| ISO Code (unpacked) | AQD-G-203Y38-M |
| Max. Rotational Speed | 3800 1/min |
| Hole Diameter (Metric) | 38.10 |
| Drive Count | 2 |
| Length Packed Product Imperial | 10.63 inch |
| EAN Code | 26657479 |
| Cutting Diameter (Metric) | 203.20 |
