Sandvik Coromant
6657495
Sandvik Coromant 6657495
Specifications
| Overall Length (Inch) | 0.14 |
|---|---|
| Overall Length (Metric) | 3.65 |
| Max. Cutting Depth (Decimal) | 1.43 |
| Max. Cutting Depth (Metric) | 36.20 |

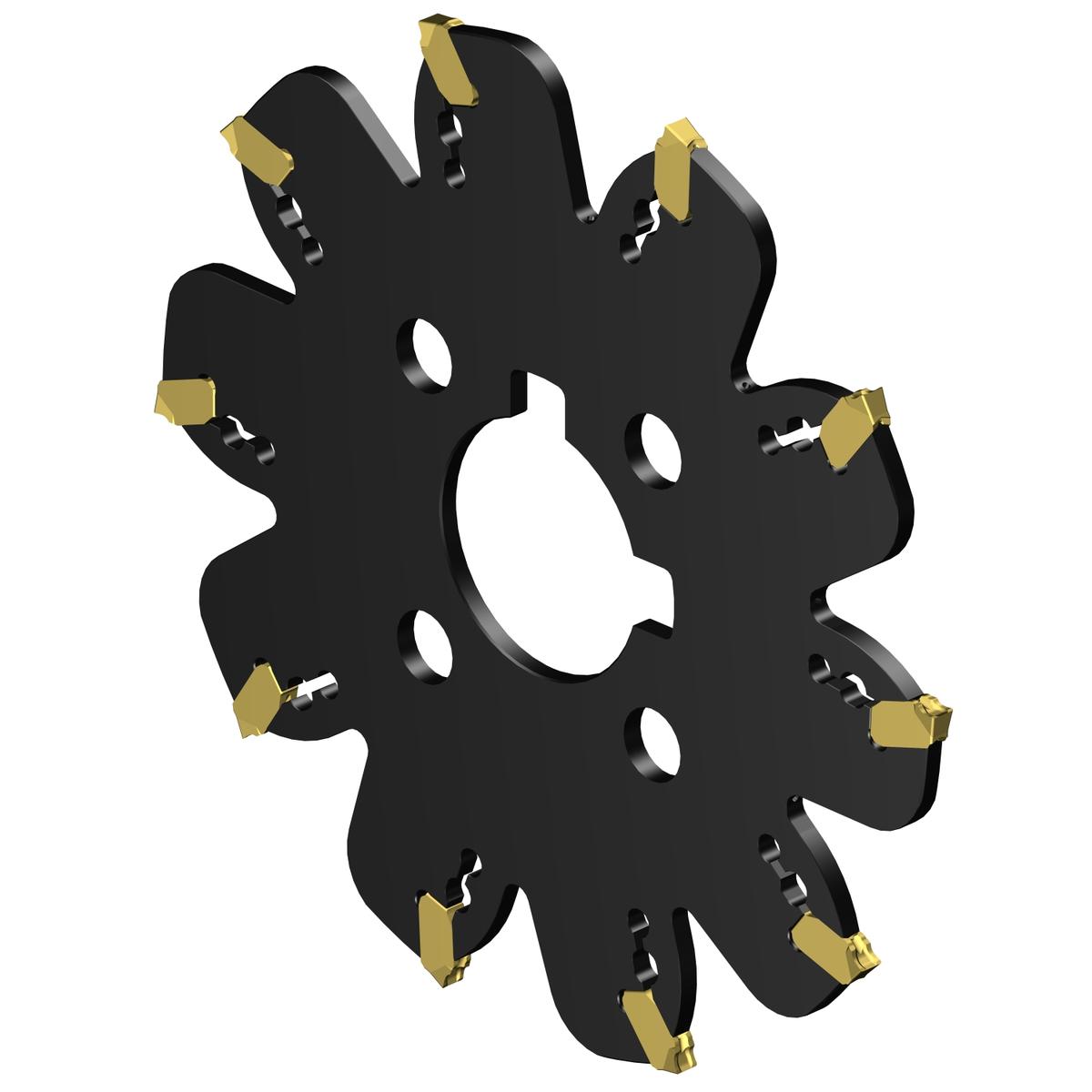

| Short Description | CoroMill® QD indexable grooving and parting off cutter |
| Coolant Through | Yes |
| Number Of Inserts | 10 |
| Coolant Pressure (lbf/in2) | 1015.26 |
| Hole Diameter | 1.5 Inch |
| Diameter Bolt Circle (Decimal) | 2.48 |
| Cutting Edge Count | 10 |
| ANSI Code | AQD-HC152Y38-M |
| Coolant Pressure (Bar) | 70 |
| Height Packed Product Metric | 18 mm |
| Height Packed Product Imperial | 0.709 inch |
| ISO Code (packed) | AQD-HC152Y38-M |
| Direction Of Hand | Right |
| Diameter Bolt Circle (Metric) | 63 |
| Cutting Width (Decimal) | 0.16 |
| Cutting Diameter (Decimal) | 6 |
| Length Packed Product Metric | 182 mm |
| Max. Cutting Depth | 1.43 Inch |
| Series | CoroMill QD |
| Cutting Diameter | 6 Inch |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Life Cycle State | 20 |
| Cutting Width (Metric) | 4 |
| Hole Diameter (Decimal) | 1.50 |
| Cutting Width | 0.16 Inch |
| ISO Code (unpacked) | AQD-HC152Y38-M |
| Max. Rotational Speed | 3600 1/min |
| Hole Diameter (Metric) | 38.10 |
| Drive Count | 2 |
| Length Packed Product Imperial | 7.165 inch |
| Cutting Diameter (Metric) | 152.40 |
