Sandvik Coromant
6657539
Sandvik Coromant 6657539
Specifications
| Overall Length (Inch) | 0.18 |
|---|---|
| Overall Length (Metric) | 4.53 |
| Max. Cutting Depth (Decimal) | 1.02 |
| Max. Cutting Depth (Metric) | 25.80 |

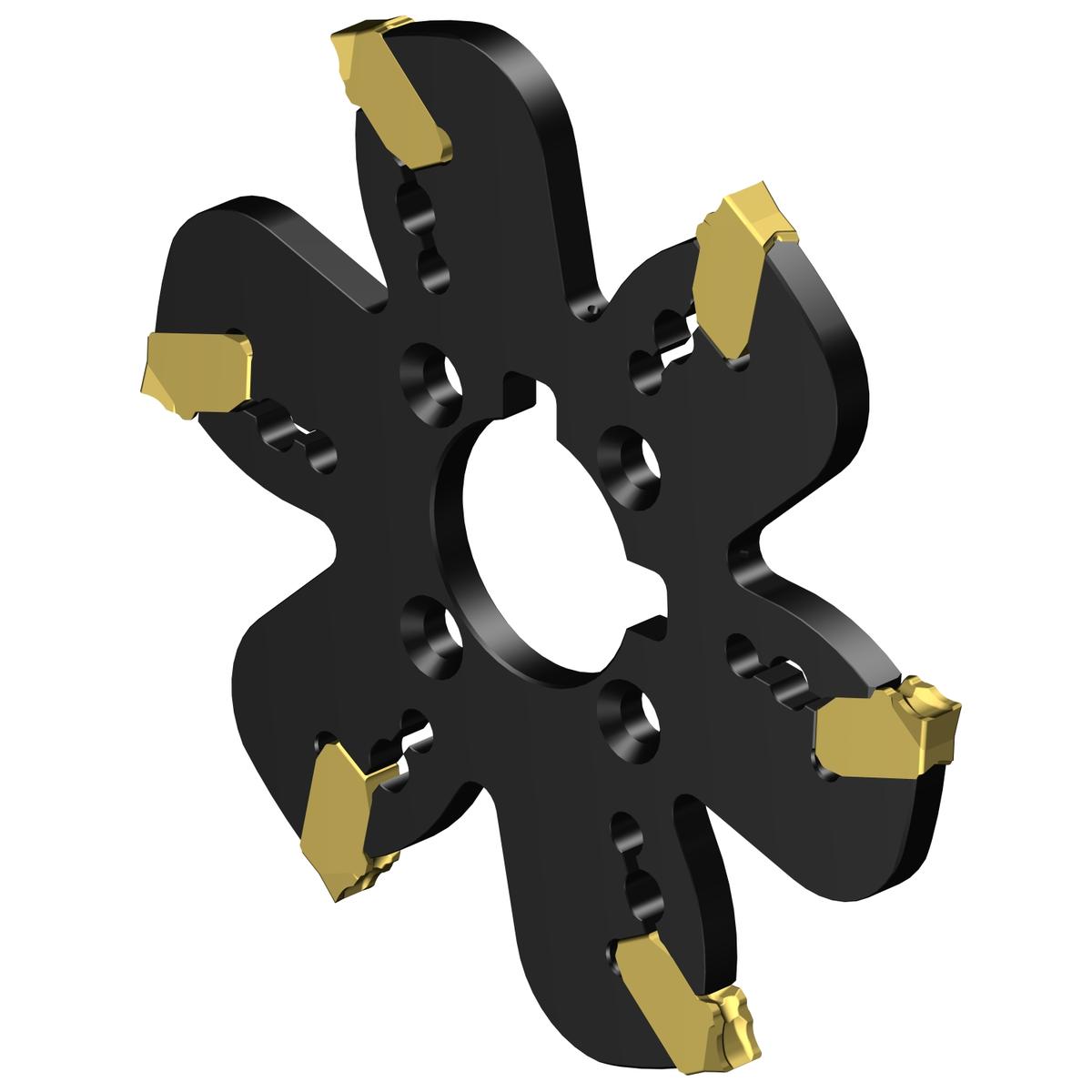

| Short Description | CoroMill® QD indexable grooving and parting off cutter |
| Coolant Through | Yes |
| Number Of Inserts | 6 |
| Coolant Pressure (lbf/in2) | 1015.26 |
| Hole Diameter | 1 Inch |
| Diameter Bolt Circle (Decimal) | 1.42 |
| Cutting Edge Count | 6 |
| ANSI Code | AQD-JC102Y25-M |
| Coolant Pressure (Bar) | 70 |
| Height Packed Product Metric | 18 mm |
| Height Packed Product Imperial | 0.709 inch |
| ISO Code (packed) | AQD-JC102Y25-M |
| Direction Of Hand | Right |
| Diameter Bolt Circle (Metric) | 36 |
| Cutting Width (Decimal) | 0.19 |
| Cutting Diameter (Decimal) | 4 |
| Length Packed Product Metric | 118 mm |
| Max. Cutting Depth | 1.02 Inch |
| Series | CoroMill QD |
| Cutting Diameter | 4 Inch |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Life Cycle State | 20 |
| Cutting Width (Metric) | 4.76 |
| Hole Diameter (Decimal) | 1 |
| Cutting Width | 0.19 Inch |
| ISO Code (unpacked) | AQD-JC102Y25-M |
| Max. Rotational Speed | 3700 1/min |
| Hole Diameter (Metric) | 25.40 |
| Drive Count | 2 |
| Length Packed Product Imperial | 4.646 inch |
| Cutting Diameter (Metric) | 101.60 |
