Sandvik Coromant
6660405
Sandvik Coromant 6660405
Specifications
| Cutting Diameter (Metric) | 81 |
|---|---|
| Shank Diameter (Metric) | 80 |
| Series | CoroDrill 880 |
| Cutting Diameter (Inch) | 3.19 |
| Shank Diameter (Inch) | 3.15 |
| Depth x Diameter Ratio | 4 x D |

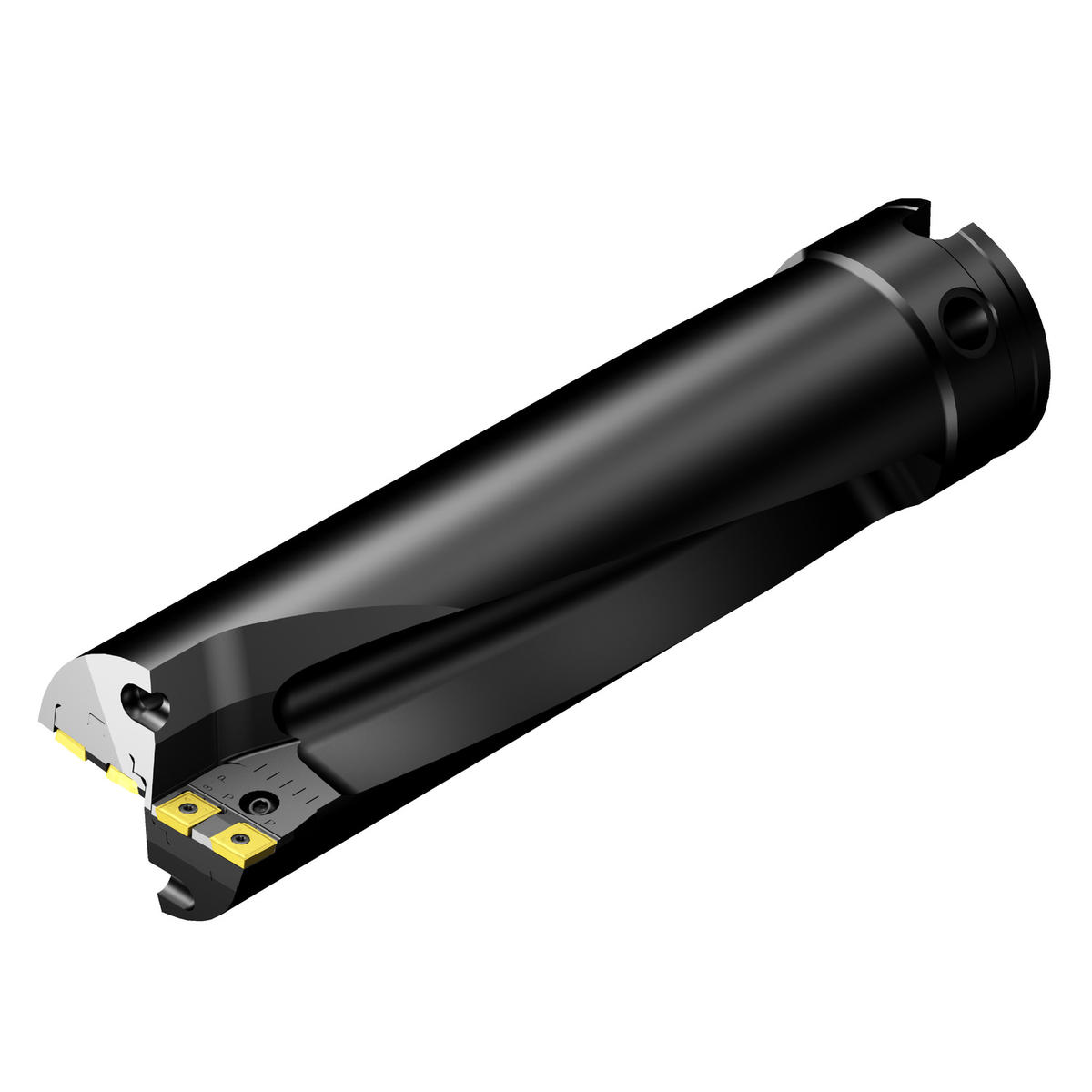

| Short Description | CoroDrill® 880 indexable insert drill |
| Unit Of Measure | Metric |
| Cutting Diameter | 81 mm |
| Shank Diameter | 80 mm |
| Coolant Through | Yes |
| ANSI Code | 880-D0810V80-04 |
| Overall Length (Decimal) | 17.09 |
| Overall Length (Metric) | 434 |
| Functional Length (Decimal) | 16.32 |
| Point Length (Decimal) | 0.06 |
| Point Length (Metric) | 1.5 |
| Functional Length (Metric) | 414.5 |
| Body Length (Decimal) | 14.63 |
| Body Length (Metric) | 371.61 |
| Usable Length (Decimal) | 13.23 |
| Usable Length (Metric) | 336 |
| Cutting Edge Angle | 88 degrees |
| Clamping Type Code | Screw/Clamp |
| Achievable Hole Tolerance Lower (Decimal) | -0.011811 |
| Achievable Hole Tolerance Lower (Metric) | -0.3 |
| Achievable Hole Tolerance Upper (Decimal) | 0.01 |
| Achievable Hole Tolerance Upper (Metric) | 0.3 |
| Usable Length Diameter Ratio | 4.148 |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Country of Origin | Netherlands |
| Base Item Number | 2013 |
| Body Length (Inch) | 14.63 |
| Max. Rotational Speed | 5000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 28.936 LB |
| Height Packed Product Metric | 262 mm |
| Height Packed Product Imperial | 10.315 inch |
| ISO Code (packed) | 880-D0810V80-04 |
| Length Packed Product Metric | 465 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 880-D0810V80-04 |
| Length Packed Product Imperial | 18.307 inch |
