Sandvik Coromant
6718006

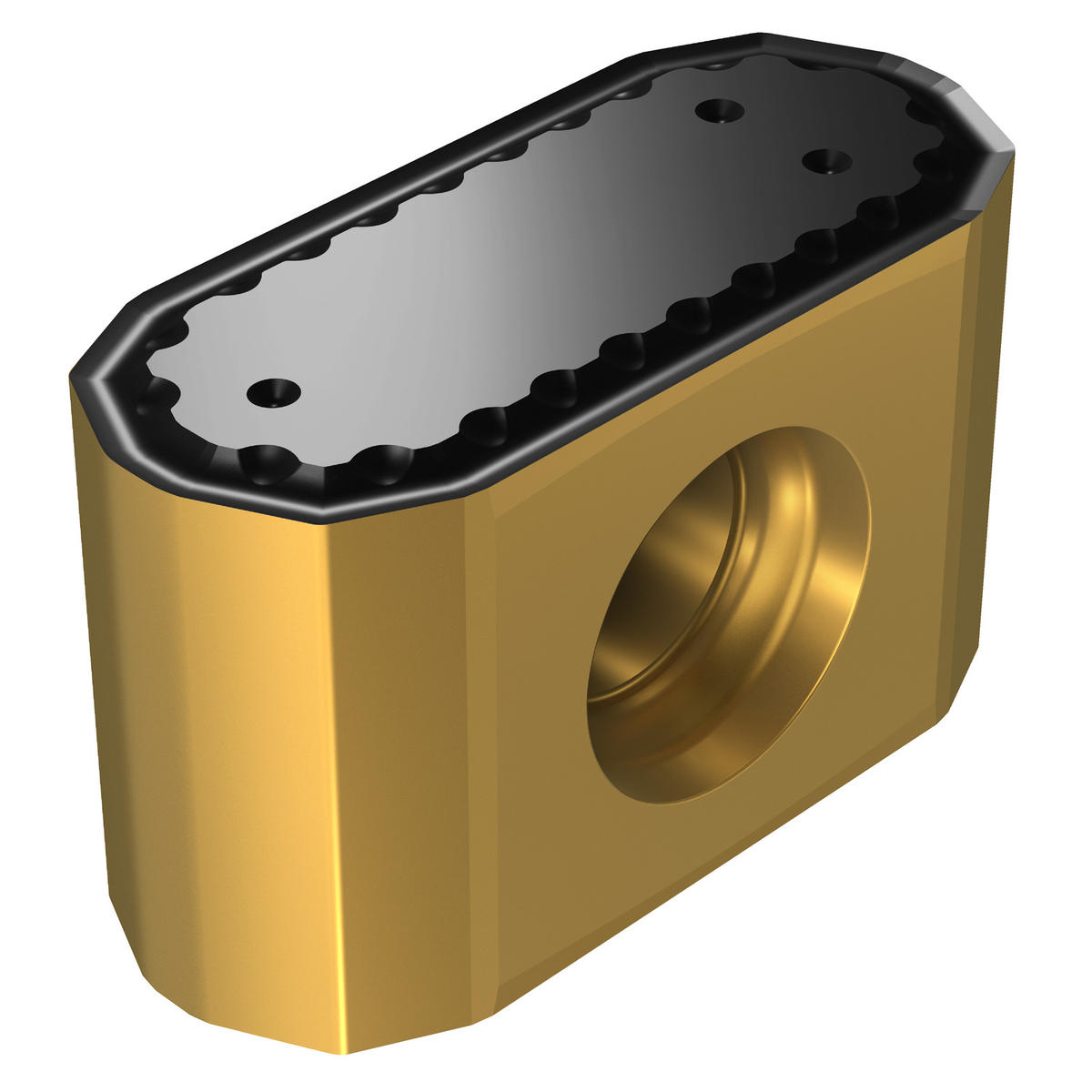

Sandvik Coromant 6718006
Specifications
| Material | WC or Cermet |
|---|---|
| Coating/Finish | TiCN+Al2O3+TiN |
| Thickness (Metric) | 10 |
| Thickness (Inch) | 0.39 |
| Short Description | CoroMill® 425 insert for milling |
| Shape | Rectangle |
| Style | 425N |
| Unit Of Measure | Metric |
| Width (Decimal) | 0.3 |
| Country of Origin | Sweden |
| Series | CoroMill 425 |
| Size | 1707 |
| Grade | 3220 |
| Thickness | 10 mm |
| Chip Breaker Type | KLW |
| Length (Decimal) | 0.08 |
| ANSI Code | 425N-1707E-KLW12 3220 |
| ISO Code | 425N-1707E-KLW12 3220 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.19 |
| Fixing Hole Diameter (Metric) | 4.7 |
| Coating Process Type | CVD |
| Operation Type | Light |
| Mounting Style | Screw/Clamp |
| Wiper Edge Length (Decimal) | 0.41 |
| Wiper Edge Length (Metric) | 10.43 |
| Major Cutting Edge Angle | 25 degrees |
| Rake Angle | 15 degrees |
| Corner Chamfer | 14 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 8 |
| Wiper Edge Radius (Decimal) | 49.21 |
| Wiper Edge Radius (Metric) | 1250 |
| Corner Chamfer Width (Decimal) | 0.015 |
| Corner Chamfer Width (Metric) | 0.39 |
| Application | Milling, General |
| ISO Material Classification | K |
| Base Item Number | 2072 |
| Insert Size | 1707 |
| Length | 2.12 mm |
| Max. Depth Of Cut (Decimal) | 0.04 |
| Max. Depth Of Cut (Metric) | 0.92 |
| Maximum Depth Of Cut (Inch) | 0.04 |
| Maximum Depth Of Cut (Metric) | 0.92 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.032 LB |
| Width | 7.5 mm |
| Height Packed Product Metric | 18 mm |
| Insert Style | 425N |
| Height Packed Product Imperial | 0.709 inch |
| ISO Code (packed) | 425N-1707E-KLW123220 |
| Length Packed Product Metric | 148 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 425N-1707E-KLW12 3220 |
| Length Packed Product Imperial | 5.827 inch |
