Sandvik Coromant
6718398

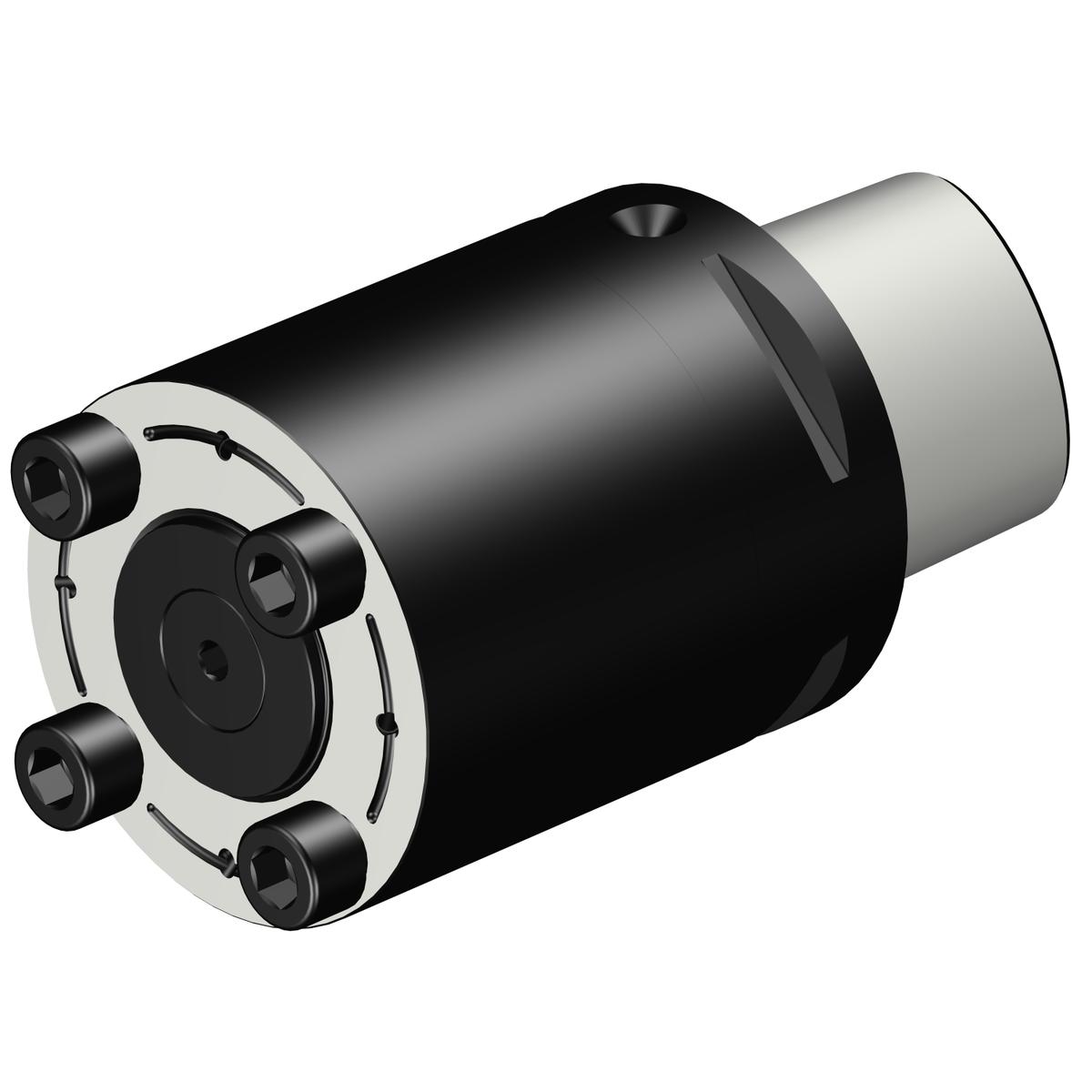

Sandvik Coromant 6718398
Specifications
| Shank Diameter (Metric) | 80 |
|---|---|
| Material | Steel |
| Shank Diameter (Inch) | 3.15 |
| Short Description | Coromant Capto® to arbor with driving screws adaptor |
| Unit Of Measure | Metric |
| Shank Diameter | 80 mm |
| Overall Length | 95 mm |
| Overall Length (Decimal) | 3.74 |
| Overall Length (Metric) | 95 |
| ANSI Code | C8-X40-080-095 |
| Coolant Through | Yes |
| Connection Size | C8 |
| Body Diameter (Decimal) | 3.15 |
| Body Diameter (Metric) | 80 |
| Body Length (Decimal) | 3.74 |
| Body Length (Metric) | 95 |
| Functional Diameter (Decimal) | 2.17 |
| Functional Diameter (Metric) | 55 |
| Clamping Length (Decimal) | 0.09 |
| Clamping Length (Metric) | 2.4 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 51.629 |
| Torque (NM) | 70 |
| Coolant Pressure (Bar) | 80 |
| Coolant Entry Style Code | 3: axial concentric and radial entry |
| Coolant Exit Style Code | 3: axial inclined exit |
| Standard | ISO26623-1 |
| Balanced by Design | Yes |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 2099 |
| Body Length (Inch) | 3.74 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Max. Rotational Speed | 8000 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 9.471 LB |
