Sandvik Coromant
6762664
Sandvik Coromant 6762664
Specifications
| Overall Length (Inch) | 4.41 |
|---|---|
| Series | CoroDrill 460 |
| Material | Solid Carbide |
| Overall Length (Metric) | 112 |
| Coating/Finish | TiAlN |

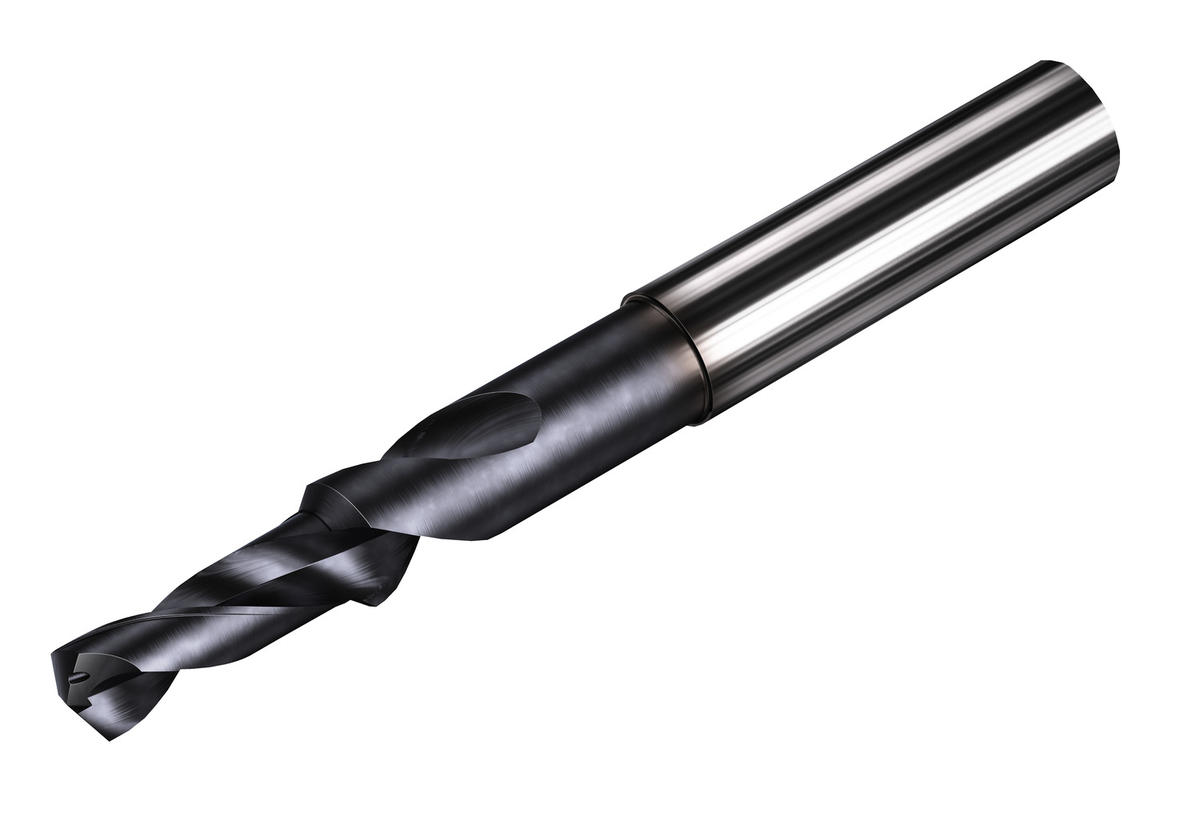

| Short Description | CoroDrill® 460 solid carbide step and chamfer drill |
| Unit Of Measure | Metric |
| Diameter | 9.3 mm |
| Shank Type | Cylindrical |
| Shank Size | 14 mm |
| ANSI Code | 460.2-0930-028A1-XM GC34 |
| Point Angle | 140 degrees |
| Coolant Through | Yes |
| Grade | GC34 |
| Coating Process Type | PVD |
| Depth x Diameter Ratio | 3 x D |
| Point Length (Decimal) | 0.06 |
| Point Length (Metric) | 1.4 |
| Step Diameter Length (Decimal) | 1.04 |
| Step Diameter Length (Metric) | 26.4 |
| Chip Flute Length (Decimal) | 1.97 |
| Chip Flute Length (Metric) | 50 |
| Functional Length (Decimal) | 4.35 |
| Functional Length (Metric) | 110.6 |
| Usable Length (Decimal) | 1.16 |
| Usable Length (Metric) | 29.4 |
| Step Included Angle | 90 degrees |
| Shank Diameter Tolerance | H6 |
| Achievable Hole Tolerance | H9 |
| Coolant Pressure (Bar) | 20 |
| Coolant Entry Style Code | 4: Axial Concentric Entry On Circle |
| Country of Origin | China |
| Base Item Number | 2050 |
| Coolant Pressure (lbf/in2) | 290.075 |
| Max. Regrinds | 3 |
| Max. Rotational Speed | 10268 1/min |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.425 LB |
| Height Packed Product Metric | 36 mm |
| Height Packed Product Imperial | 1.417 inch |
| ISO Code (packed) | 460.2-0930-028A1-XMGC34 |
| Length Packed Product Metric | 162 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 460.2-0930-028A1-XM GC34 |
| Length Packed Product Imperial | 6.378 inch |
| Substrate Type | Carbide |
