Sandvik Coromant
6763473

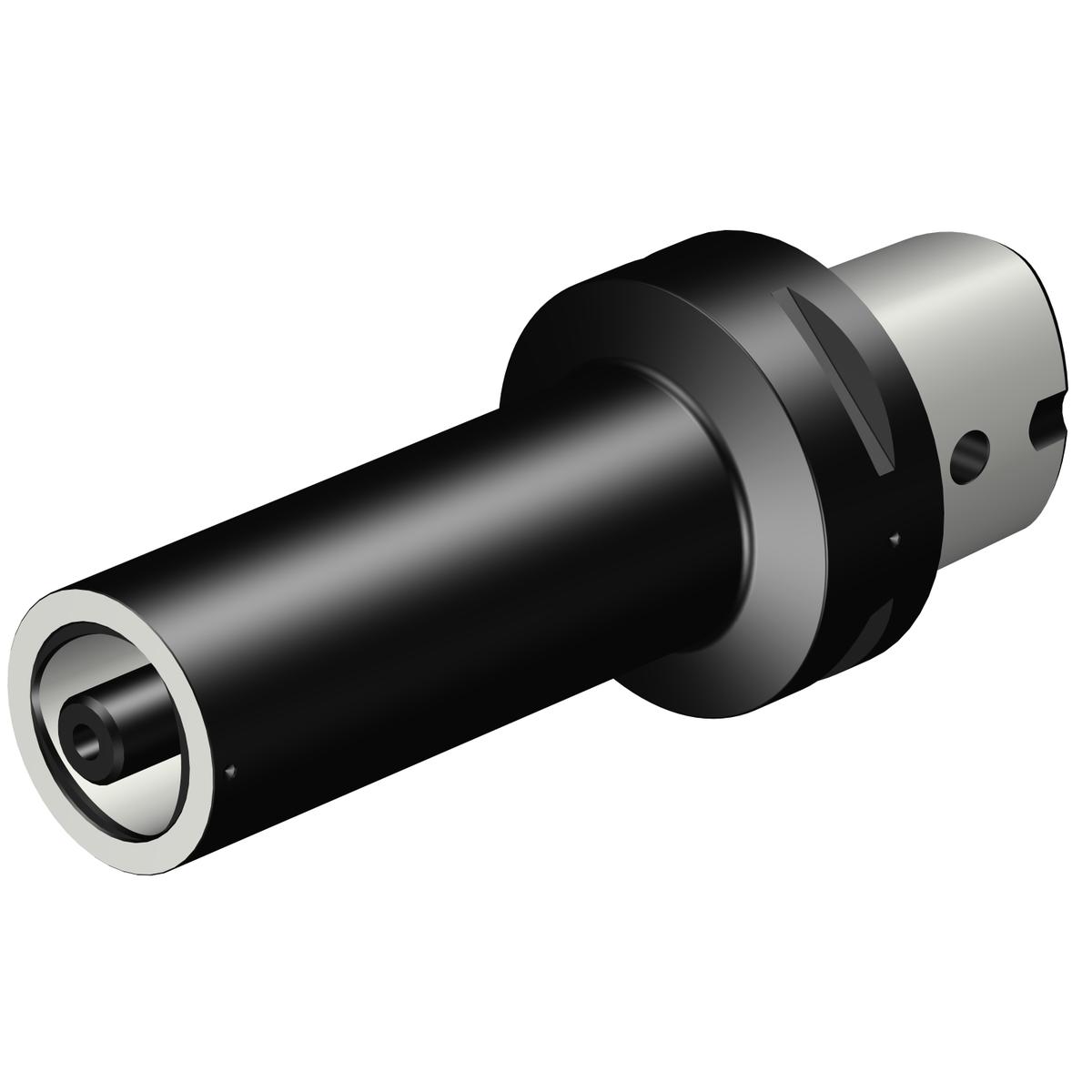

Sandvik Coromant 6763473
Specifications
| Shank Diameter (Metric) | 100 |
|---|---|
| Material | Steel |
| Shank Diameter (Inch) | 3.94 |
| Series | Coromant Capto |
| Short Description | Coromant Capto® reduction adaptor |
| Unit Of Measure | Metric |
| Shank Diameter | 100 mm |
| Overall Length | 200 mm |
| Overall Length (Decimal) | 7.87 |
| Overall Length (Metric) | 200 |
| ANSI Code | C10-391.02-63 200 |
| Coolant Through | Yes |
| Connection Size | C10 |
| Body Diameter (Decimal) | 3.94 |
| Body Diameter (Metric) | 100 |
| Body Length (Decimal) | 6.13 |
| Body Length (Metric) | 155.8 |
| Functional Diameter (Decimal) | 2.84 |
| Functional Diameter (Metric) | 72 |
| Body Half Taper Angle | 0 degrees |
| Torque (ft lbf) | 125.386 |
| Torque (NM) | 170 |
| Coolant Pressure (Bar) | 80 |
| Coolant Entry Style Code | 3: axial concentric and radial entry |
| Coolant Exit Style Code | 1: axial concentric exit |
| Standard | ISO26623-1 |
| Balanced by Design | No |
| Data Chip Provision | No |
| Damping Property | No |
| Country of Origin | Germany |
| Base Item Number | 1147 |
| Body Length (Inch) | 6.13 |
| Coolant Pressure (lbf/in2) | 1160.3 |
| Kappa (Z-Axis Rot) | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 14.725 LB |
