Sandvik Coromant
6765425
Sandvik Coromant 6765425
Specifications
| Coating/Finish | TiAlN+TiN |
|---|---|
| Overall Length (Metric) | 57.25 |
| Coolant Fed | No |
| Material | Carbide |
| Overall Length (Inch) | 2.25 |

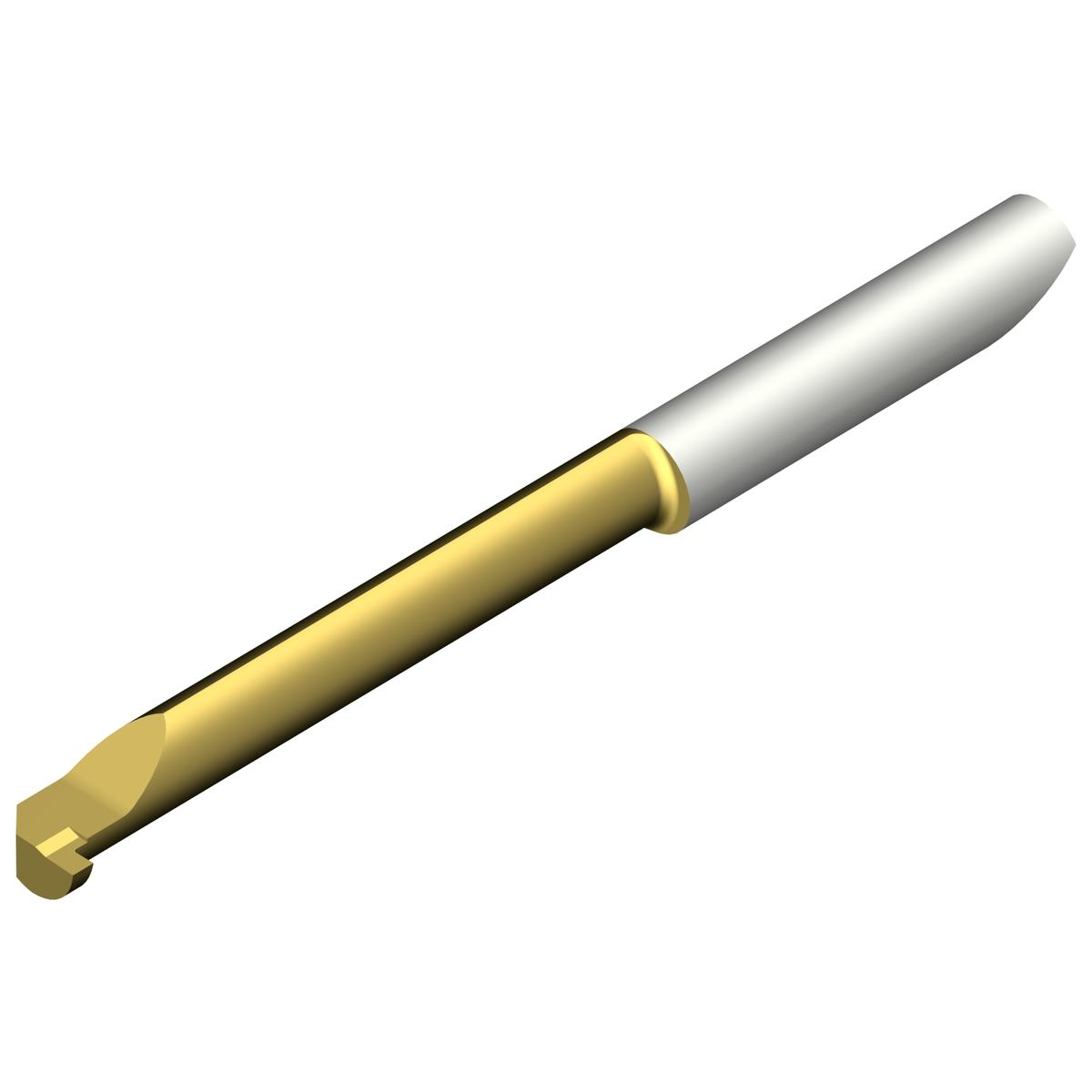

| Short Description | CoroTurn® XS solid carbide tool for grooving |
| Series | CoroTurn XS |
| Unit Of Measure | Metric |
| Direction Of Hand | Right |
| Min. Bore Diameter (Decimal) | 0.21 |
| Min. Bore Diameter (Metric) | 5.2 |
| Connection Diameter (Decimal) | 0.2 |
| Connection Diameter (Metric) | 5 |
| Usable Length (Decimal) | 1.38 |
| Usable Length (Metric) | 35 |
| Cutting Width | 1.17 mm |
| Cutting Width (Decimal) | 0.05 |
| ANSI Code | CXS-05G117-5235R 1025 |
| Body Width (Decimal) | 0.15 |
| Body Width (Metric) | 3.75 |
| Overall Width (Decimal) | 0.1 |
| Overall Width (Metric) | 2.45 |
| Coating Process Type | PVD |
| Grade | 1025 |
| ISO Material Classification Level All | PMKNS |
| Chamfer Width Left Hand (Decimal) | 0.002 |
| Chamfer Width Left Hand (Metric) | 0.04 |
| Chamfer Width Right Hand (Decimal) | 0.002 |
| Chamfer Width Right Hand (Metric) | 0.04 |
| Cutting Width Upper Tolerance (Decimal) | 0.001969 |
| Cutting Width Upper Tolerance (Metric) | 0.05 |
| Country of Origin | United Kingdom |
| Base Item Number | 1055 |
| Cutting Width (Inch) | 0.05 |
| Max. Cutting Depth (Decimal) | 0.04 |
| Max. Cutting Depth (Metric) | 1 |
| Max. Overhang (Decimal) | 1.5 |
| Max. Overhang (Metric) | 38 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.046 LB |
