Sandvik Coromant
6765614

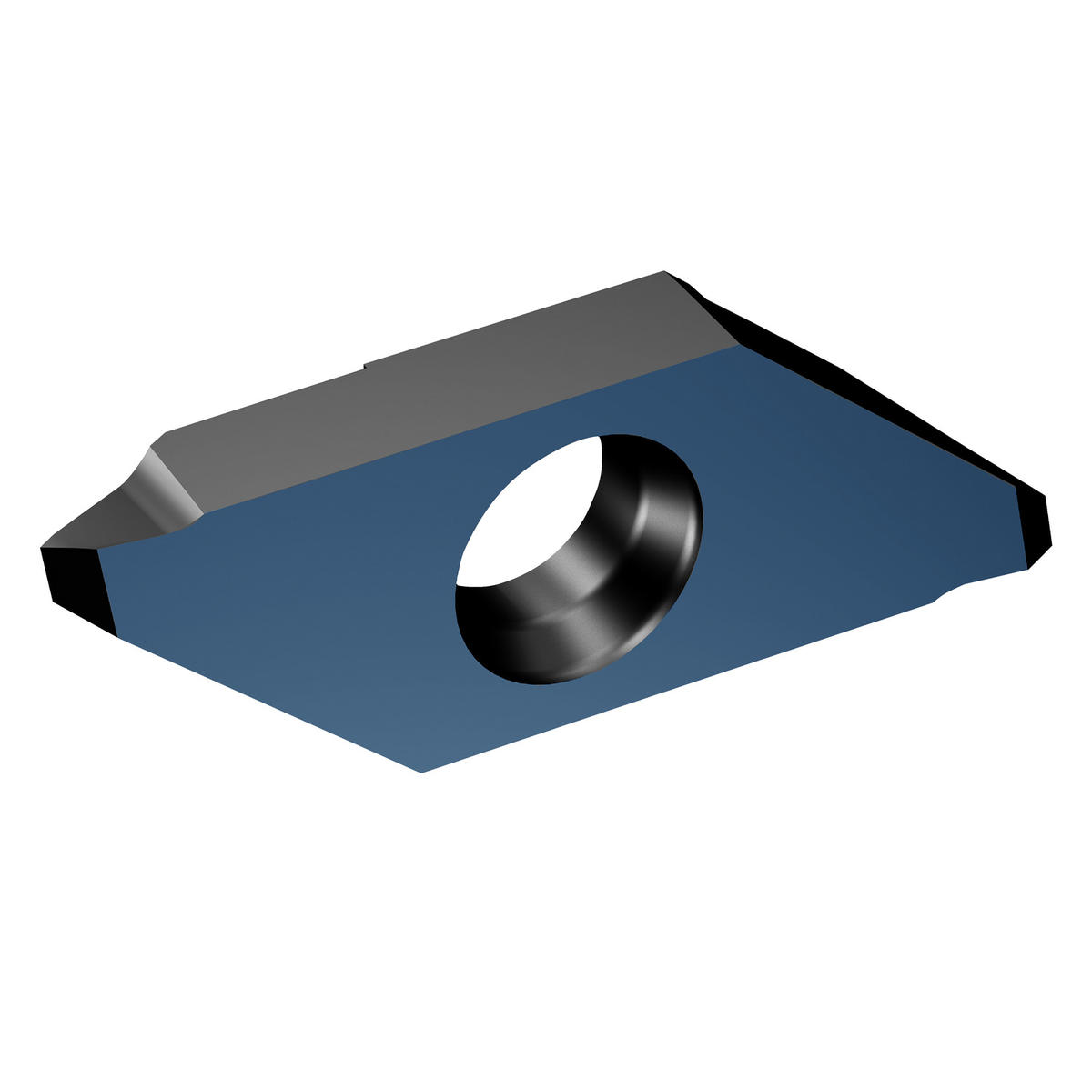

Sandvik Coromant 6765614
Specifications
| Insert Style | MATR |
|---|---|
| Material | WC or Cermet |
| Coating/Finish | TiAlN |
| Short Description | CoroCutĀ® XS insert for thread turning |
| Unit Of Measure | Metric |
| Grade | 1105 |
| Series | CoroCut XS |
| Size | 3R |
| Thread Type | External |
| Thread Form | UN60 |
| Threads per Inch | 64 |
| Thread Profile Type | Full |
| Thickness | 3.18 mm |
| Thickness (Decimal) | 0.13 |
| Thickness (Metric) | 3.18 |
| ANSI Code | MATR 3-UN01F-640-A 1105 |
| ISO Code | MATR 3-UN01F-640-A 1105 |
| Hand of Insert | Right |
| Corner Radius (Decimal) | 0.002 |
| Corner Radius (Metric) | 0.06 |
| Fixing Hole Diameter (Decimal) | 0.19 |
| Fixing Hole Diameter (Metric) | 4.8 |
| Coating Process Type | PVD |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Thread Tolerance Class | 2A |
| Theoretical Thread Height (Decimal) | 0.01 |
| Theoretical Thread Height (Metric) | 0.31 |
| Thread Height Difference (Decimal) | 0.002 |
| Thread Height Difference (Metric) | 0.06 |
| Profile Distance EX (Decimal) | 0.015 |
| Profile Distance EX (Metric) | 0.38 |
| Application | Turning, Threading |
| ISO Material Classification | PMNS |
| Country of Origin | Japan |
| Base Item Number | 1070 |
| number of Teeth | 1 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.013 LB |
| Height Packed Product Metric | 13.5 mm |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | MATR3-UN01F-640-A1105 |
| Insert Size | 3R |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | MATR 3-UN01F-640-A 1105 |
| Length Packed Product Imperial | 3.74 inch |
