Sandvik Coromant
6766788
Sandvik Coromant 6766788
Specifications
| Overall Length (Metric) | 126 |
|---|---|
| Series | CoroTurn TR |
| Tool Lead Angle | -3 degrees |
| Overall Length (Inch) | 4.96 |
| Insert Style | QS-TR-D..JCR/L..HP (INCH) |

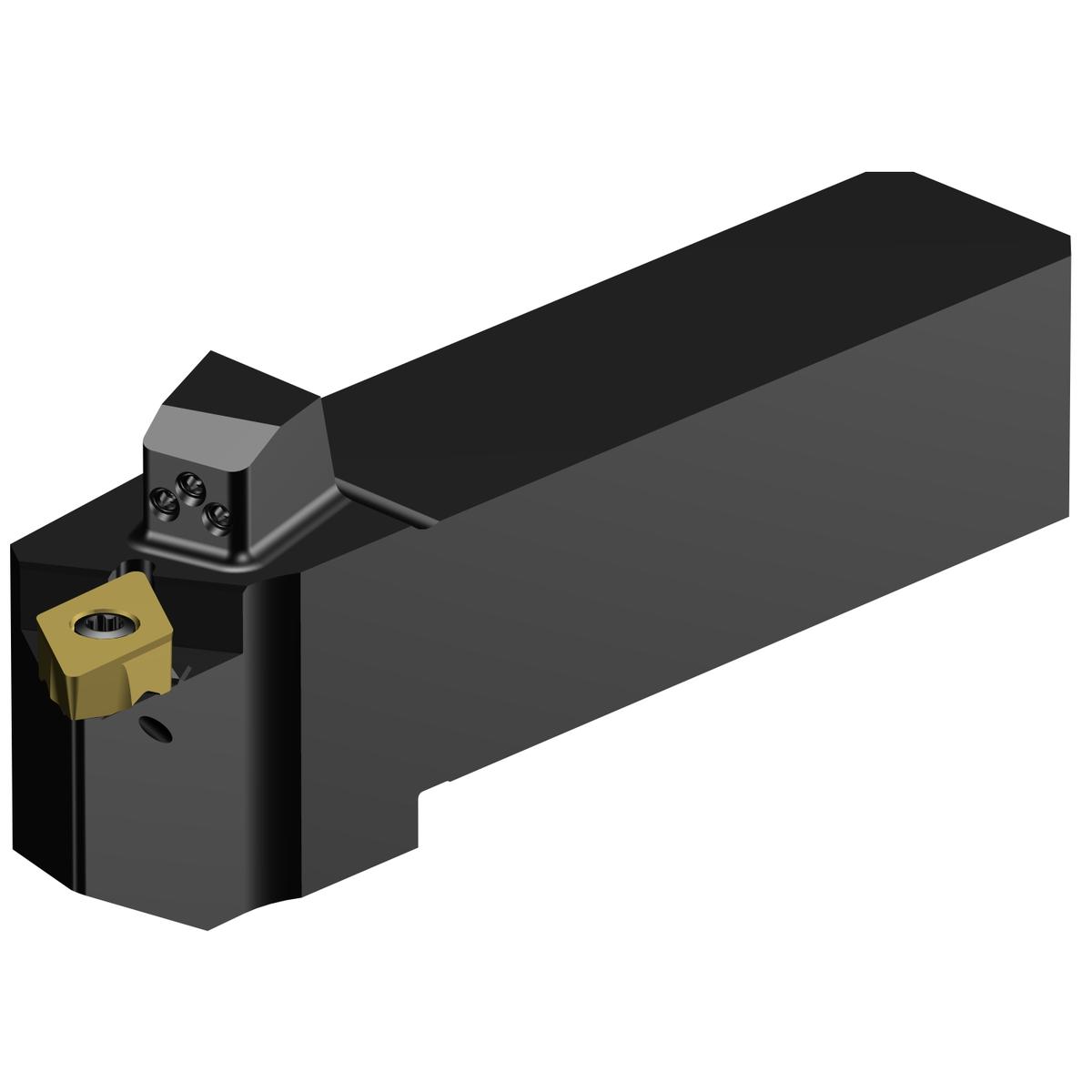

| Short Description | CoroTurn® TR QS shank tool for turning |
| Direction Of Hand | Right |
| Unit Of Measure | Imperial |
| Material | Steel |
| Shank Width | 1 Inch |
| Orthogonal Rake Angle | 0 degrees |
| Shank Width (Decimal) | 1.06 |
| Shank Width (Metric) | 25.4 |
| Shank Height (Metric) | 25.4 |
| Coolant Entry Thread Size | G1/8-28 |
| Inclination Angle | 0 degrees |
| Overall Height (Metric) | 25.4 |
| Overall Height (Decimal) | 1 |
| Overall Length | 4.96 Inch |
| Insert Compatibility | TR-DC1308 |
| ANSI Code | QS-TR-D13JCR 16HP |
| Coolant Through | Yes |
| Overall Width (Decimal) | 1.02 |
| Overall Width (Metric) | 25.91 |
| Shank Height (Decimal) | 1 |
| Coolant Pressure | 2175.57 lbf/in2 |
| Head Bottom Offset Length (Decimal) | 1.65 |
| Head Bottom Offset Length (Metric) | 42 |
| Clamping Type Code | Screw/Clamp |
| Torque | 3 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 93 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 8: Decentral Focused Exit With Nozzles |
| Country of Origin | Sweden |
| Base Item Number | 1056 |
| Max. Overhang (Decimal) | 2.64 |
| Max. Overhang (Metric) | 67 |
| Maximum Ramping Angle | 27 degrees |
| Min. Overhang (Decimal) | 1.65 |
| Min. Overhang (Metric) | 42 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.237 LB |
