Sandvik Coromant
6770730

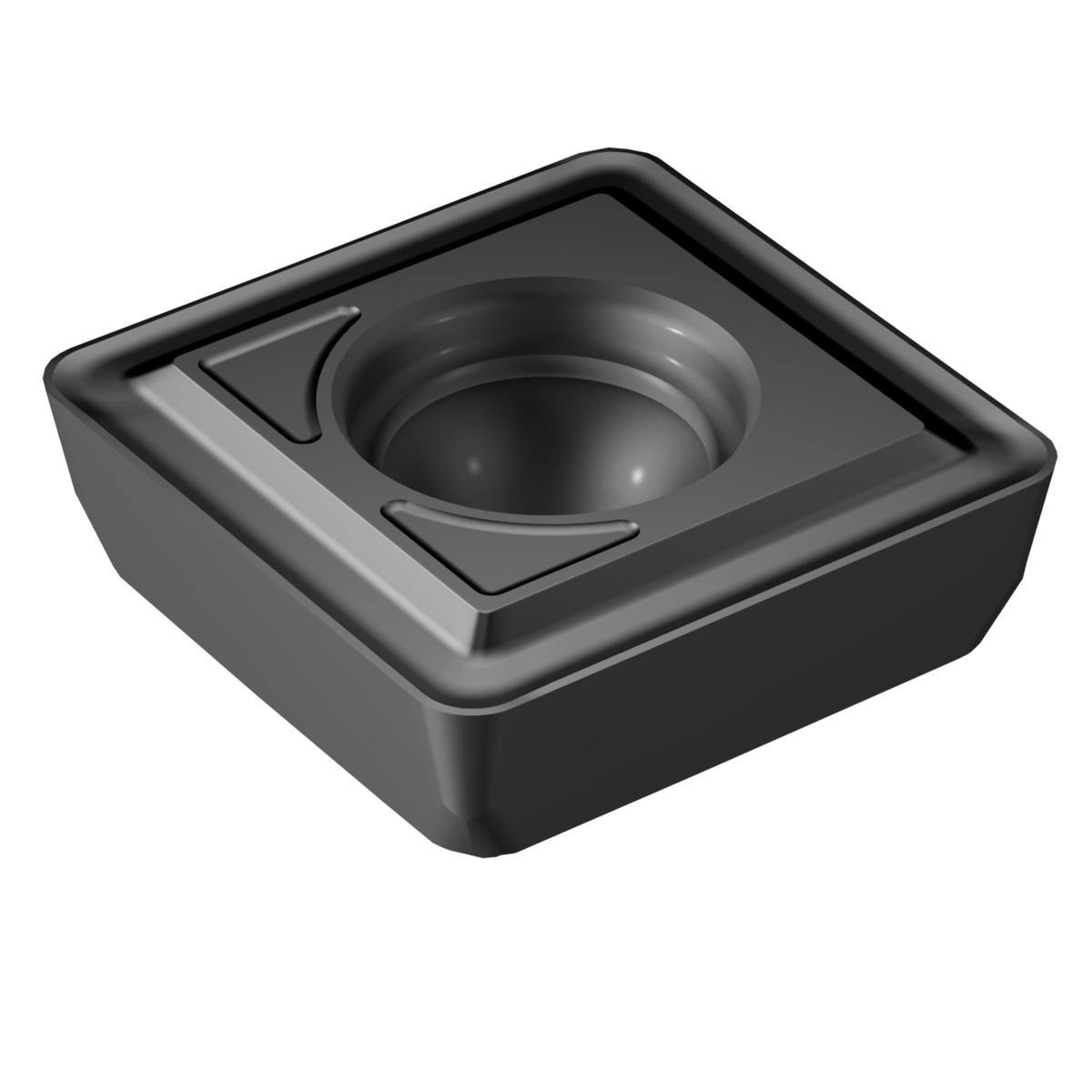

Sandvik Coromant 6770730
Specifications
| Corner Radius (Metric) | 0.5 |
|---|---|
| Type | Asymmetrical Point |
| Series | CoroDrill 880 |
| Coating/Finish | TiAlN |
| Material | WC or Cermet |
| Corner Radius (Inch) | 0.02 |
| Chip Breaker Type | GM |
| Unit Of Measure | Metric |
| Style | 880 |
| Thickness | 2.6 mm |
| Grade | 4344 |
| Thickness (Metric) | 2.6 |
| Short Description | CoroDrill® 880 insert for drilling |
| Size | 303 |
| Shape | Square |
| Inscribed Circle Diameter | 6 mm |
| Corner Radius | 0.5 mm |
| Inscribed Circle Diameter (Decimal) | 0.24 |
| Inscribed Circle Diameter (Metric) | 6 |
| Thickness (Decimal) | 0.1 |
| ANSI Code | 880-03 03 W05H-P-GM 4344 |
| ISO Code | 880-03 03 W05H-P-GM 4344 |
| Fixing Hole Diameter (Decimal) | 0.1 |
| Fixing Hole Diameter (Metric) | 2.5 |
| Coating Process Type | PVD |
| Operation Type | Medium Feed |
| Mounting Style | Screw/Clamp |
| Rake Angle | 15 degrees |
| Substrate Type | Carbide |
| Number of Cutting Edges | 4 |
| Wiper Edge Property | Yes |
| Insert Usage Code | Peripheral |
| Application | Drilling, Indexable |
| ISO Material Classification | PMKNSH |
| Country of Origin | Japan |
| Base Item Number | 2013 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.003 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | 880 |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | 880-0303W05H-P-GM4344 |
| Insert Size | 0303 |
| Length Packed Product Metric | 95 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | 880-03 03 W05H-P-GM 4344 |
| Length Packed Product Imperial | 3.74 inch |
