Sandvik Coromant
6798939

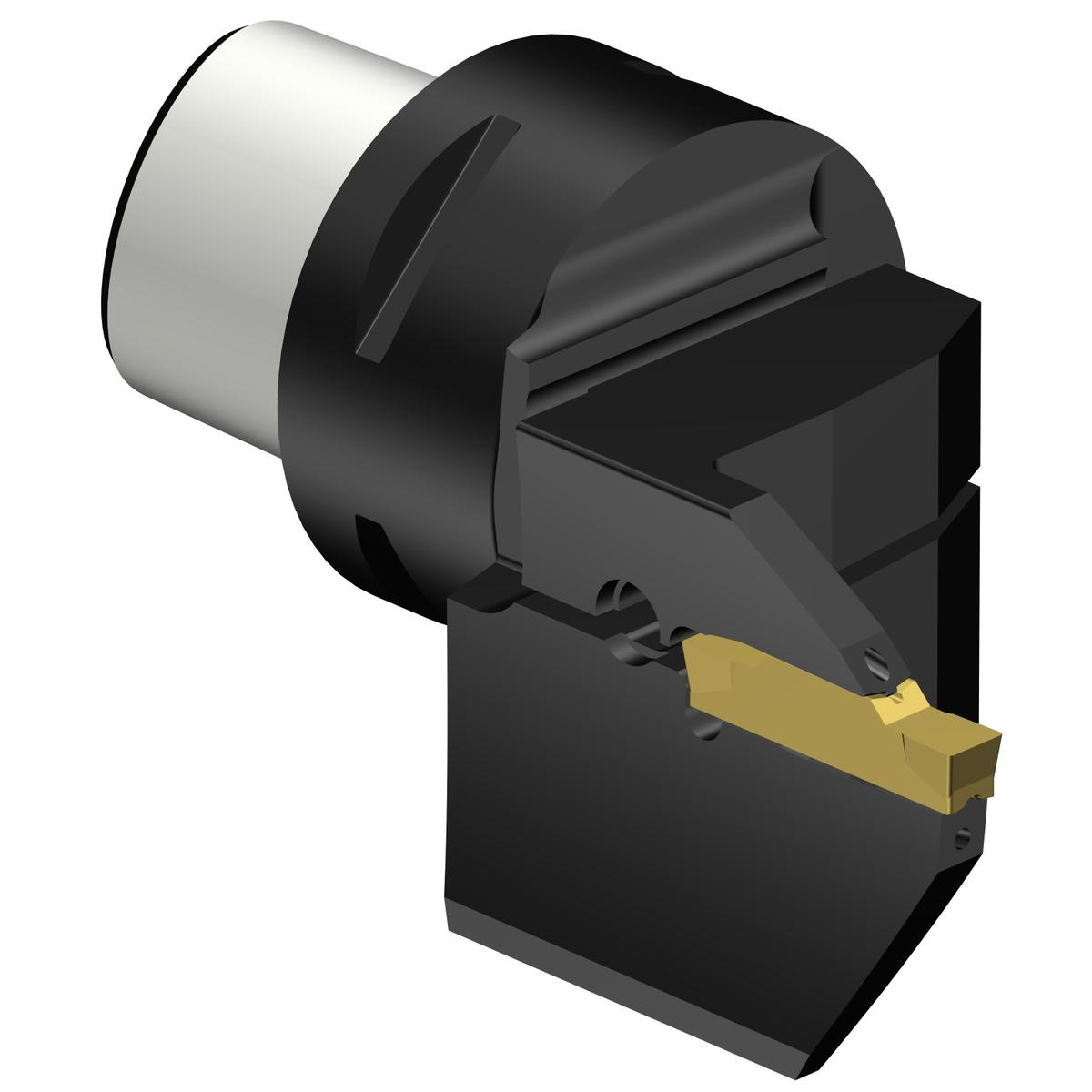

Sandvik Coromant 6798939
Specifications
| Center to Cutting Edge (Inch) | 1.06 |
|---|---|
| Coolant Fed | Yes |
| Size | C4 |
| Series | CoroCut 1-2 |
| Center to Cutting Edge (Metric) | 27 |
| Short Description | CoroCut® 1-2 cutting unit for face grooving |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 27 mm |
| Insert Style | N123J2-0500-0004-TF |
| ANSI Code | C4-LF123J25CE-120B |
| Connection Diameter (Decimal) | 1.58 |
| Connection Diameter (Metric) | 40 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 2175.57 lbf/in2 |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 1073 |
| Max. Axial Groove Outside Diameter (Decimal) | 7.09 |
| Max. Axial Groove Outside Diameter (Metric) | 180 |
| Max. Cutting Depth (Decimal) | 0.98 |
| Max. Cutting Depth (Metric) | 25 |
| Max. Hole Depth | 70 mm |
| Max. Hole Depth (Decimal) | 2.76 |
| Max. Hole Depth (Metric) | 70 |
| Max. Overhang (Decimal) | 2.76 |
| Max. Overhang (Metric) | 70 |
| Min. Axial Groove Inside Diameter (Decimal) | 4.72 |
| Min. Axial Groove Inside Diameter (Metric) | 120 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.966 LB |
| Height Packed Product Metric | 75 mm |
| Height Packed Product Imperial | 2.953 inch |
| ISO Code (packed) | C4-LF123J25CE-120B |
| Length Packed Product Metric | 107 mm |
| Life Cycle State | 30 |
| ISO Code (unpacked) | C4-LF123J25CE-120B |
| Length Packed Product Imperial | 4.213 inch |
