Sandvik Coromant
6799012
Sandvik Coromant 6799012
Specifications
| Center to Cutting Edge (Inch) | 1.54 |
|---|---|
| Coolant Fed | Yes |
| Size | C6 |
| Series | CoroCut 1-2 |
| Center to Cutting Edge (Metric) | 39 |

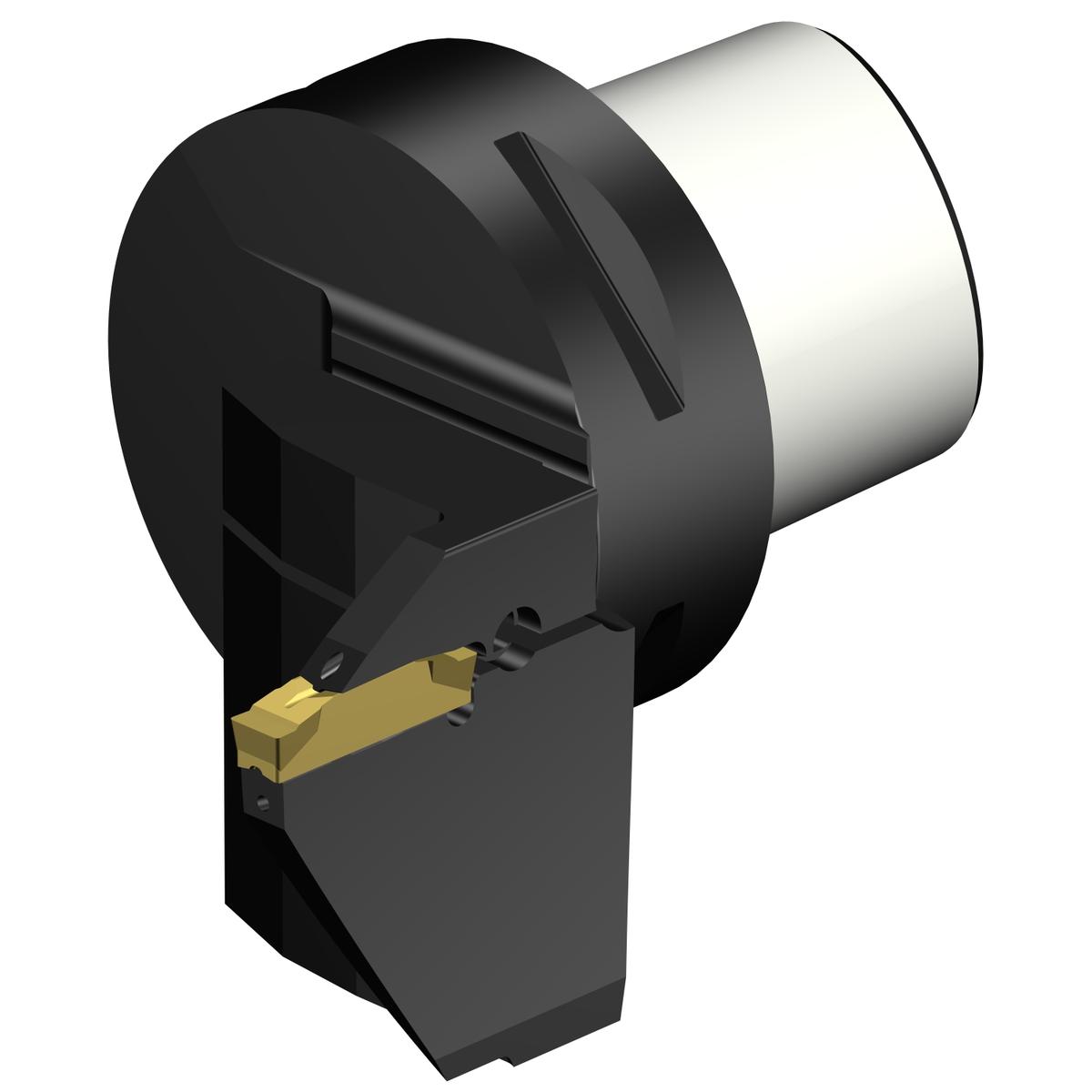

| Short Description | CoroCut® 1-2 cutting unit for face grooving |
| Direction Of Hand | Right |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 39 mm |
| Insert Style | N123K2-0600-0004-TF |
| ANSI Code | C6-RF123K25CE-168B |
| Connection Diameter (Decimal) | 2.48 |
| Connection Diameter (Metric) | 63 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 2175.57 lbf/in2 |
| Workpiece Side Body Angle | 0 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 1073 |
| Max. Axial Groove Outside Diameter (Decimal) | 15.75 |
| Max. Axial Groove Outside Diameter (Metric) | 400 |
| Max. Cutting Depth (Decimal) | 0.98 |
| Max. Cutting Depth (Metric) | 25 |
| Max. Hole Depth | 70 mm |
| Max. Hole Depth (Decimal) | 2.76 |
| Max. Hole Depth (Metric) | 70 |
| Max. Overhang (Decimal) | 2.76 |
| Max. Overhang (Metric) | 70 |
| Min. Axial Groove Inside Diameter (Decimal) | 6.61 |
| Min. Axial Groove Inside Diameter (Metric) | 168 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 2.229 LB |
| Height Packed Product Metric | 95 mm |
| Height Packed Product Imperial | 3.74 inch |
| ISO Code (packed) | C6-RF123K25CE-168B |
| Length Packed Product Metric | 134 mm |
| Life Cycle State | 30 |
| ISO Code (unpacked) | C6-RF123K25CE-168B |
| Length Packed Product Imperial | 5.276 inch |
