Sandvik Coromant
6814413

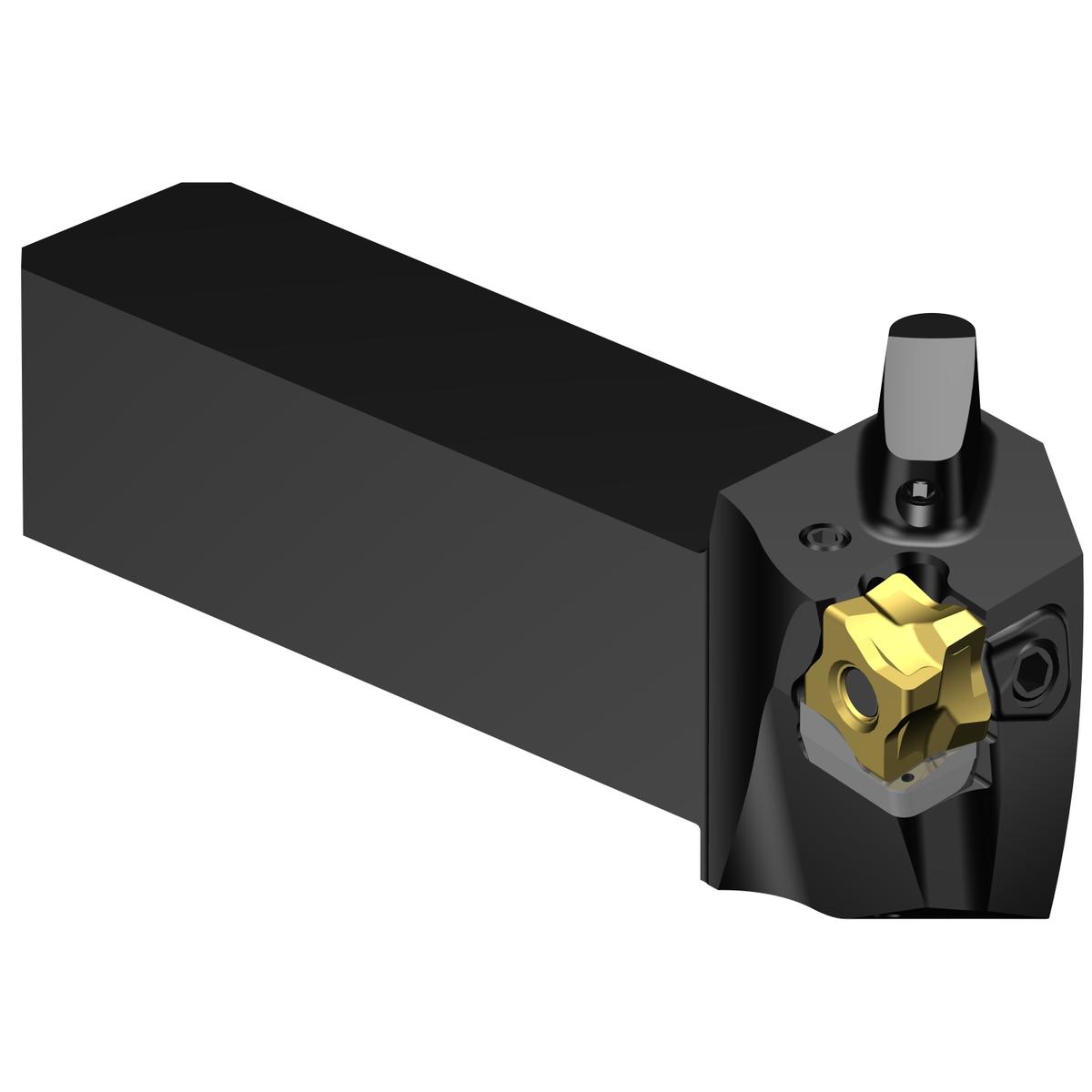

Sandvik Coromant 6814413
Specifications
| Overall Length (Metric) | 115 |
|---|---|
| Series | CoroTurn 300 |
| Tool Lead Angle | -4.7 degrees |
| Overall Length (Inch) | 4.53 |
| Insert Style | QS-3-80-LR/L |
| Short Description | CoroTurn® 300 QS shank tool for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Material | Steel |
| Shank Width | 25 mm |
| Orthogonal Rake Angle | -5.5 degrees |
| Shank Width (Decimal) | 0.87 |
| Shank Width (Metric) | 25 |
| Shank Height (Metric) | 25 |
| Coolant Entry Thread Size | G1/8-28 |
| Inclination Angle | -6.466 degrees |
| Overall Height (Metric) | 25 |
| Overall Height (Decimal) | 0.98 |
| Overall Length | 115 mm |
| Insert Compatibility | 3-80-101108 |
| ANSI Code | QS-3-80LL252531-10C |
| Coolant Through | Yes |
| Overall Width (Decimal) | 1.26 |
| Overall Width (Metric) | 32 |
| Shank Height (Decimal) | 0.98 |
| Coolant Pressure | 2175.57 lbf/in2 |
| Head Bottom Offset Length (Decimal) | 1.22 |
| Head Bottom Offset Length (Metric) | 31 |
| Clamping Type Code | Clamp |
| Torque | 4.5 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Tool Cutting Edge Angle | 94.7 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 8: Decentral Focused Exit With Nozzles |
| Country of Origin | Sweden |
| Base Item Number | 2075 |
| Max. Overhang (Decimal) | 2.21 |
| Max. Overhang (Metric) | 56 |
| Maximum Ramping Angle | 0 degrees |
| Min. Overhang (Decimal) | 1.22 |
| Min. Overhang (Metric) | 31 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 1.206 LB |
