Sandvik Coromant
6814421

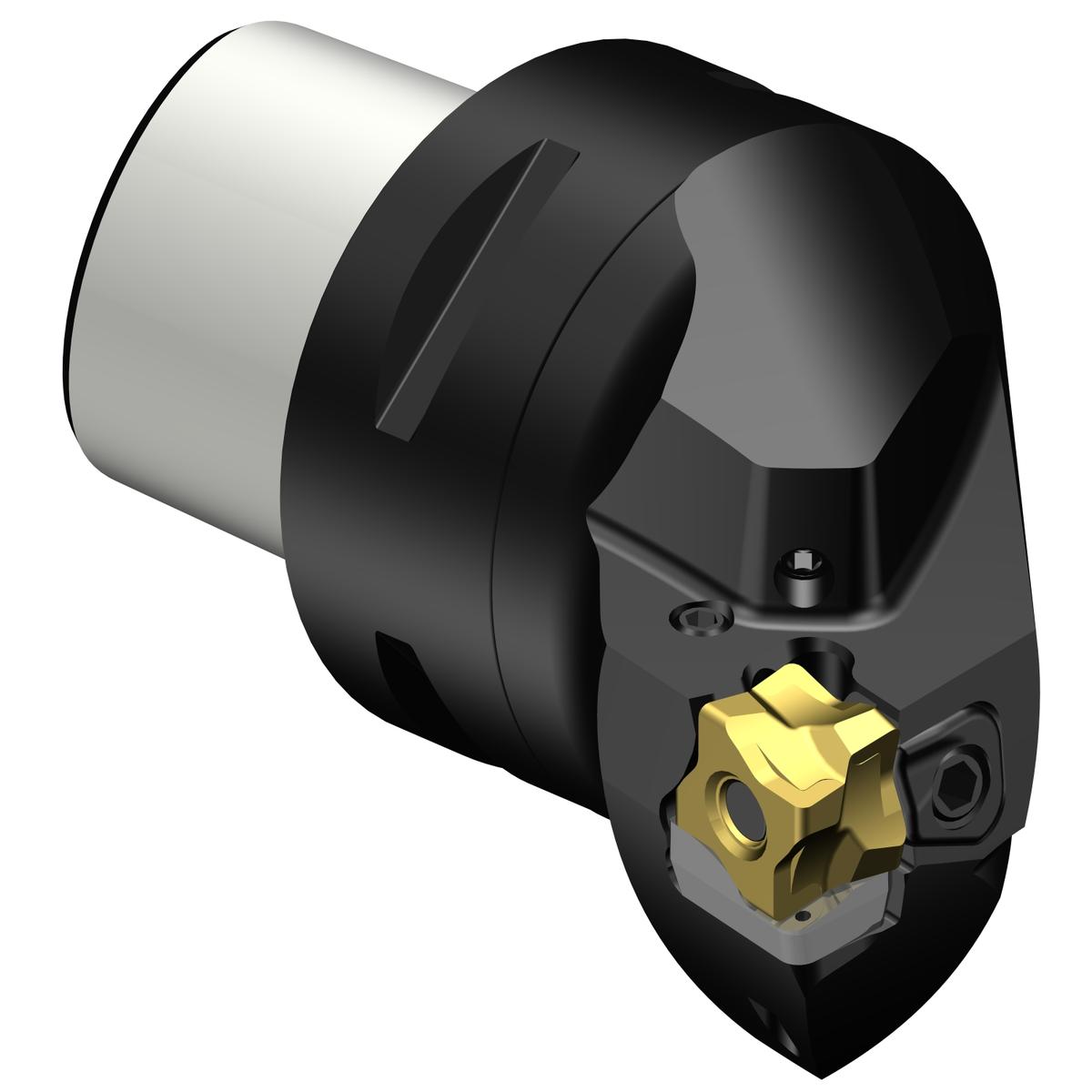

Sandvik Coromant 6814421
Specifications
| Center to Cutting Edge (Inch) | 1.38 |
|---|---|
| Material | Steel |
| Coolant Fed | Yes |
| Bore Diameter (Inch) | 3.94; 6.69 |
| Size | C5 |
| Series | CoroTurn 300 |
| Bore Diameter (Metric) | 100; 170 |
| Center to Cutting Edge (Metric) | 35 |
| Short Description | CoroTurn® 300 cutting unit for turning |
| Direction Of Hand | Left |
| Unit Of Measure | Metric |
| Center to Cutting Edge | 35 mm |
| Insert Style | 3-80-101108 |
| ANSI Code | C5-3-80-LL35060-10C |
| Connection Diameter (Decimal) | 1.97 |
| Connection Diameter (Metric) | 50 |
| Clamping Type Code | Clamp |
| Coolant Pressure | 2175.57 lbf/in2 |
| Torque | 4.5 Nm |
| Machine Side Body Angle | 0 degrees |
| Workpiece Side Body Angle | 0 degrees |
| Inclination Angle | -6.466 degrees |
| Orthogonal Rake Angle | -5.5 degrees |
| Tool Cutting Edge Angle | 94.7 degrees |
| Tool Lead Angle | -4.7 degrees |
| Coolant Entry Style Code | 3: Axial Concentric and Radial Entry |
| Coolant Exit Style Code | 8: Decentral Focused Exit With Nozzles |
| Country of Origin | Sweden |
| Base Item Number | 2075 |
| Max. Hole Depth | 60 mm |
| Max. Hole Depth (Decimal) | 2.36 |
| Max. Hole Depth (Metric) | 60 |
| Max. Overhang (Decimal) | 2.36 |
| Max. Overhang (Metric) | 60 |
| Maximum Ramping Angle | 0 degrees |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 1.64 LB |
