Sandvik Coromant
6838597

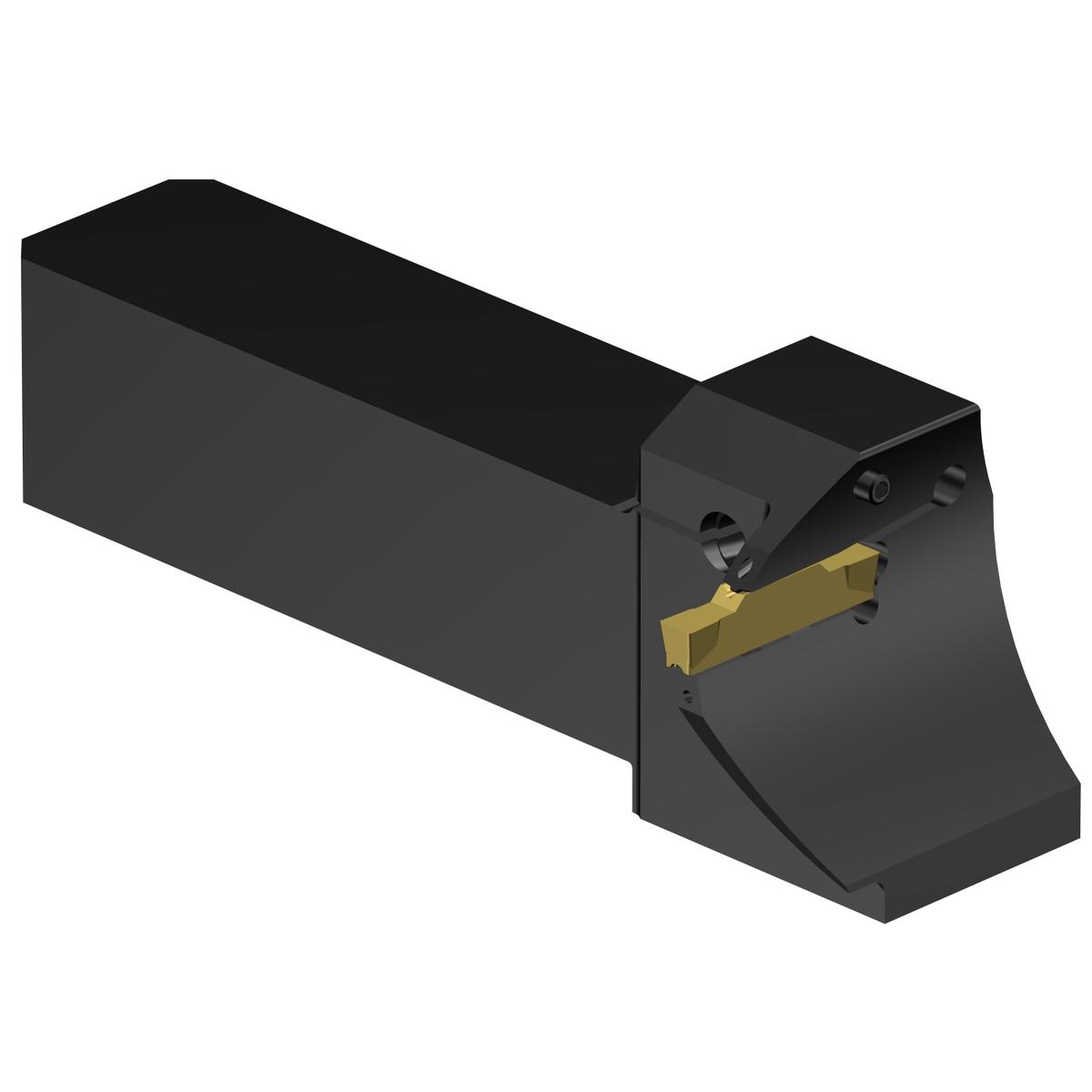

Sandvik Coromant 6838597
Specifications
| Overall Length (Metric) | 106 |
|---|---|
| Series | CoroCut 1-2 |
| Overall Length (Inch) | 4.17 |
| Insert Style | QS-R/LG123..C..E..B (INCH) |
| Short Description | CoroCut® 1-2 QS shank tool for face grooving |
| Direction Of Hand | Left |
| Unit Of Measure | Imperial |
| Shank Width | 1 Inch |
| Shank Width (Decimal) | 1.06 |
| Shank Width (Metric) | 25.4 |
| Shank Height (Metric) | 25.4 |
| Coolant Entry Thread Size | G1/8-28 |
| Overall Height (Metric) | 25.4 |
| Overall Height (Decimal) | 1 |
| Overall Length | 4.17 Inch |
| Insert Compatibility | N123H2-0400-0004-TF |
| ANSI Code | QS-LG123H050C16E-052B |
| Coolant Through | Yes |
| Overall Width (Decimal) | 1.58 |
| Overall Width (Metric) | 40.1 |
| Shank Height (Decimal) | 1 |
| Coolant Pressure | 2175.57 lbf/in2 |
| Clamping Type Code | Clamp |
| Workpiece Side Body Angle | 90 degrees |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Coolant Exit Style Code | 3: Axial Inclined Exit |
| Country of Origin | Sweden |
| Base Item Number | 1073 |
| Max. Axial Groove Outside Diameter (Decimal) | 2.84 |
| Max. Axial Groove Outside Diameter (Metric) | 72 |
| Max. Cutting Depth (Decimal) | 0.5 |
| Max. Cutting Depth (Metric) | 12.7 |
| Max. Overhang (Decimal) | 1.87 |
| Max. Overhang (Metric) | 47.4 |
| Min. Axial Groove Inside Diameter (Decimal) | 2.05 |
| Min. Axial Groove Inside Diameter (Metric) | 52 |
| Min. Overhang (Decimal) | 0.87 |
| Min. Overhang (Metric) | 22 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 1.246 LB |
