Sandvik Coromant
6851090
Sandvik Coromant 6851090
Specifications
| Shank Diameter (Metric) | 11.7 |
|---|---|
| Series | CoroMill 390 |
| Direction Of Hand | Right |
| Overall Length (Inch) | 0.79 |
| Material | Steel |
| Shank Diameter (Inch) | 0.46 |
| Cutting Diameter (Metric) | 12 |
| Cutting Diameter (Inch) | 0.47 |
| Overall Length (Metric) | 20 |

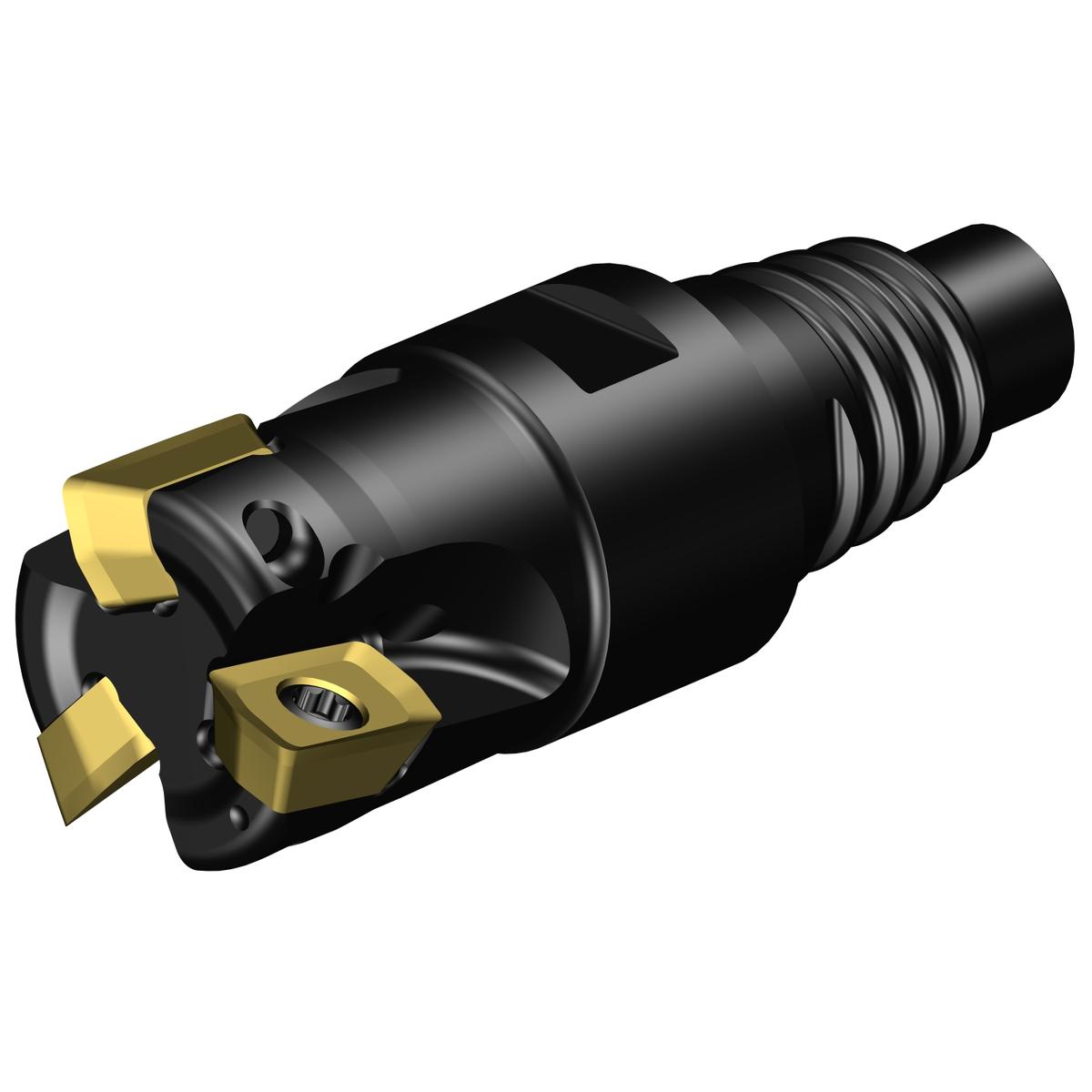

| Short Description | CoroMill® 390 square shoulder milling cutter |
| Unit Of Measure | Metric |
| Cutting Diameter | 12 mm |
| Shank Diameter | 11.7 mm |
| ANSI Code | R390-012EH12-07M |
| Coolant Through | Yes |
| Usable Length (Decimal) | 0.47 |
| Usable Length (Metric) | 11.9 |
| Body Diameter (Decimal) | 0.45 |
| Body Diameter (Metric) | 11.3 |
| Connection Size | E12 |
| Body Length (Decimal) | 0.47 |
| Body Length (Metric) | 11.9 |
| Functional Diameter (Decimal) | 0.36 |
| Functional Diameter (Metric) | 9.15 |
| Center Cutting Capability | No |
| Tool Cutting Edge Angle | 90 degrees |
| Clamping Type | Screw/Clamp |
| Torque | 0.5 Nm |
| Coolant Pressure | 145.038 lbf/in2 |
| Coolant Entry Style Code | 1: Axial Concentric Entry |
| Cutting Pitch Differential | Yes |
| Damping Property | No |
| Country of Origin | Sweden |
| Base Item Number | 1003 |
| Body Length (Inch) | 0.47 |
| Max. Depth Of Cut | 2 mm |
| Max. Depth Of Cut (Decimal) | 0.08 |
| Max. Depth Of Cut (Metric) | 2 |
| Max. Plunge Depth (Decimal) | 0.02 |
| Max. Plunge Depth (Metric) | 0.5 |
| Max. Rotational Speed | 46500 1/min |
| Maximum Depth Of Cut (Inch) | 0.08 |
| Maximum Depth Of Cut (Metric) | 2 |
| Maximum Ramping Angle | 5 degrees |
| Number Of Inserts | 3 |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.035 LB |
