Sandvik Coromant
6851327
Sandvik Coromant 6851327
Specifications
| Coating/Finish | Uncoated |
|---|---|
| Thickness (Metric) | 6.35 |
| Corner Radius (Metric) | 9.53 |
| Material | WC |
| Size | 64 |
| Corner Radius (Inch) | 0.38 |
| Style | RNMG |
| Thickness (Inch) | 0.25 |

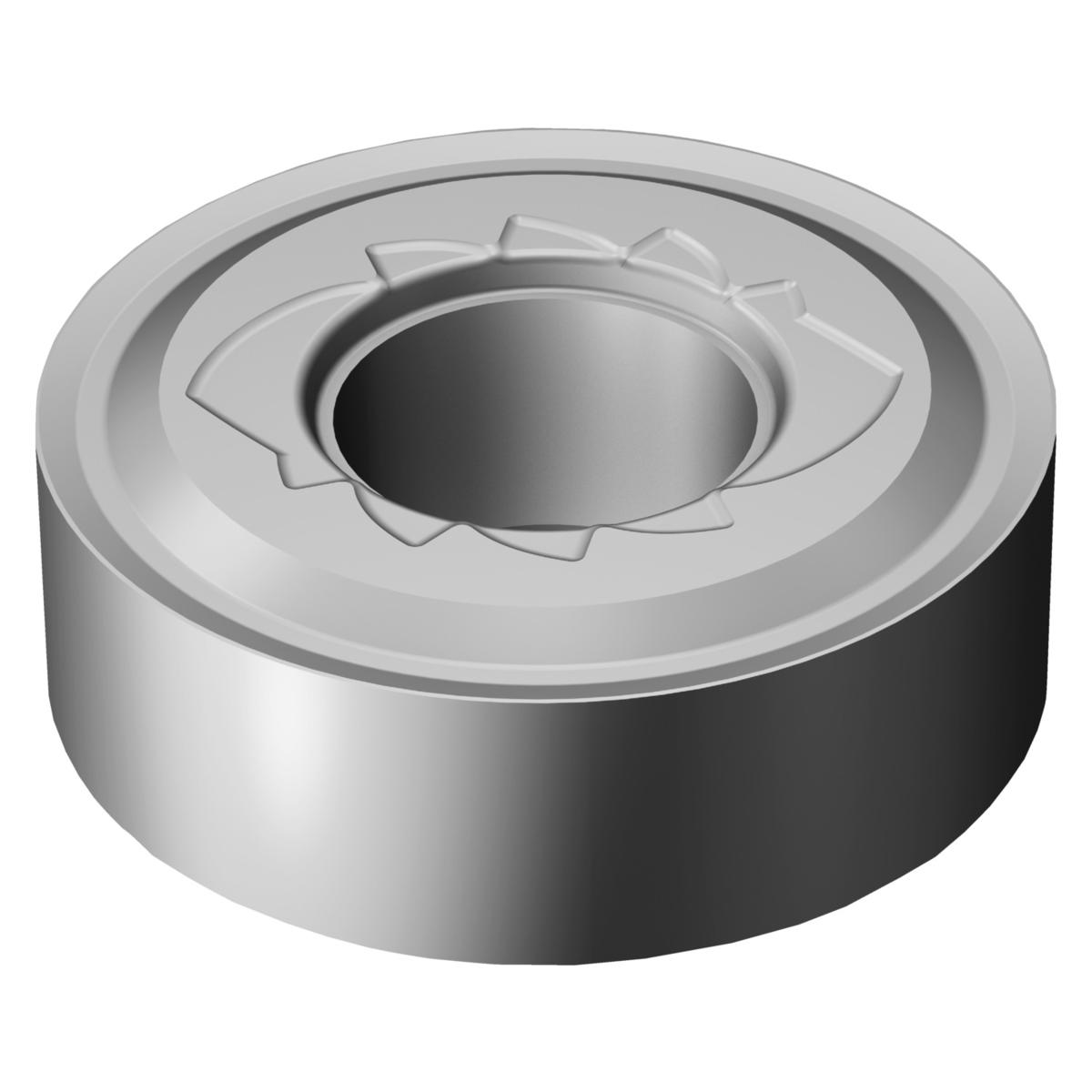

| Short Description | T-Max® P insert for turning |
| Grade | H13A |
| Unit Of Measure | Imperial |
| Inscribed Circle Diameter | 0.75 Inch |
| Inscribed Circle Diameter (Decimal) | 0.75 |
| Inscribed Circle Diameter (Metric) | 19.05 |
| Clearance Angle Major | 0 degrees |
| Shape | Round |
| Country of Origin | Sweden |
| Series | T-Max P |
| Chip Breaker Type | SM |
| ANSI Code | RNMG 64-SM H13A |
| ISO Code | RNMG 19 06 00-SM H13A |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.31 |
| Fixing Hole Diameter (Metric) | 7.93 |
| Coating Process Type | Uncoat |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 8 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | MS |
| Base Item Number | 1049 |
| Product Type | Industrial Supplies |
| Unit of Measure | Imperial |
| Weight | 0.048 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | RNMG |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | RNMG190600-SMH13A |
| Insert Size | 64 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | RNMG 19 06 00-SM H13A |
| Length Packed Product Imperial | 5.079 inch |
| EAN Code | 7323220191734 |
