Sandvik Coromant
6868318
Sandvik Coromant 6868318
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 4.76 |
| Corner Radius (Metric) | 1.19 |
| Material | WC or Cermet |
| Size | 333 |
| Corner Radius (Inch) | 0.05 |
| Style | VBMT |
| Thickness (Inch) | 0.19 |

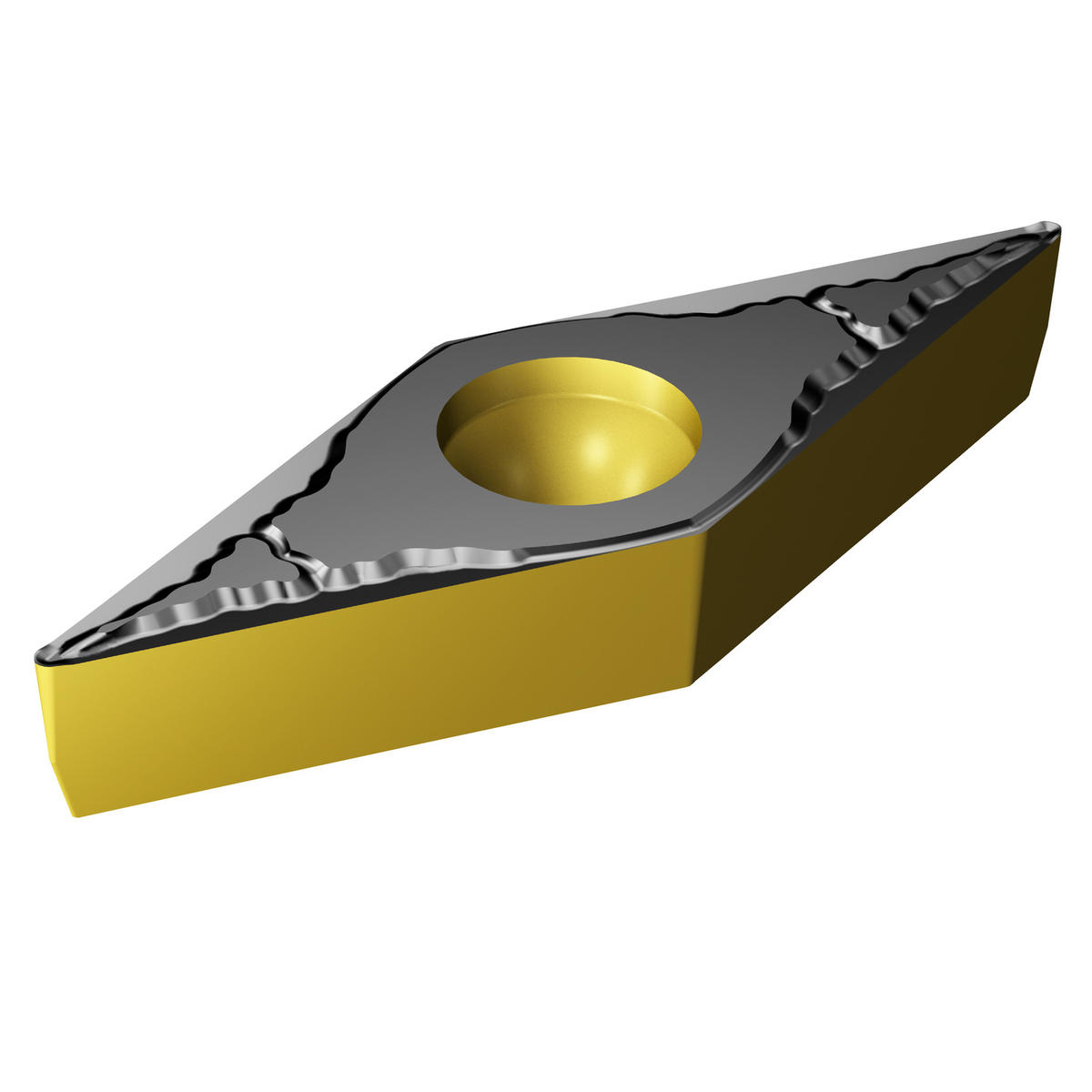

| Short Description | CoroTurn® 107 insert for turning |
| Grade | 3225 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 9.53 mm |
| Inscribed Circle Diameter (Decimal) | 0.38 |
| Inscribed Circle Diameter (Metric) | 9.53 |
| Clearance Angle Major | 5 degrees |
| Length (Decimal) | 0.61 |
| Length (Metric) | 15.41 |
| Shape | Diamond |
| Country of Origin | India |
| Series | CoroTurn 107 |
| Chip Breaker Type | KM |
| ANSI Code | VBMT 333-KM 3225 |
| ISO Code | VBMT 16 04 12-KM 3225 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.17 |
| Fixing Hole Diameter (Metric) | 4.4 |
| Coating Process Type | CVD |
| Operation Type | Medium |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 2 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | K |
| Base Item Number | 1053 |
| Length | 15.41 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.02 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | VBMT |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | VBMT160412-KM3225 |
| Insert Size | 333 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | VBMT 16 04 12-KM 3225 |
| Length Packed Product Imperial | 5.079 inch |
| EAN Code | 7323220264353 |
