Sandvik Coromant
6868408

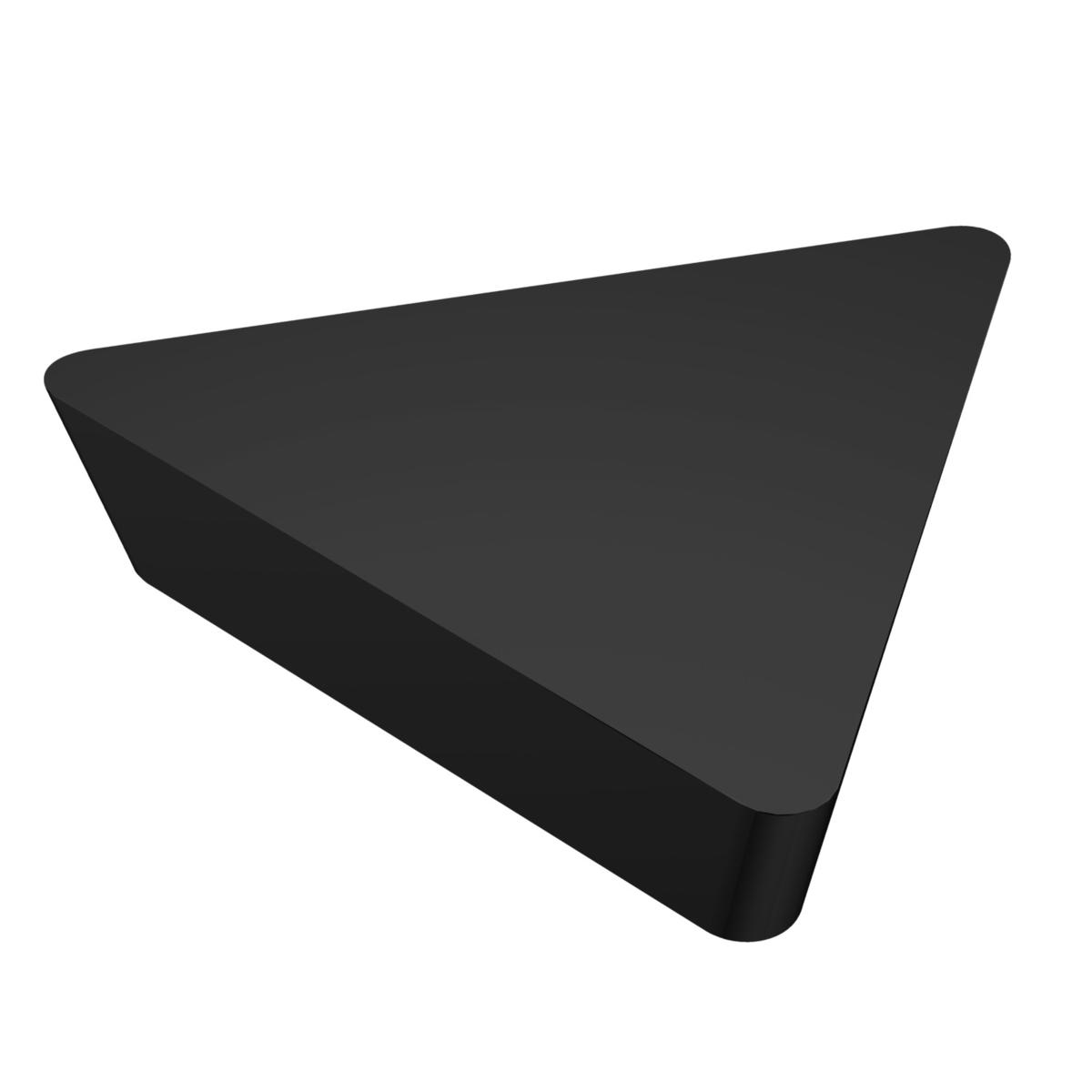

Sandvik Coromant 6868408
Specifications
| Coating/Finish | TiCN+Al2O3 |
|---|---|
| Thickness (Metric) | 4.76 |
| Corner Radius (Metric) | 1.19 |
| Material | WC or Cermet |
| Size | 433 |
| Corner Radius (Inch) | 0.05 |
| Style | TPUN |
| Thickness (Inch) | 0.19 |
| Short Description | T-Max® insert for turning |
| Grade | 3225 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 12.7 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Clearance Angle Major | 11 degrees |
| Length (Decimal) | 0.82 |
| Length (Metric) | 20.8 |
| Shape | Triangle |
| Country of Origin | India |
| Series | T-Max |
| Chip Breaker Type | PUN |
| ANSI Code | TPU 433 3225 |
| ISO Code | TPUN 22 04 12 3225 |
| Hand of Insert | Neutral |
| Coating Process Type | CVD |
| Operation Type | Finishing |
| Mounting Style | Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 3 |
| Wiper Edge Property | No |
| ISO Material Classification | K |
| Base Item Number | 1026 |
| Length | 20.8 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.027 LB |
| Height Packed Product Metric | 13.5 mm |
| Insert Style | TPUN |
| Height Packed Product Imperial | 0.531 inch |
| ISO Code (packed) | TPUN2204123225 |
| Insert Size | 433 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | TPUN 22 04 12 3225 |
| Length Packed Product Imperial | 5.079 inch |
| EAN Code | 7323220265251 |
