Sandvik Coromant
6868607
Sandvik Coromant 6868607
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 4.76 |
| Corner Radius (Metric) | 0.79 |
| Material | WC or Cermet |
| Size | 432 |
| Corner Radius (Inch) | 0.03 |
| Style | TNMA |
| Thickness (Inch) | 0.19 |

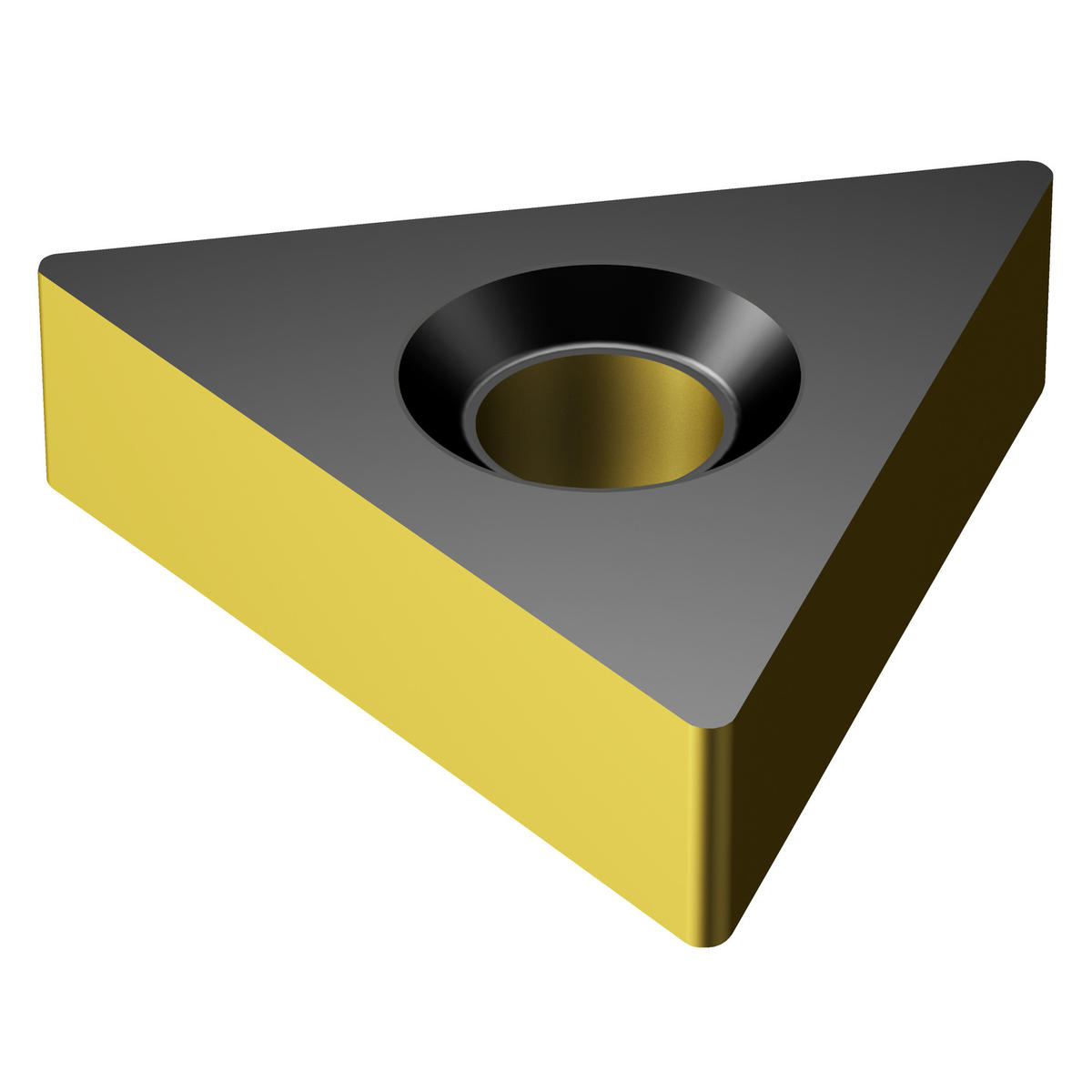

| Short Description | T-Max® P insert for turning |
| Grade | 3225 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 12.7 mm |
| Inscribed Circle Diameter (Decimal) | 0.5 |
| Inscribed Circle Diameter (Metric) | 12.7 |
| Clearance Angle Major | 0 degrees |
| Length (Decimal) | 0.84 |
| Length (Metric) | 21.2 |
| Shape | Triangle |
| Country of Origin | India |
| Series | T-Max P |
| Chip Breaker Type | KR |
| ANSI Code | TNMA 432-KR 3225 |
| ISO Code | TNMA 22 04 08-KR 3225 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.2 |
| Fixing Hole Diameter (Metric) | 5.16 |
| Coating Process Type | CVD |
| Operation Type | Roughing |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 6 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | K |
| Base Item Number | 1049 |
| Length | 21.2 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.029 LB |
| Height Packed Product Metric | 13 mm |
| Insert Style | TNMA |
| Height Packed Product Imperial | 0.512 inch |
| ISO Code (packed) | TNMA220408-KR3225 |
| Insert Size | 432 |
| Length Packed Product Metric | 129 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | TNMA 22 04 08-KR 3225 |
| Length Packed Product Imperial | 5.079 inch |
| EAN Code | 7323220267248 |
