Sandvik Coromant
6868623

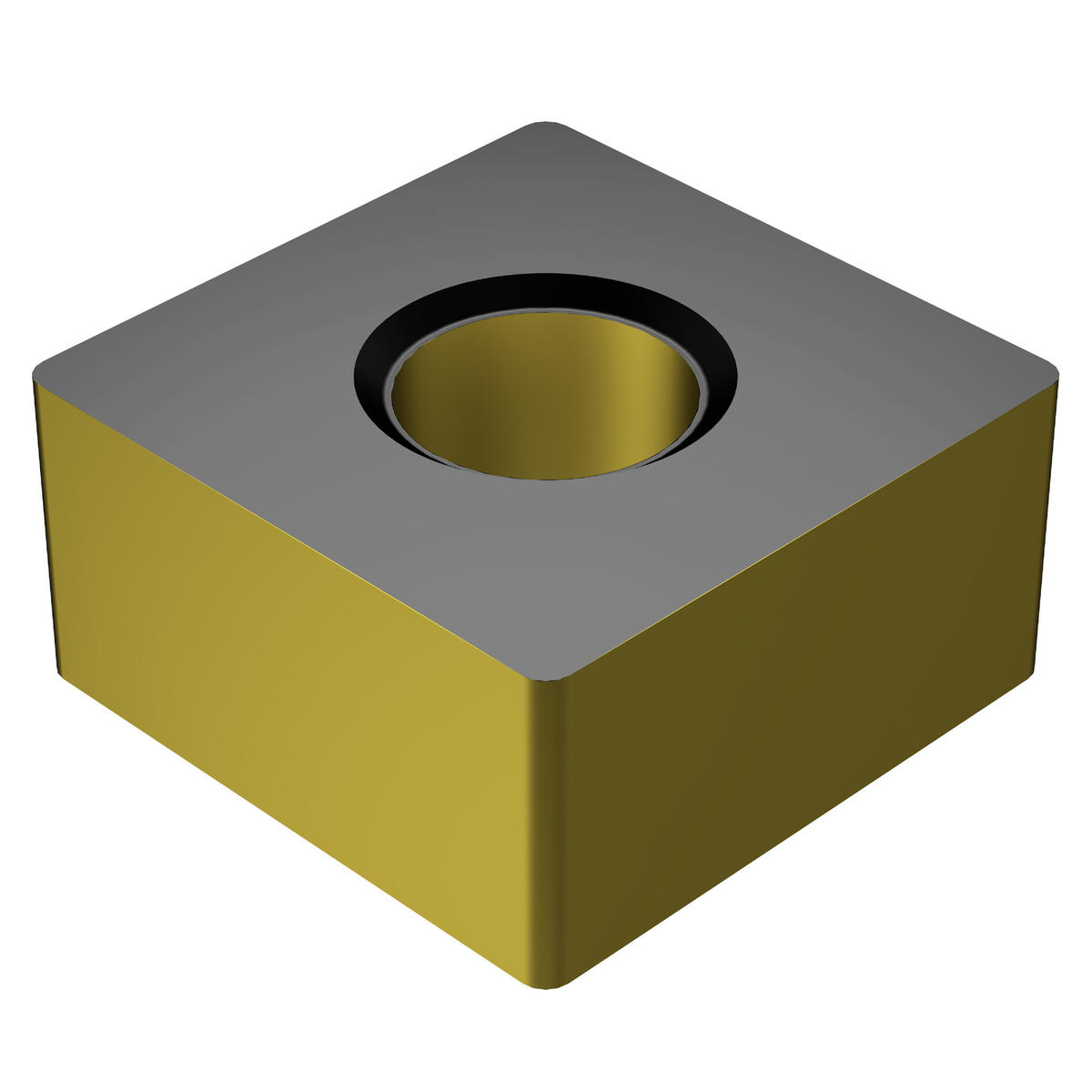

Sandvik Coromant 6868623
Specifications
| Coating/Finish | TiCN+Al2O3+TiN |
|---|---|
| Thickness (Metric) | 7.94 |
| Corner Radius (Metric) | 2.38 |
| Material | WC or Cermet |
| Size | 856 |
| Corner Radius (Inch) | 0.09 |
| Style | SNMA |
| Thickness (Inch) | 0.31 |
| Short Description | T-Max® P insert for turning |
| Grade | 3225 |
| Unit Of Measure | Metric |
| Inscribed Circle Diameter | 25.4 mm |
| Inscribed Circle Diameter (Decimal) | 1 |
| Inscribed Circle Diameter (Metric) | 25.4 |
| Clearance Angle Major | 0 degrees |
| Length (Decimal) | 0.91 |
| Length (Metric) | 23 |
| Shape | Square |
| Country of Origin | India |
| Series | T-Max P |
| Chip Breaker Type | KR |
| ANSI Code | SNMA 856-KR 3225 |
| ISO Code | SNMA 25 07 24-KR 3225 |
| Hand of Insert | Neutral |
| Fixing Hole Diameter (Decimal) | 0.36 |
| Fixing Hole Diameter (Metric) | 9.12 |
| Coating Process Type | CVD |
| Operation Type | Roughing |
| Mounting Style | Screw/Clamp |
| Substrate Type | Carbide |
| Number of Cutting Edges | 8 |
| Wiper Edge Property | No |
| Application | Turning, General |
| ISO Material Classification | K |
| Base Item Number | 1049 |
| Length | 23 mm |
| Product Type | Industrial Supplies |
| Unit of Measure | Metric |
| Weight | 0.155 LB |
| Height Packed Product Metric | 46 mm |
| Insert Style | SNMA |
| Height Packed Product Imperial | 1.811 inch |
| ISO Code (packed) | SNMA250724-KR3225 |
| Insert Size | 856 |
| Length Packed Product Metric | 77 mm |
| Life Cycle State | 20 |
| ISO Code (unpacked) | SNMA 25 07 24-KR 3225 |
| Length Packed Product Imperial | 3.031 inch |
| EAN Code | 7323220267408 |
